9
8
7
6
1
Centre legs QTY 2
2
Head rail QTY 1
3
RHS rail QTY 1
4
Slats QTY 22
5
Centre rail QTY 1

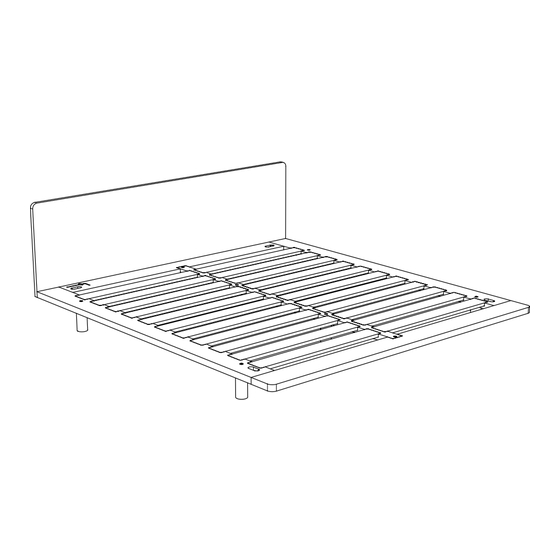

L A G O S B E D Q U E E N / K I N G
A S S E M B L Y I N S T R U C T I O N S

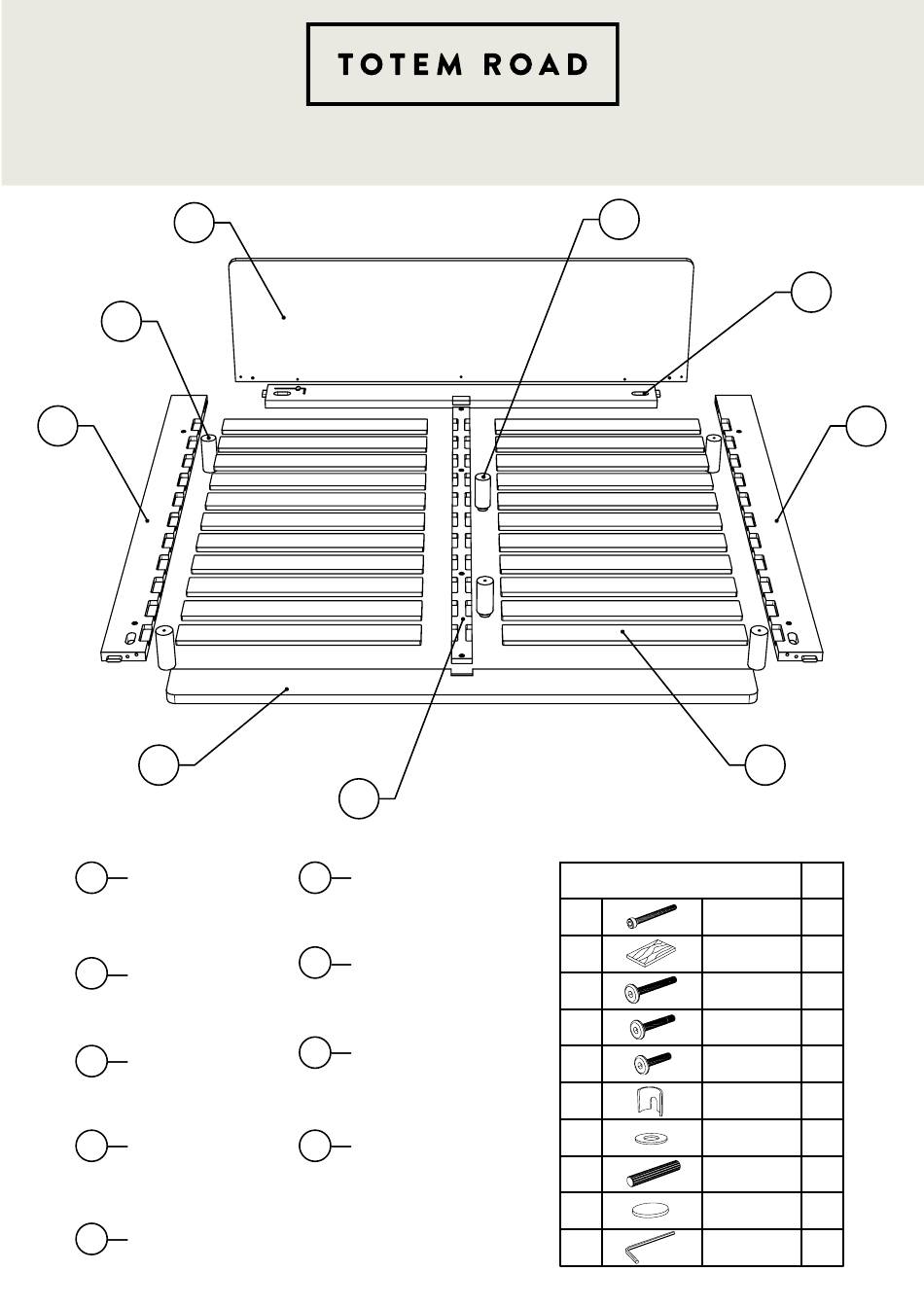

PARTS LIST
5
6
Foot rail QTY 1
7
LHS rail QTY 1
8
Legs QTY 4
9
Headboard QTY 1
1
HARDWARE LIST
white bolt
A
M5x60mm
timber gauge
B
43x20x5
bolt M5x50mm
C
bolt M5x40mm
D
bolt M5x30mm
E
U washer
F
washer Ø15
G
dowel Ø10x40
H
felt pad Ø38
I
Allen key
J
2
3
4
QTY
4
1
6
5
2
4
13
6
8
1
Advertisement
Table of Contents
Summary of Contents for Totem LAGOS
- Page 1 L A G O S B E D Q U E E N / K I N G A S S E M B L Y I N S T R U C T I O N S PARTS LIST Centre legs QTY 2 Foot rail QTY 1 HARDWARE LIST...
- Page 2 STEP 1: BEGIN ASSEMBLING THE BED FRAME. Gently tighten Screw bolts (A) Use timber Connect part 7 Install U wash- with the Allen and install dow- gauge (B) to set to part 2, then ers (F) over the key provided (J). els (H) onto the bolt at the repeat for part 3.
- Page 3 STEP 3: INSTALL LEGS. Use bolt (C) and washer (G) to fit legs to frame. Gently tighten using Allen key provided (J). Repeat for all legs. For use on timber or hard floors, we recommend applying felt pads (I) at the bottom of the legs. STEP 4: INSTALL CENTRE LEGS.
- Page 4 STEP 5: FIT CENTRE RAIL TO FRAME. Use bolt (E) and washer (G) to fit centre rail to frame. Gently tighten using Allen key provided (J). Adjust the centre legs feet to the correct height. STEP 6: FIT HEADBOARD. Install 2x dowels (H) to the bed frame, then install the headboard (9) using 5x bolts (D) and 5x washers (G).
- Page 5 STEP 7: FIT SLATS. Fit the slats (6) by simply placing them onto the slots on the bed frame. Congratulations! Your Lagos bed is now assembled and ready for a good night’s sleep. Paddington Gallery Shop 3 / 188 Oxford Street, Paddington, 2021, NSW, Australia On-site parking available please enquire.
