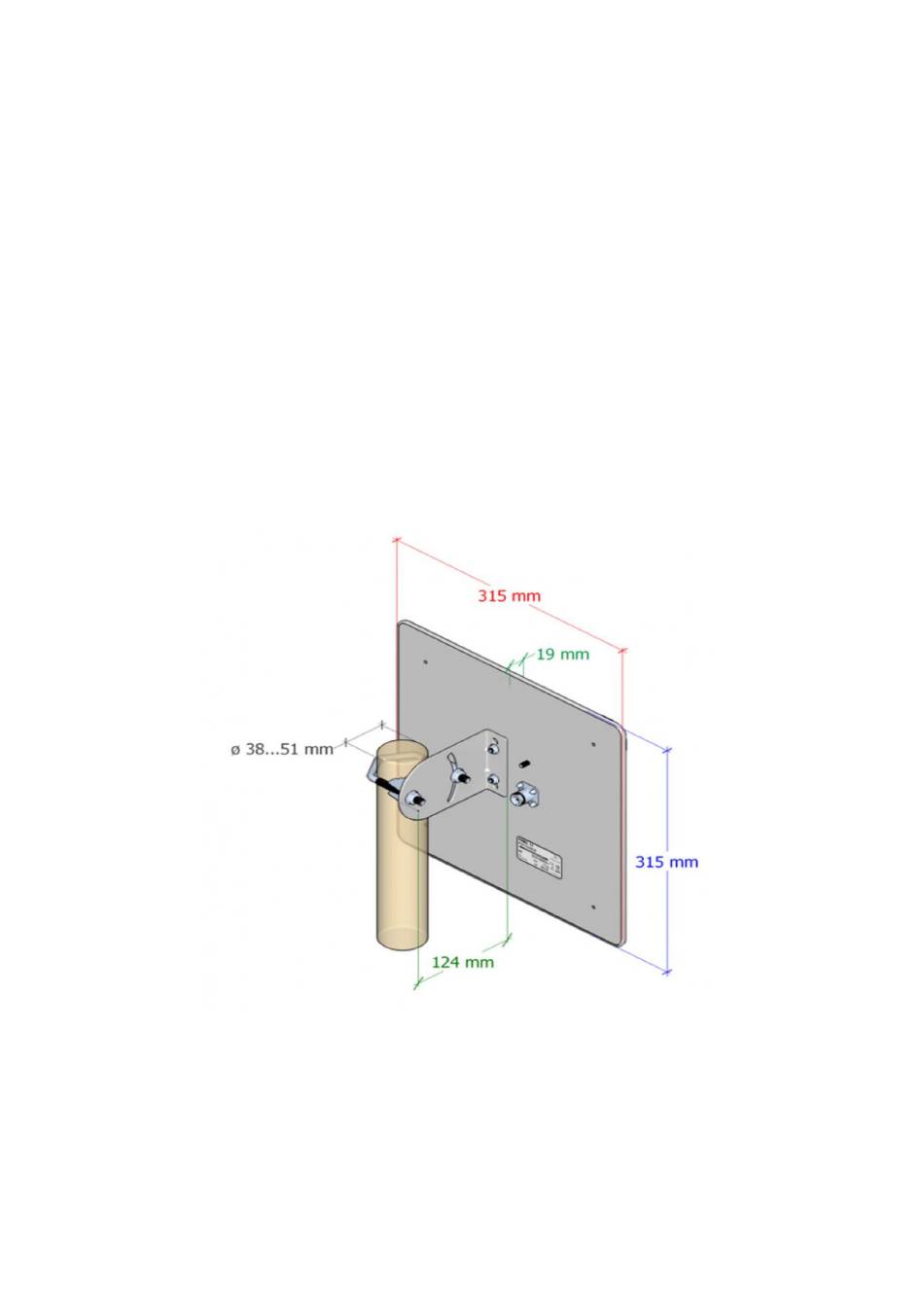

Assembly instructions Beam-antenna for ALF
Fundamental:
This antenna is a beam-antenne designed for the 2.4
GHz WLAN frequency band with a performance gain of
17dbi. Through the rich performance gain and the strong
signal bundling, very high distances can be bridged. The
assembly takes place on a rod with diameter 38 - 51mm.
The antenna cable must be tightly screwed after
assembly, mounting the two antennas in direct alignment
to each other.
Installation:
Attention: No liability for performance or durability
problems, losses are taken over if the assembly was not
carried out according to this manual.
