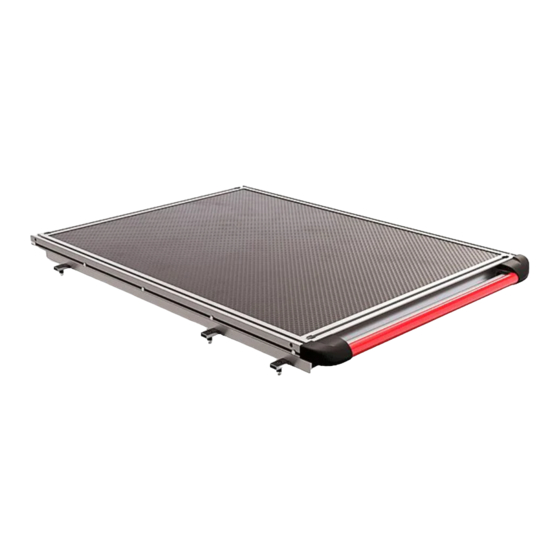

MOUNTAIN TOP® SLIDE
Installation manual
© 2023 Mountain Top / Print format: A5 Booklet
Issue 04 / 05/01-2023 / 887 010

Advertisement

loading
Need help?

Need help?

Do you have a question about the MTS FO10 A01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mountain Top MTS FO10 A01

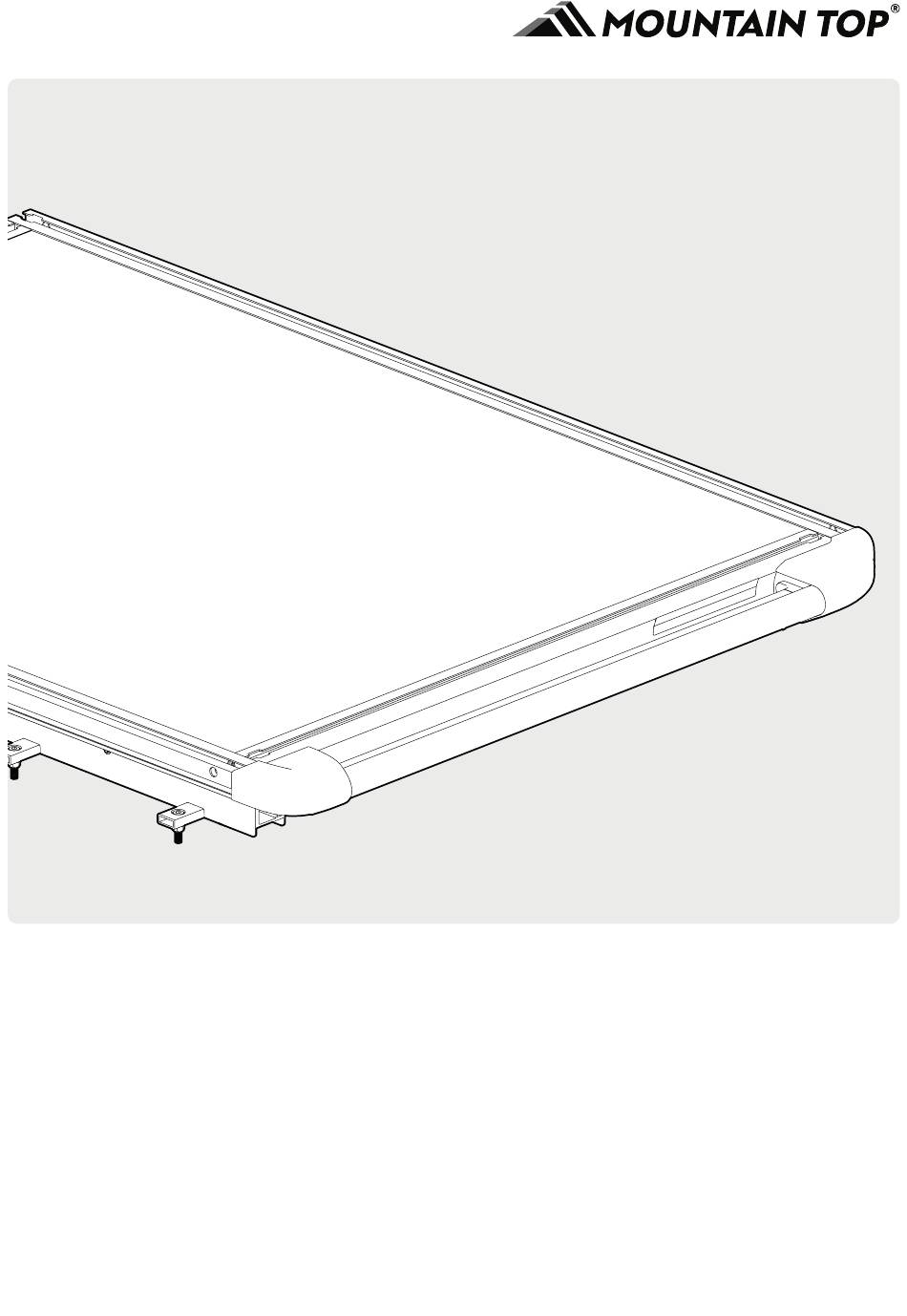

  • Page 1 MOUNTAIN TOP® SLIDE Installation manual © 2023 Mountain Top / Print format: A5 Booklet Issue 04 / 05/01-2023 / 887 010...
  • Page 3 Parts Kit - ONLY FOR FO90/91 x 12 x 12 x 24 Kit - ONLY FOR FO10/11 x 12 x 12 x 12 x 12 Kit - SOLD SEPARATELY x 12 Owners Manual 01/23...
  • Page 4 Tools and materials needed 1-25 Nm 5 mm Rust protection Rostschutzmittel A N T I-RU S T Anti-rouille Anti roest Ø 3 mm 10 mm Ø 8 mm 13 mm 5 mm 70 mm 02/23...
  • Page 5 03/23...
  • Page 6 04/23...
  • Page 7 MTS FO10 A01 X = 122 mm MTS FO11 A01 X = 109mm MTS FO90/91 X = 80mm 3 mm 8 mm 3 mm 05/23...
  • Page 8 x 10 06/23...
  • Page 9 07/23...
  • Page 10 x 10 3 mm 8 mm 3 mm 08/23...
  • Page 11 A N TI -RU S T A N TI -RU S T 09/23...
  • Page 12 x 12 10/23...
  • Page 13 FO90/91 FO10/11 x 12 21 Nm 11/23...
  • Page 14 12/23...
  • Page 15 3 mm 3 mm 13/23...
  • Page 16 14/23...
  • Page 17 15/23...
  • Page 18 3 mm 3 mm 16/23...
  • Page 19 x 12 20 mm 20 mm A N TI -RU S T A N TI -RU S T 17/23...
  • Page 20 18/23...
  • Page 21 19/23...
  • Page 22 x 12 FO90/91 FO10/11 x 12 20/23...
  • Page 23 21 Nm x 12 21/23...
  • Page 24 22/23...
  • Page 25 300 Kg 23/23...
  • Page 28 Pedersholmparken 10, 3600 Frederikssund, Denmark Part number (s) Model / Year Cab type (s) Installation time Weight Ford Ranger / 2022 → MTS FO10 A01 Double Cab 1 hour (s) 33 kg Ford Ranger / 2022 → MTS FO11 A01 Extra/Rap Cab...
