Features; Front; Back - ViewSonic N2201w User Manual

End of life directives
Your new TV contains materials which can be
recycled and reused. At the end of your TV's life,
specialized companies can dismantle the
discarded TV to concentrate the reusable
materials and to minimize the amount of
materials to be disposed of. Dispose of your old
TV according to local regulations.

Features

Accessories
Make sure that the following accessories are
provided in the packaging:
• Power cord
• Remote control and batteries
• ViewSonic User Guide
• ViewSonic Quick Start Guide

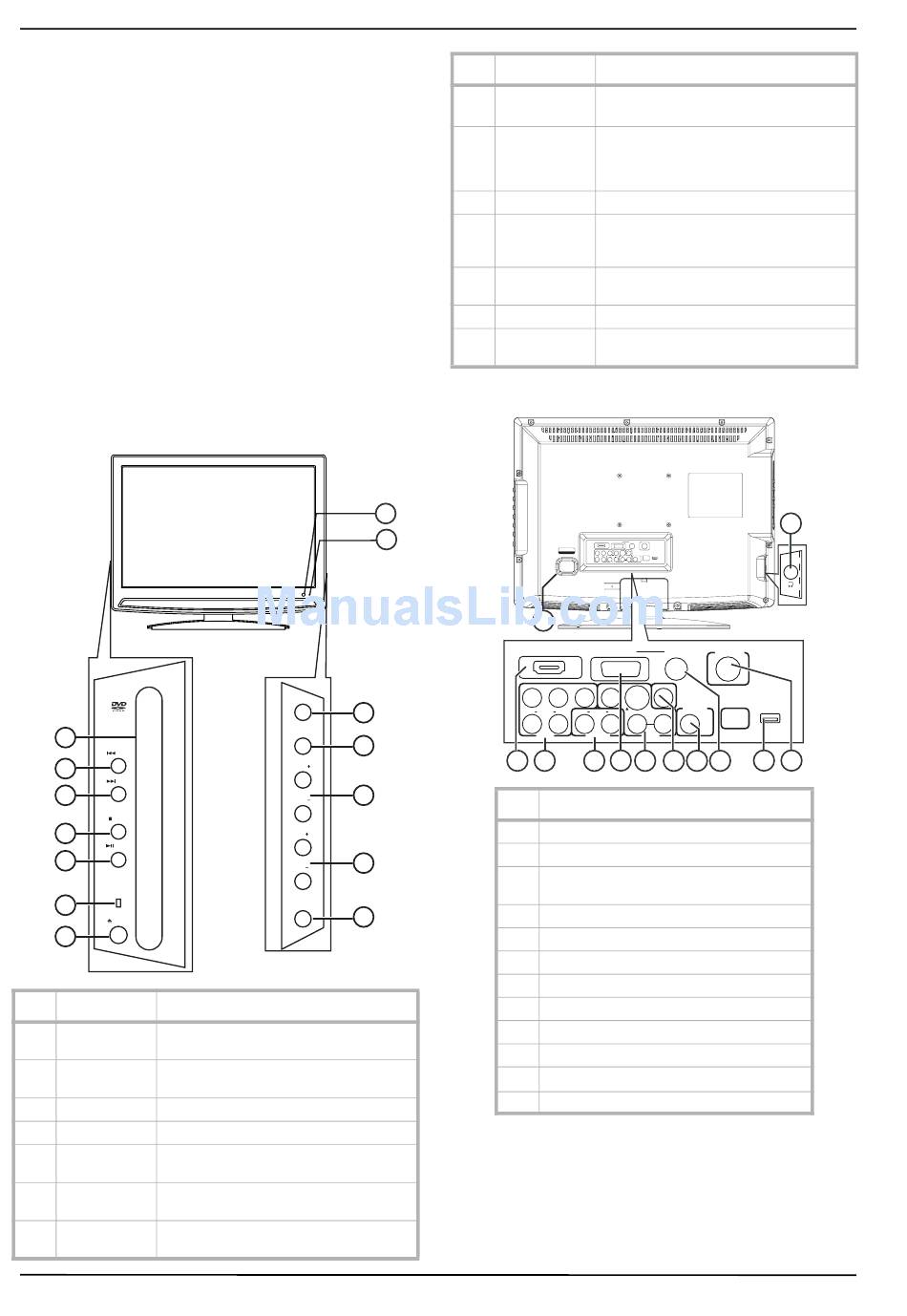

Front

1
PREV
2
NEXT
3
STOP
4
PLAY/
PAUSE
5
DISC IN
6
EJECT
7
# Item Description
1 Disc slot Insert a DVD or CD to change to DVD
mode and play the disc.
2 PREV button Press to skip to the previous chapter or
track.
3 NEXT button Press to skip to the next chapter or track.
4 STOP button Press to stop disc playback.
5 PLAY/PAUSE Press to change to DVD mode and begin
button and pause the DVD or CD playback.
6 Disc In When Iights, indicates a DVD or CD is
indicator loaded into the disc slot.
7 EJECT Press to eject the disc in the disc slot.
button
4
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775
ViewSonic
MENU
10
SOURCE
11
VOL
12
VOL
CH
13
CH
POWER
14
# Item
8 IR sensor
9 Power/Standby
indicator
10 MENU button
11 SOURCE
button
12 Volume+/-
buttons
13 CH+/- buttons
14 POWER button Press to turn your TV combo on or off or

Back

8
9
1
HDMI INPUT
Y C
R AUDIO
INPUT
2 3
# Description
1 AC input
2 HDMI INPUT
3 INPUT (Y, Cr/Pr, Cb/Pb, AUDIO L, and AUDIO
R)
4 AUDIO OUTPUT
5 VGA PC INPUT
6 S-VIDEO, VIDEO, and L/R AUDIO INPUT
7 COAXIAL (digital audio)
8 DVD VIDEO OUTPUT
9 PC AUDIO INPUT
10 USB jack (For service only)
11 ANT.INPUT (coaxial antenna)
12 Headhone jack
ViewSonic N2201w
Description
Receives signals from the remote control.
Do not block.
Lights when your TV is plugged into a
power outlet. When your TV is on, the
indicator is blue. When your TV is in
standby mode, the indicator is red.
Press to open the TV menu.
Press to select the video signal inputs. You
can select TV, AV, S-Video, Component,
DVD, HDMI, or PC.
Press to adjust the volume.
Press to change the channel.
press to leave standby mode.
HDMI INPUT VGA INPUT AUDIO ANT. INPUT
~ 100-240V 50/60Hz Y C B /P B C R /P R VIDEO COAXIAL
A C I N P U T
OUTPUT
R AUDIO L R AUDIO L S-VIDEO AUDIO FOR
SERVICE
ONLY
DVD
R L VIDEO
INPUT OUTPUT INPUT
VGA INPUT AUDIO ANT. INPUT
/P C /P VIDEO COAXIAL
B B R R
OUTPUT
AUDIO
L R AUDIO L S-VIDEO
SERVICE
DVD
R L VIDEO
OUTPUT INPUT
4 7 8 9
5 6
12
FOR
ONLY
10 11
