AZ100 Y Axis Balancer.

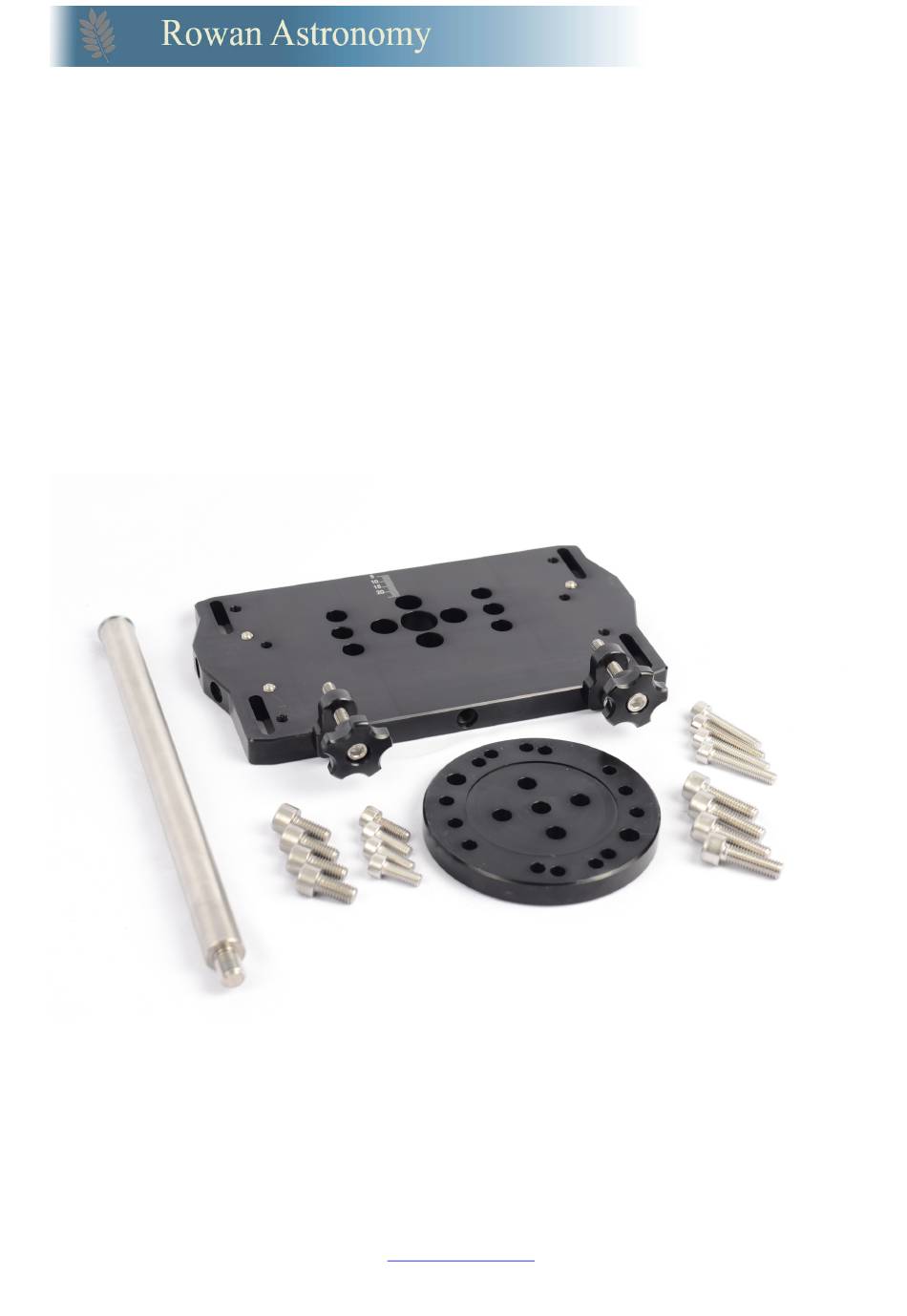

The alignment kit contains:-
1 x Y Axis Alignment plate, with 2x angle brackets fitted.
1 x Eyepiece counterweight bar with end-stop washer.
2 x Adjustment knobs with dome tip screws.
4x M8x16
4x M6x16
4x M6x25 with washers (for attaching saddle to Y Axis balancer).
Optional 12mm axis spacer:
1x Axis spacer
4x M8x25
4x M6x30
01/12/2019
Optional 24mm axis spacer
1x Axis spacer
4x M8x40
4x M6x40
www.rowanastronomy.com
©
2019 Copyright Rowan Engineering Ltd.
Rowan Astronomy
Rowan Engineering Ltd.
Unit 8 Overfield
Banbury
Oxon
OX16 4XR
+44 (0)1295 251188
Page
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AZ100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rowan Astronomy AZ100

  • Page 1 AZ100 Y Axis Balancer. The alignment kit contains:- 1 x Y Axis Alignment plate, with 2x angle brackets fitted. 1 x Eyepiece counterweight bar with end-stop washer. 2 x Adjustment knobs with dome tip screws. 4x M8x16 4x M6x16 4x M6x25 with washers (for attaching saddle to Y Axis balancer).
  • Page 2 4x M6x25 with washers (or using over. the optional 4x knob set). 2) To fit the Y Axis plate to the AZ100, remove the saddle or counterweight shaft and flange from the side you wish to add the Y axis alignment plate.
  • Page 3 The scale can be used for reference so that the Y axis balancer can be re-set to a known position for particular OTA and eyepiece combinations. For further information or advice about using or adjusting the AZ100 please e-mail Rowan Astronomy sales@rowanastronomy.com or contact us on our office number +44 (0) 1295 251188 A .pdf version of this instruction sheet with higher resolution photos is available in the support section...
  • Page 4 Y Axis balancing – How it works. The drawing below shows an example of an OTA weighing10Kg in total including diagonal, eyepiece, and a bino-viewer. The top drawing has the telescope mounted without a Y-Axis balancer. It is easy to balance the OTA in the horizontal position as the mass is simply set to be equal on each side of the vertical axis, sliding the telescope in its saddle to obtain balance.
