HMI HOYME RADP-0242-S10A Installation Instructions

Installation Instructions for
Split Duplex Receptacle - Interlocked to a Gas Dryer/Damper Combination
24Vac Controlled Voltage Switches 24Vac and/or 120Vac Circuits
INSTALLATION OF THIS ADAPTOR SHALL BE
IN ACCORDANCE WITH THE REQUIREMENTS
OF THE AUTHORITIES HAVING JURISDICTION
Refer also to HOYME Installation Instructions:
Combustion Inlet Air Control Damper, Series
HOM-SF1 and SF2; Replacement/Ventilation Air
Control Damper, Series – HAC/MAC-0x11-SPC,
HAC/MAC-0x10-SP0.

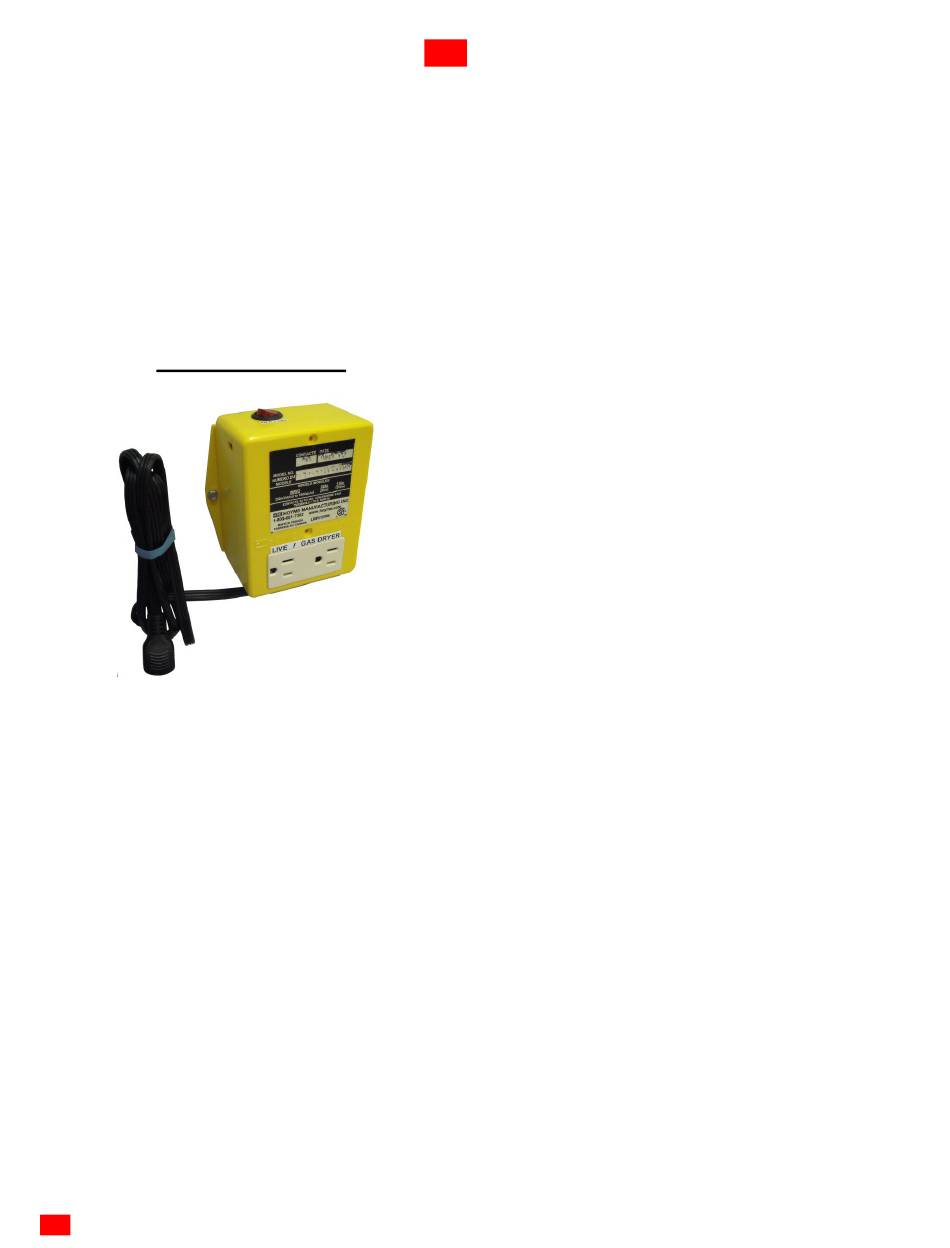

RADP-0242-S10A
4" x 5" x 2 ½"
101 x 127 x 64 mm

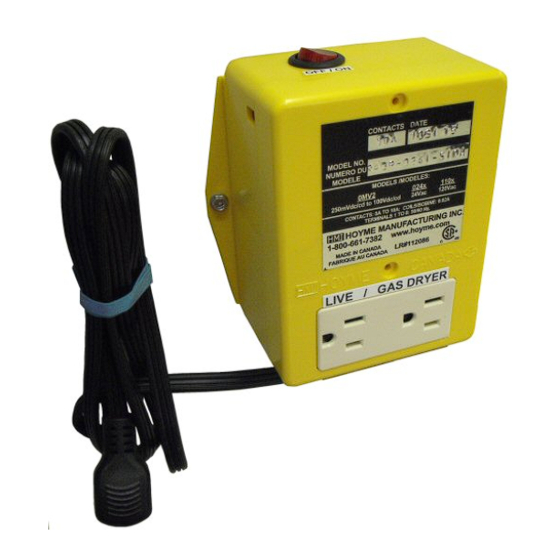

This interface Adaptor RADP-0242-S10A is an
interlocking control device to safely supply fresh air
for a dryer/damper/furnace combination. The
Adaptor has a manual red light switch that, when
turned on, the fresh air damper opens proving its
position prior to gas dryer operation (Interlocked).
This Adaptor may also be interconnected to
simultaneously turn on a Furnace Circulation Fan
and open an HAC replacement air damper, if used,
on a furnace return plenum. HAC Damper may
also open during furnace firing. Damper(s)
remain open until the red light switch is manually
turned off.
This Adaptor may be interlocked to dampers:
-HOM-0x11-SF1
-HOM-0x12-SF2, secondary circuit;
-HAC/MAC-0x11-SPC;
-HAC/MAC-0x10-SPO;
1930-ch
HMI HOYME MANUFACTURING INC.
HMI HOYME RADP-0242-S10A
Fitness of this Adaptor/Damper combination to
satisfy air supply requirements for fuel fired
appliances during operation of the
interconnected exhaust fan(s) shall be
investigated by the enforcing authorities.
Air intake duct installation shall be in accordance
with: In Canada - CAN/CSA B149 & B139; In the
USA -ANSI NFPA 2006, ANSI Z223.1 and/or
local codes including local codes relating to
ventilation air duct installation.
I.D.: RADP-0242-S10A
1 Relay SPDT: Coil.02A, 24Vac, Points,120Vac-10A
1 Relay DPDT: Coil,.02A, 24Vac, Points-24Vac- 5A
(Coils are connected in parallel to act as one relay.)
1 Relay DPDT: Coil.02A, 24Vac, Points-24Vac- 5A
1 Split Duplex Receptacle: "LIVE"/"GAS DRYER"
1 Red Light "on/off" Switch
5' - 3C Electric Cord with 90 degree plug-in
- Refer to local and applicable codes.
- Always conduct a thorough check-out after
Installation is complete.
- Affix appropriate labels and follow
Instructions and warnings on each label.
1. Dampers HOM-0x11-SF1 or MAC-0x11-SPC
used for air supply to the Gas Dryer only:
a) Mount the Adaptor near the Gas Dryer for
ease of Red Light Switch operation and near
the 120Vac outlet that was used for the dryer.
b) Use 2C-18Ga. electrical wire to connect
Damper terminals #4(common) and #5(live) to
24Vac supply. If using the heating appliance
transformer, check transformer capacity.
c) Run 4C-18Ga. electric wire from the Damper to
the Adaptor and connect as follows:
-Connect HOM/MAC Damper #4 to RADP #3(C)
-Connect HOM/MAC Damper #3 to RADP #8
-Connect HOM/MAC Damper #2 to RADP #1
-Connect HOM/MAC Damper #1 & #5 to RADP #2.
d) Turn on the electric power to the Damper
causing the damper to close.
e) Plug the Adaptor cord into the 120Vac outlet.
-1-
