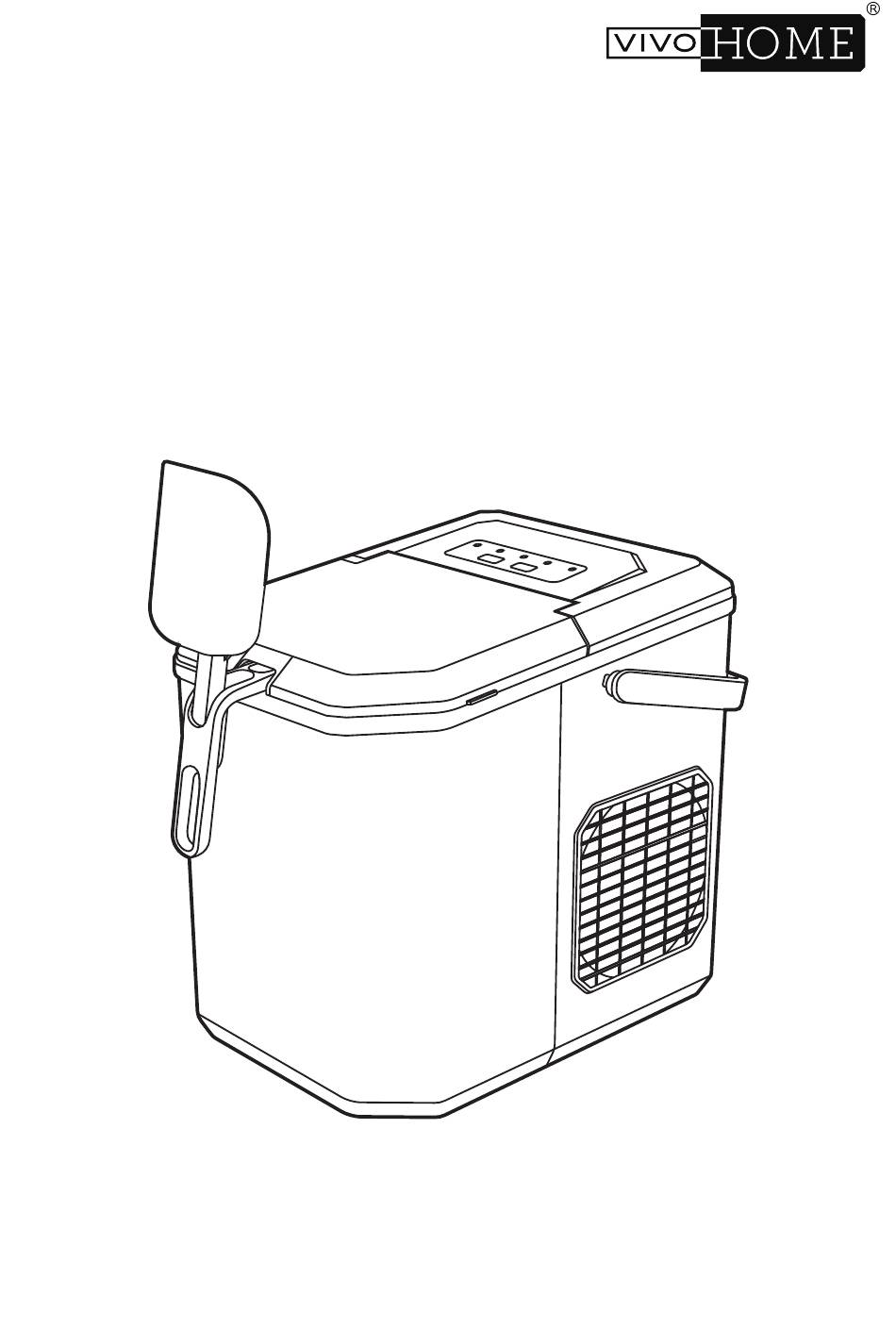

- Page 1 Countertop Ice Cube Maker with Handle Instruction Manual THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND SAVE IT FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS………....…………………………… PREPARING YOUR ICE MAKER FOR USE……………………………………………….. GETTING TO KNOW YOUR UNIT………………………………………………………………. AUTOMATIC SELF-CLEANING PROGRAM……………………………………………. OPERATING PROCEDURES & MAINTENANCE……………….....……….. USING YOUR ICE MAKER……………….……..……………………………………………………… TROUBLESHOOTING……………….……..………………………………………………………………. TECHNICAL PARAMETERS……….……..……………………………………….……..…………… CIRCUIT DIAGRAM……………………………………….……..……………………………………….… EXPLOSIVE DRAWINGS….……..……………….……..…………….……..…………….……...….. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Your safety and the safety of others are very important. We have provided important safety information in this manual. Always read and obey all safety information. This is the safety alert symbol: All safety information will follow the safety alert symbol and the word “DANGER”... - Page 4 Unplug the ice maker before cleaning or making any repairs or servic- ing. Exercise caution and use reasonable supervision when appliance is used near children. Do not use your ice-maker outdoors. Place the ice-maker away from direct sunlight and make sure that there is at least 6 inches of space between the back of your unit and wall.
-
Page 5: Getting To Know Your Unit
GETTING TO KNOW YOUR UNIT 1. Ice scoop. 2. Ice full sensor 3. Ice basket 4. Top cover with transparent window 5. Air exhausting 6. Water drain cap: at front btm side of the unit. 7. Ice basket handle 8. Ice scoop 9. -
Page 6: Operating Procedures & Maintenance
OPERATING PROCEDURES & MAINTENANCE Postion of control panel & function Control Panel: Easy to use, visible functions touch display setting. Selected ice size displaying: Small and Large. Power indicator Ice-Full indicator Water shortage indicator Button to turn on/off the unit. Button to select ice cube size. - Page 7 Unpacking Your Ice Maker Remove the exterior and interior packaging. Check if ice basket and ice scoop inside. If any parts are missing, please contact our cus- tomer service. Remove the tapes for fixing ice shovel, ice basket & ice scoop. Clean the tank &...
- Page 8 Connecting Your Ice Maker *Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, please call our customer service. This unit should be properly grounded for your safety. The power cord of this appliance is equipped with a grounding plug which mates with standard grounding wall outlets to minimize the possi- bility of electric shock.
-
Page 9: Using Your Ice Maker
USING YOUR ICE MAKER Open the cover, remove the ice basket, and pour water into the tank. Keep the water level below the maximum water level mark. Press the ON/OFF button on the control panel to begin the ice-making cycle. Select the ice cube size by pressing the SELECT button. -
Page 10: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION ADD WATER Lack of water. Power the device off, fill it with indicator is on. water, and press the ON/OFF button again to restart the unit. ICE FULL The ice basket Empty the ice basket. Long press indicator is on. -
Page 11: Technical Parameters
TECHNINCAL PARAMETERS Model VH1179 Protection Type Power 115V/60Hz Ice Making Current 1.5A Ice Harvest Current 1.8A Refrigerant R600a 0.74 oz. / 21g Design Pressure High side: 290 Psig Low side: 88 Psig Vesicant Net Weight 6.3kg (16.7 lbs) Dimension ( W * D *H ) 222x290x294mm (8.7x11.4x11.2 inch) -
Page 12: Explosive Drawings
EXPLOSIVE DRAWINGS Part description Qty/Per S/N Part description Qty/Per S/N Part description Qty/Per Power cord Evaporator Stainless wire plastic clip Micro switch Water supply pipe Back panel Inner tank bracket, LH Synchronous motor Plate back support Back btm panel Condenser DC water pump Back top panel DC fan motor...
