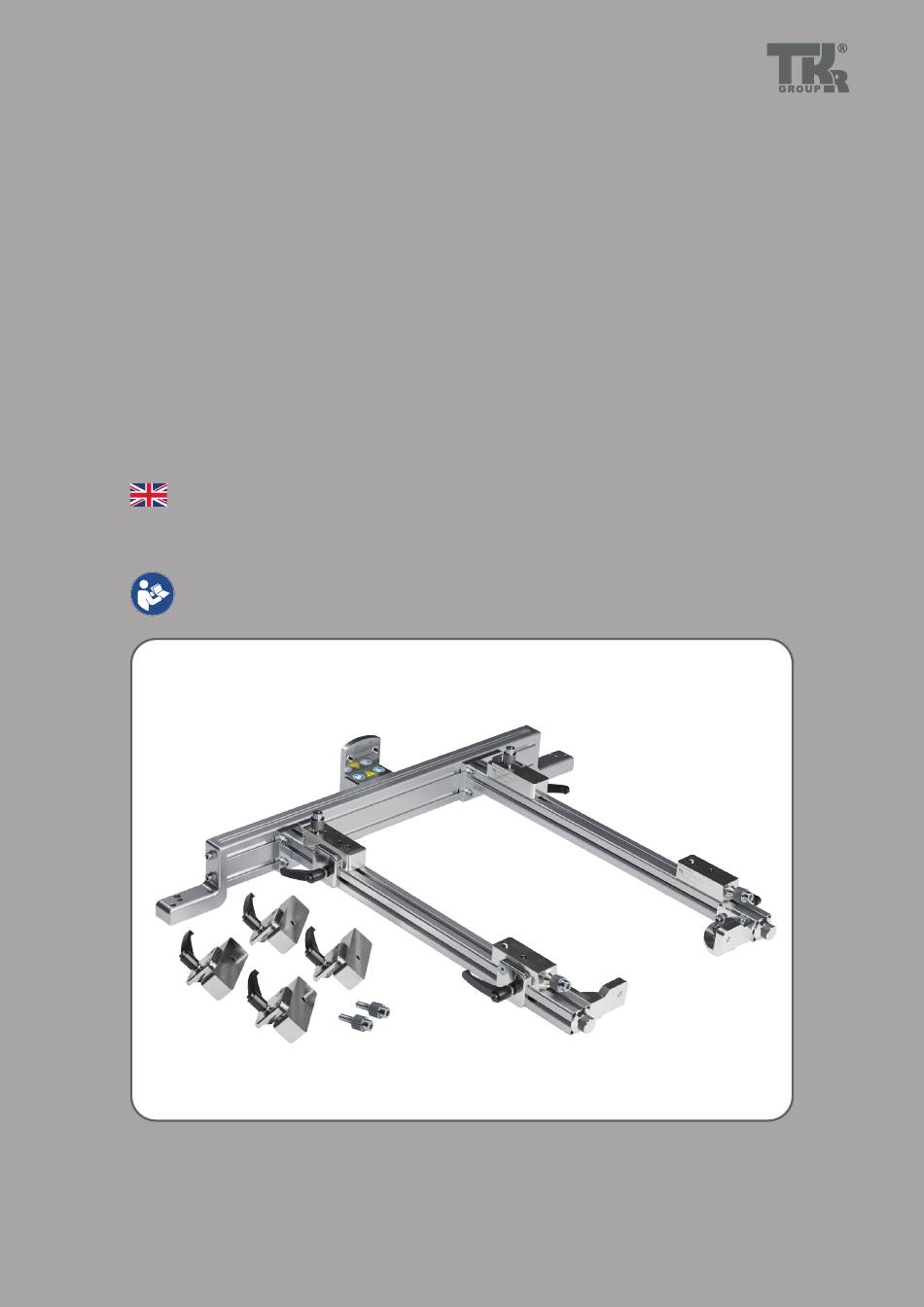

- Page 1 83 30 2 473 334 Seat support frame Translation of the original owner’s manual R2-22.06-V1...
-
Page 3: Table Of Contents
Safety General instructions Explanation of symbols Designations Scope of supply Safety instructions Technical data Technical data Intended use Working with the seat support frame - basic principles Assembly Assembly Completing an operation and seat support frame storage Maintenance Troubleshooting Regular checking and maintenance Service Disposal Warranty &... -
Page 4: General Instructions
1.1 General instructions State-of-the-art Declaration of Conformity This tool is state-of-the-art technology. To ensure that the The tool has been manufactured and inspected in equipment operates safely, it must be operated in a proper and compliance with European directives. The Decla- safety-conscious manner. -
Page 5: Explanation Of Symbols
1.2 Explanation of symbols This owner‘s manual contains some sections with internationally recognized warning symbols, hazard warnings and general mandatory signs. The individual symbols are explained below. Follow all the instructions and safety rules. Follow the manual Please note the following... Turn anti-clockwise Wear protective gloves Arrow to clarify compression... -
Page 6: Designations
1.3 Designations Designation on the adaptor plate of the cross member Manufacturer’s label Serial number / Date of manufacture Company address Note CE mark / UKCA mark Item number Dead weight Max. Nominal load... -
Page 7: Scope Of Supply
1.4 Scope of supply Seat support frame Sliding support clamp left front 1x - 83 30 2 473 334_A Cross member with adaptor plate 1x Sliding support clamp left back 1x - 83 30 2 473 334_B Support arm 2x Sliding support clamp right front 1x - 83 30 2 473 334_C Cheese head screw knurled M10 x 35 8.8 4x Sliding support clamp right back 1x - 83 30 2 473 334_D... -
Page 8: Safety Instructions
1.5 Safety instructions The tool is strictly approved solely for the purpos- CAUTION es for which the manufacturer has designed it. Risk of material damage and bodily injury The tool must only be used for the activities described in this Untrained or uninstructed personnel are prohibited from operat- owner's manual. -
Page 9: Technical Data
2.1 Technical data Seat support frame Model number 83 30 2 473 334 Weight 14.32 kg Max. Nominal load 52 kg Dimensions (W x H x D) in mm 928 x 762 x 195 Coefficient for the static test Temperature -10°C to +60°C... -
Page 10: Intended Use
2.2 Intended use Intended The seat support frame must only be used according to the specifications of BMW AG to lift a BMW seat of no more than 52 kg. Only use the seat support frame with the assembly stand 83 30 0 495 187 (see BMW workshop manual). Improper The load-carrying capacity of 52 kg indicated on the seat support frame is the maxi- mum nominal load for which it may be used for lifting purposes. -
Page 11: Working With The Seat Support Frame - Basic Principles
2.3 Working with the seat support frame - basic principles Risk of injury The seat support frame must be positioned so that there is no risk of crushing. Load-carrying capacity Before using the seat support frame, make sure that the nominal load of 52 kg specified for it is not exceeded. Stable positioning The lifting equipment may only be used on a level, horizontal, solid floor. -
Page 12: Assembly 3.1 Assembly
3.1 Assembly 3.1.1 3.1.1 Attach the seat support frame to the adaptor plate of the cross member with the assembly stand. When doing so, tighten all four M14x30 8.8 hex head screws and washers supplied with the assembly stand to a torque of 135 Nm. 3.1.2 / 3.1.3 If necessary, undo the 4 cheese head screws on the spacers of the cross member and move them to the relevant position for... - Page 13 3.1.6 3.1.6 If necessary, operate the crank handle of the assembly stand until the seat support frame is horizontal and the support surface of the side angles is facing upwards 3.1.7 Lift the seat and transport it to the assembly stand (see BMW workshop manual) using a crane with sufficient load-carrying capacity and which is approved by BMW.
- Page 14 3.1.11 3.1.11 3.1.11 Tighten the locking levers of the four sliding support clamps hand tight. If necessary, remove the crane from the seat. 3.1.12 If the seat has to be rotated while folded, secure it with a suitable belt. Refer to the workshop manual from BMW when carrying out the repair and maintenance work.
-
Page 15: Completing An Operation And Seat Support Frame Storage
3.2 Completing an operation and seat support frame storage 3.2.1 Before and after each operation, check the seat Always store the tool so that it is clean and safe. support frame for any damage. Avoid contamination. Store the seat support frame as shown. Clean the seat support frame before storing it. -
Page 16: Troubleshooting
4.1 Troubleshooting Fault Problem Remedy Chapter Incorrect sliding support clamps Check the sliding support clamps and use diffe- used. rent ones if necessary. Seat does not fit on the sliding support clamps. Check the positioning of the support, rotate it by Incorrect support position used. -
Page 17: Service
5.1 Disposal Devices and machinery and components of devices and machinery must be disposed of in compliance with the laws, regulations and other stipulations of the country in which they are located. We recommend using specialist licensed companies for disposal. The modules and units have been developed to be environmentally compatible and suitable for recycling. -
Page 18: Declaration Of Conformity
EC Declaration of Conformity In accordance with EU Machinery Directive 2006/42/EC Tool type: Seat support frame Type designation: 83 30 2 473 334 Serial number range: 00001–10000 Developed and designed in compliance with the standards and guidelines listed below by the manufacturer: TKR Spezialwerkzeuge GmbH Am Waldesrand 9–11... - Page 19 Declaration of Conformity Tool type: Seat support frame Type designation: 83 30 2 473 334 Serial number range: 00001–10000 The product is developed and constructed in accordance with the UK legislation and designated standards by manufacturer: TKR Spezialwerkzeuge GmbH Am Waldesrand 9–11 DE-58285 Gevelsberg Person authorized to compile the technical documents: Thorsten Weyland Applicable UK legislation:...
- Page 20 Am Waldesrand 9–11 D-58285 Gevelsberg (Germany) Other languages, accessories and Tel. +49 2332 66607-0 +49 2332 66607-941 spare parts: www.tkr-service.com E-mail info@tkrgroup.com Internet www.tkrgroup.com...
