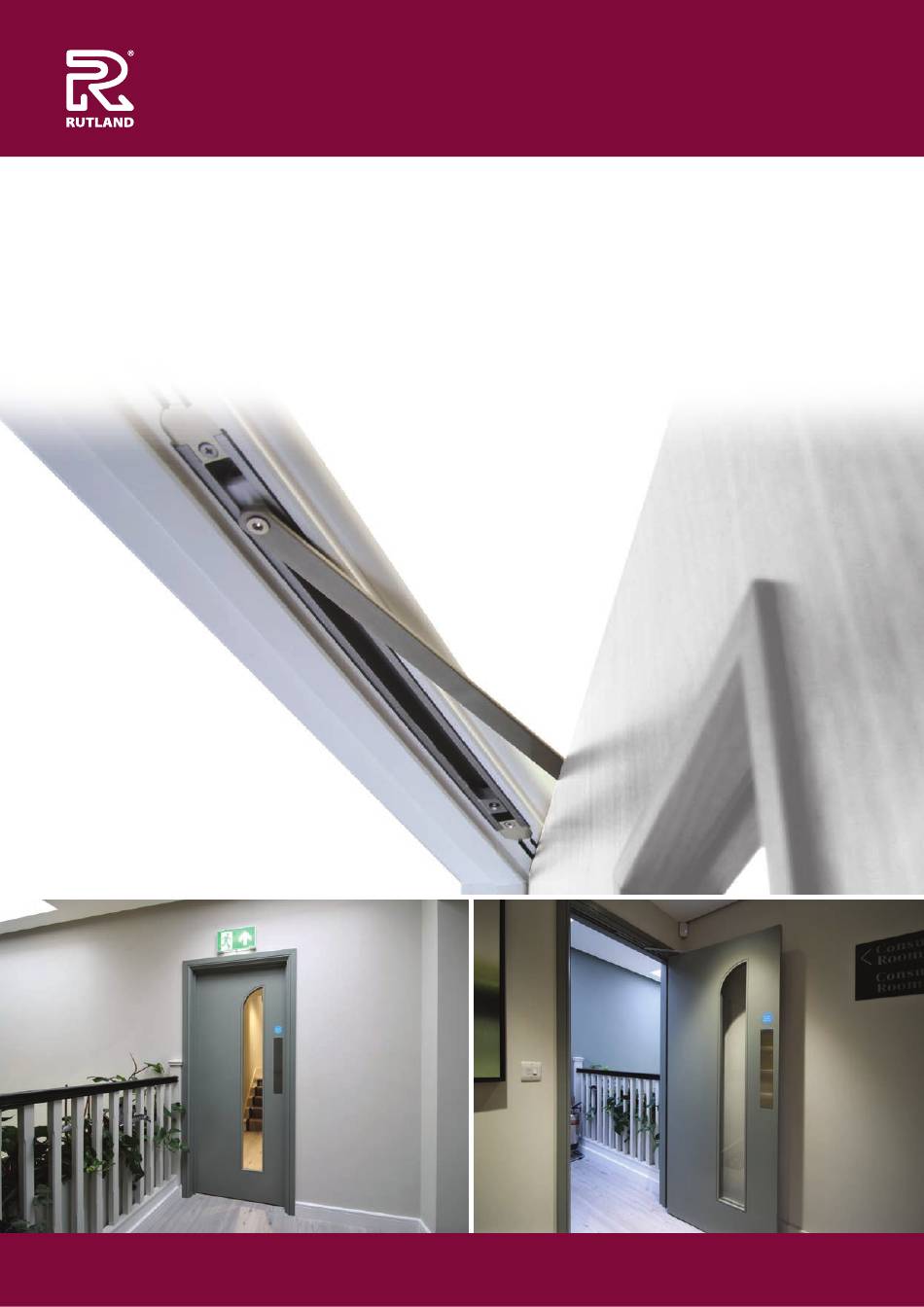

- Page 1 E NH A N C I NG L I F E SA F E T Y A T EV E RY F I R E DO O R C ON C EA LED SLI DE ARM D OOR CLOS ER S ITS.11204 rutlanduk.co.uk t.
- Page 2 DOOR WEIGHT CLOSING SPEED suitability for assisting BS8300 requirements, the Rutland ITS.11204 Cam Action door closer has been successfully fire tested numerous times in 44mm fire doors, making it a perfect 130Kg door closer for situations where minimal aesthetics are required.
- Page 14 Slide block with hold open clip back into the slide rail, then tighten Allen key screw at desired angle of hold-open +44 (0)1246 261491 | sales@rutlanduk.co.uk rutlanduk.co.uk Rutland UK Whittington Way Chesterfield S41 9AG...
- Page 15 Slide the cushion (2) into the rail (1) up against the stop. Step 2 Insert the white shuttle (3) and continue fixing the closer and connecting the rail (1). t. +44 (0)1246 261491 e. sales@rutlanduk.co.uk rutlanduk.co.uk Rutland UK Whittington Way Chesterfield S41 9AG...
-
Page 16: Maintenance
*For high usage closers, this steps will need to be carried out more often than every 6 months. Any unusual sounds or visual defects should be addressed immediately t. +44 (0)1246 261491 e. sales@rutlanduk.co.uk rutlanduk.co.uk Rutland UK Whittington Way Chesterfield S41 9AG... -
Page 17: Valve Adjustments
If a delay or extra time is required on the closing of the door, the Delayed Action valve can be used. Turn the valve clockwise if more time is required or turn the valve anti-clockwise if less time is required. Delayed Action valve if applicable to this model. t. +44 (0)1246 261491 e. sales@rutlanduk.co.uk rutlanduk.co.uk Rutland UK Whittington Way Chesterfield S41 9AG... - Page 18 Enhancing life safety at every fire door Rutland UK t. +44 (0)1246 261491 Whittington Way e. sales@rutlanduk.co.uk Chesterfield S41 9AG w. rutlanduk.co.uk...
