Summary of Contents for SSV IGW/936-L

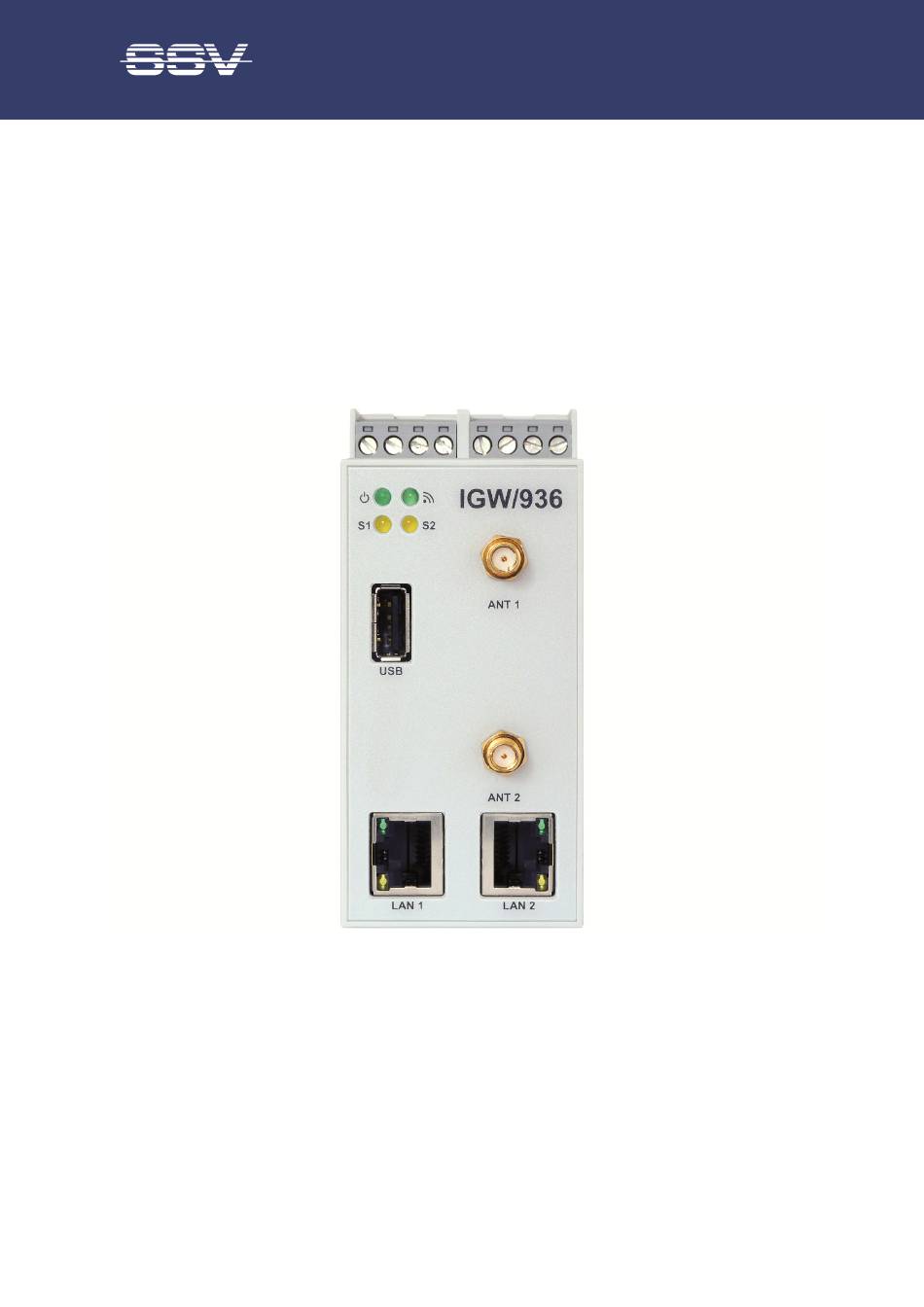

- Page 1 LTE ROUTER IGW/936-L with eSOM/3517 Hardware Reference SSV SOFTWARE SYSTEMS Document Revision 1.9 // 2023-07-07...
-
Page 2: Table Of Contents
IGW/936-L – Hardware Reference CONTENT 1 INTRODUCTION ........................ 3 1.1 Safety Guidelines ........................3 1.2 Conventions ..........................3 1.3 Main Applications ........................3 1.4 Features and Technical Data ....................4 2 OVERVIEW ........................5 3 PINOUTS ..........................6 3.1 10/100 Mbps Ethernet Interface LAN1 .................. 6 3.2 10/100 Mbps Ethernet Interface LAN2 .................. -
Page 3: Introduction
IGW/936-L – Hardware Reference INTRODUCTION This document describes the basic hardware components of the IGW/936-L. Safety Guidelines Please read the following safety guidelines carefully! In case of property or personal damage by not paying attention to this document and/or by incorrect handling, we do not assume liability. -
Page 4: Features And Technical Data
IGW/936-L – Hardware Reference Features and Technical Data Processor Manufacturer / Type Texas Instruments AM3517 32-bit ARM Cortex-A8 SoC (eSOM/3517) Clock speed 600 MHz Memory 256 MB SDRAM Flash 1 GB NAND memory, 8 MB NOR memory Storage media 1x internal microSD card holder... -
Page 5: Overview
IGW/936-L – Hardware Reference OVERVIEW Figure 1: Overview IGW/936-L D o c u m e n t R e v i s i o n 1 . 9... -
Page 6: Pinouts
IGW/936-L – Hardware Reference PINOUTS 10/100 Mbps Ethernet Interface LAN1 Pin Name Function 10/100 Mbps LAN, TX+ 10/100 Mbps LAN, TX- 10/100 Mbps LAN, RX+ Not Connected Not Connected 10/100 Mbps LAN, RX- Not Connected Not Connected Table 2: Pinout Ethernet interface LAN1... -
Page 7: Screw Terminals
IGW/936-L – Hardware Reference Screw Terminals Terminal Signal COM2 Serial Port: RS485 RX/TX+ COM2 Serial Port: RS485 RX/TX- Vin + (12 .. 24 VDC) Vin - COM3 Serial Port: TXD (RS232), RX/TX- (RS485) COM3 Serial Port: RXD (RS232), RX/TX+ (RS485) -
Page 8: Sim Card
IGW/936-L – Hardware Reference SIM CARD The internal SIM card of the IGW/936-L can be changed through the slot on the backside. To remove the SIM card just push it gently with a screw driver until you hear a soft "click". -
Page 9: Helpful Literature
2023-07-07 Removed information about DVI interface The contents of this document are subject to change without prior notice. SSV does not assume any liability and does not guarantee that the presented information is accurate or complete. The information in this document is provided 'as is' without warranty of any kind.
