Omnitron Systems iConverter 4xT1/E1 User Manual

iConverter®
4xT1/E1 MUX/M Multiplexer
Description
The iConverter 4xT1/E1 MUX/M multiplexes four T1/E1s and Ethernet onto a fiber optic transport link,
and features remotely managed testing and configuration capabilities. The iConverter 4xT1/E1 MUX/M
operates in a back-to-back configuration, with one multiplexer at each end of the fiber transport link.
The 4xT1/E1 MUX/M consists of a 4xT1/E1 MUX module and a TM3 fiber transport module installed
in a 2-Module chassis.
This User Manual describes the hardware functions of the iConverter T1/E1 MUX/M Revision 3.0 or
higher. The revision of the product can be confirmed by removing the TM3 transport module. The revision
is printed on a small white label (xx/30). All modules in the chassis should be at the latest firmware
revision to insure proper operation. For detailed software configuration information,
to the Menu Driven Interface User Manual.
Configure DIP-Switches
The 4xT1/E1 MUX/M is comprised of an iConverter TM3 fiber transport module and an iConverter
4xT1/E1 MUX modules installed in a 2-module chassis.
DIP-switches on both modules provide detailed configuration of the Ethernet and T1/E1 ports.
TM3 Transport Module
The DIP-switches for the TM3 Transport modules is shown in Figure 1.

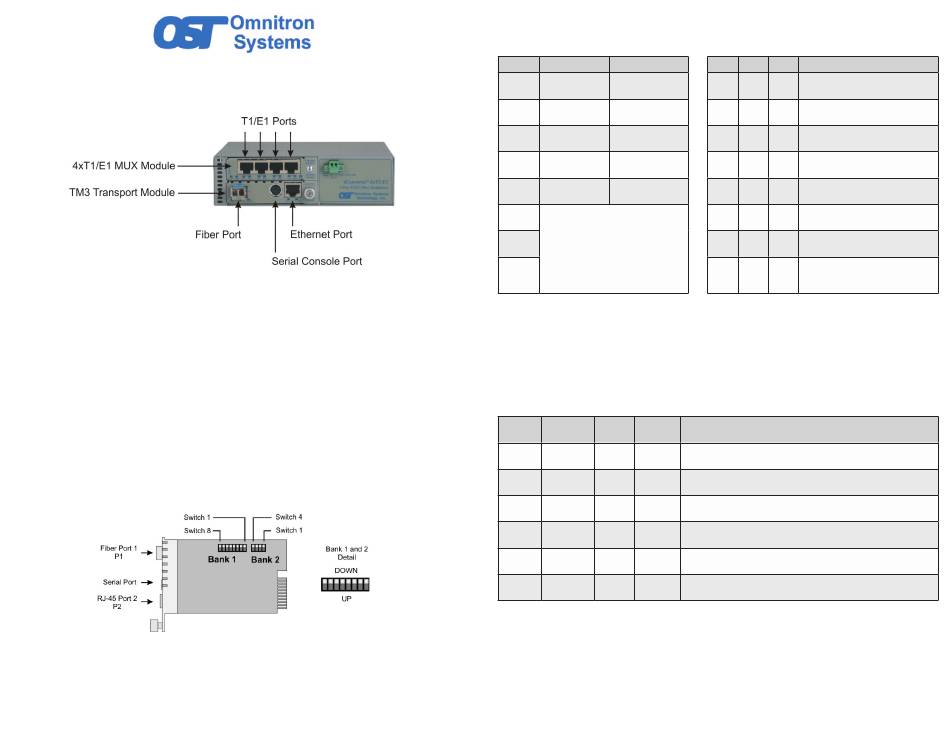

Figure 1: DIP-switch Locations for TM3 Transport Module
User Manual
Page 1
DIP-switch Bank 1
The function of DIP-switch Bank 1 is outlined in Figures 2 and 3 below. Switch numbers in parenthesis
(#), correspond to the numbers displayed on the management interface.
Switch Down (Default)
AN:
SW1 (1)
P1 Auto-neg.
AN:
SW2 (2)
P2 Auto-neg.
1000:
SW3 (3)
P2 1000Mbps
100:
SW4 (4)
P2 100Mbps
FDX:
SW5 (5)
P2 Full-Duplex
SW6 (6)
SW7 (7)
SW8 (8)
Figure 2: DIP-switch Bank 1
SW1 (1): P1 Auto-Negotiation/Manual "AN / Man"
When this DIP-switch is in the Down "AN" position (factory default), the fiber port automatically determines
the duplex and pause modes of the connected device. If the connected device cannot provide the proper
signal to indicate its own mode of operation, the DIP-switch should be set to the Up "Man" position. When
in manual mode, no capabilities are advertised and the port operates in full-duplex mode.
SW2 (2), SW3 (3), SW4 (4), SW5 (5) - Port 2 RJ-45 Configuration
register for access
Figures 4a and 4b summarizes the function of the DIP-switches SW2 - SW5.
SW2
AN 1000/100-10
AN
AN
AN
AN
AN
AN
Up SW6
Man:
Down Down Down
P1 Manual
Man:
Up
P2 Manual
10-100:
Down
P2 10 or 100Mbps
10:
Up
P2 10Mbps
HDX:
Down Down
P2 Half-Duplex
Up
Down
Link Modes (see Figure 3)
Up
SW3 SW4 SW5
100/10 FDX/HDX
RJ-45 port is set to auto-negotiation with the following modes
1000 10 or 100 FDX
advertised: 1000F, 1000H, 100F, 100H, 10F, 10H
RJ-45 port is set to auto-negotiation with the following modes
1000 10 or 100 HDX
advertised: 1000H, 100F, 100H, 10F, 10H
RJ-45 port is set to auto-negotiation with the following modes
10-100 100 FDX
advertised: 100F, 100H, 10F, 10H
RJ-45 port is set to auto-negotiation with the following modes
10-100 100 HDX
advertised: 100H, 10F, 10H
RJ-45 port is set to auto-negotiation with the following modes
10-100 10 FDX
advertised: 10F, 10H
RJ-45 port is set to auto-negotiation with the following modes
10-100 10 HDX
advertised: 10H
Figure 4a: RJ-45 Auto-Negotiation Configuration
Page 2
SW7 SW8 Link Mode
Link Segment (LS)
Down Down Link Propagate (LP)
Remote Fault Detect + Link
Up Down
Segment (RFD+LS)
Remote Fault Detect + Link
Up Down
Propagate (RFD+LP)
Up Symmetrical Fault Detect (SFD)
Asymmetrical Link Propagate Port
Down Up
1 to Port 2 (ALP P1 P2)
Asymmetrical Link Propagate Port
Up Up
2 to Port 1 (ALP P2 P1)
Asymmetrical Link Propagate Port
Up Up 1 to Port 2 + Port 1 Remote Fault
Detect (ALP P1 P2 + P1 RFD)
Figure 3: Link Mode Settings
RJ-45 Mode of Operation
