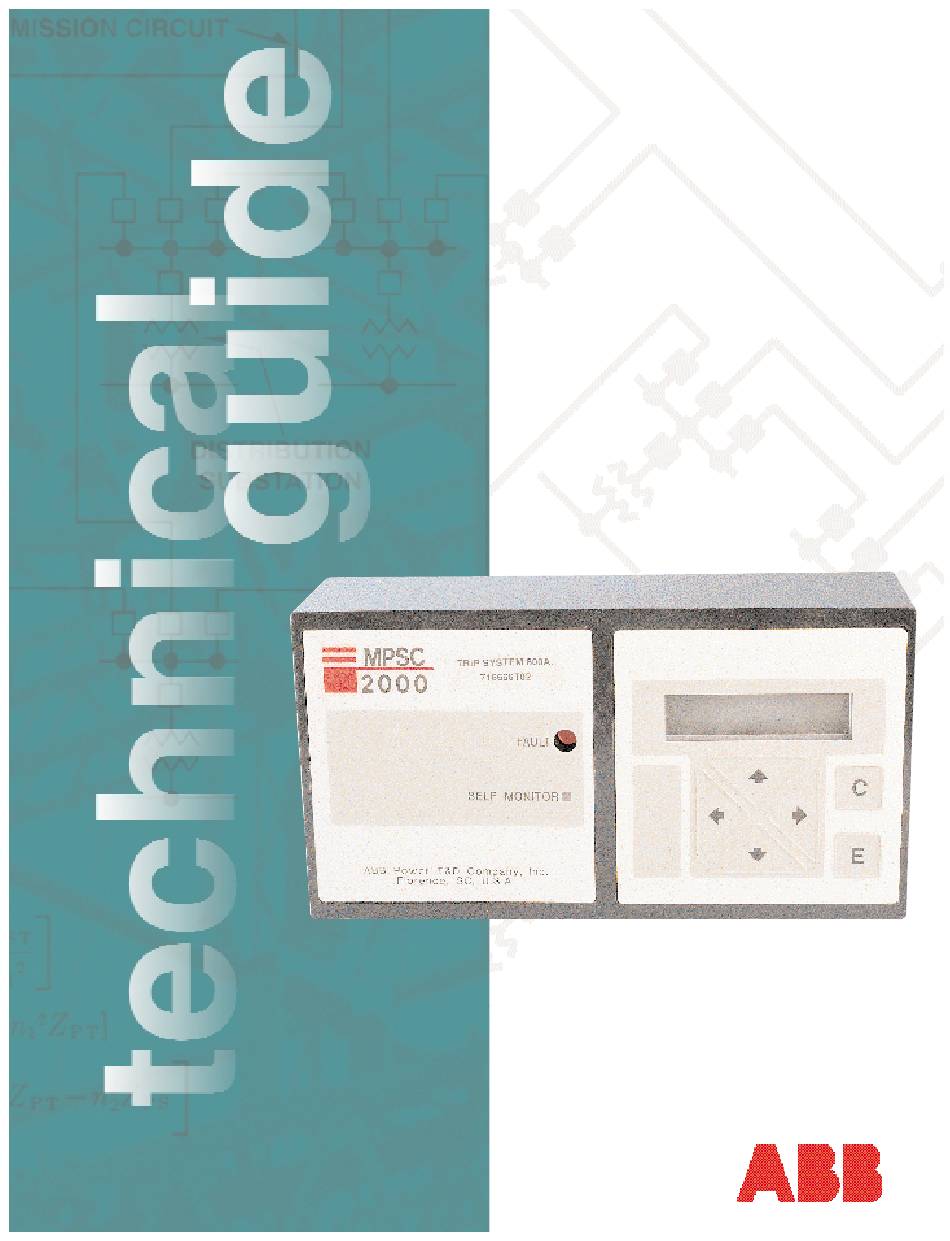

- Page 1 MPSC-2000 Microprocessor-based protection and metering devices for low voltage power circuit breakers ABB Power Distribution...
- Page 2 MPS and the programmable MPS-C trip units installed on ABB breakers for over a decade. The UL- approved MPSC-2000 also demonstrates the ABB focus on value by MPSC-2000 offers...
-
Page 3: Standard Features
Standard Features Protection MPSC-2000 is the first device to include Long Time, Short Time, Instantaneous and Ground trip protection as standard functions, all with user-selectable settings and curves. A single catalog number provides all relay characteristics - no rating plugs are required. -
Page 4: System Overview
K-Line and K-Line Plus low voltage circuit breakers... MPSC-2000 combines all of the quality and reliability you expect from the Micro Power Shield line of protection systems with the latest generation of metering and communications capabilities. MPSC-2000 is also a member... - Page 5 A current sensor is integrally mounted on each phase of the breaker to supply a value of current flowing in the MPSC-2000 which is directly proportional to the current passing through the primary circuit.
- Page 6 The compact size of the MPSC-2000 allows it to be used to retrofit virtually any low voltage power circuit breaker by any manufacturer. And the modular approach to MPSC-2000 design provides added flexibility, with a separate CT module and on-board mounting of the optional VIM.
- Page 7 Specification Guide Each low voltage power circuit breaker shall be supplied with a MPSC-2000 technical data and breaker-mounted microprocessor device with 3-phase and specification guide neutral protection, metering and communications capabilities. The device shall comply with the requirements of ANSI C37.17.
- Page 8 ABB Power T&D Company Inc. 2300 Mechanicsville Road Florence, SC 29501 +1 (843) 665-4144 +1 (843) 667-5109 (FAX) http://www.abb.com/usa email: dsinfo@ustra.mail.abb.com...
