- Page 1 Model T8 Ultrasonic Flow Transducer Installation Guide BH046C21 EN E panametrics.com...
- Page 3 Sep 2023 panametrics.com Copyright 2023 Baker Hughes company. This material contains one or more registered trademarks of Baker Hughes Company and its subsidiaries in one or more countries. All third-party product and company names are trademarks of their respective holders.
- Page 4 [no content intended for this page]...
- Page 5 Preface Services Panametrics provides customers with an experienced staff of customer support personnel ready to respond to technical inquiries, as well as other remote and on-site support needs. To complement our broad portfolio of industry-leading solutions, we offer several types of flexible and scalable support services including: Training, Product Repairs, Service Agreements and more.
- Page 6 Preface Working Area WARNING! Auxiliary equipment may have both manual and automatic modes of operation. As equipment can move suddenly and without warning, do not enter the work cell of this equipment during automatic operation, and do not enter the work envelope of this equipment during manual operation.
-
Page 7: Table Of Contents
Contents Chapter 1. Installation Introduction ........................1 Transducer construction . - Page 8 Contents [no content intended for this page] Model T8 Installation Guide...
-
Page 9: Chapter 1. Installation

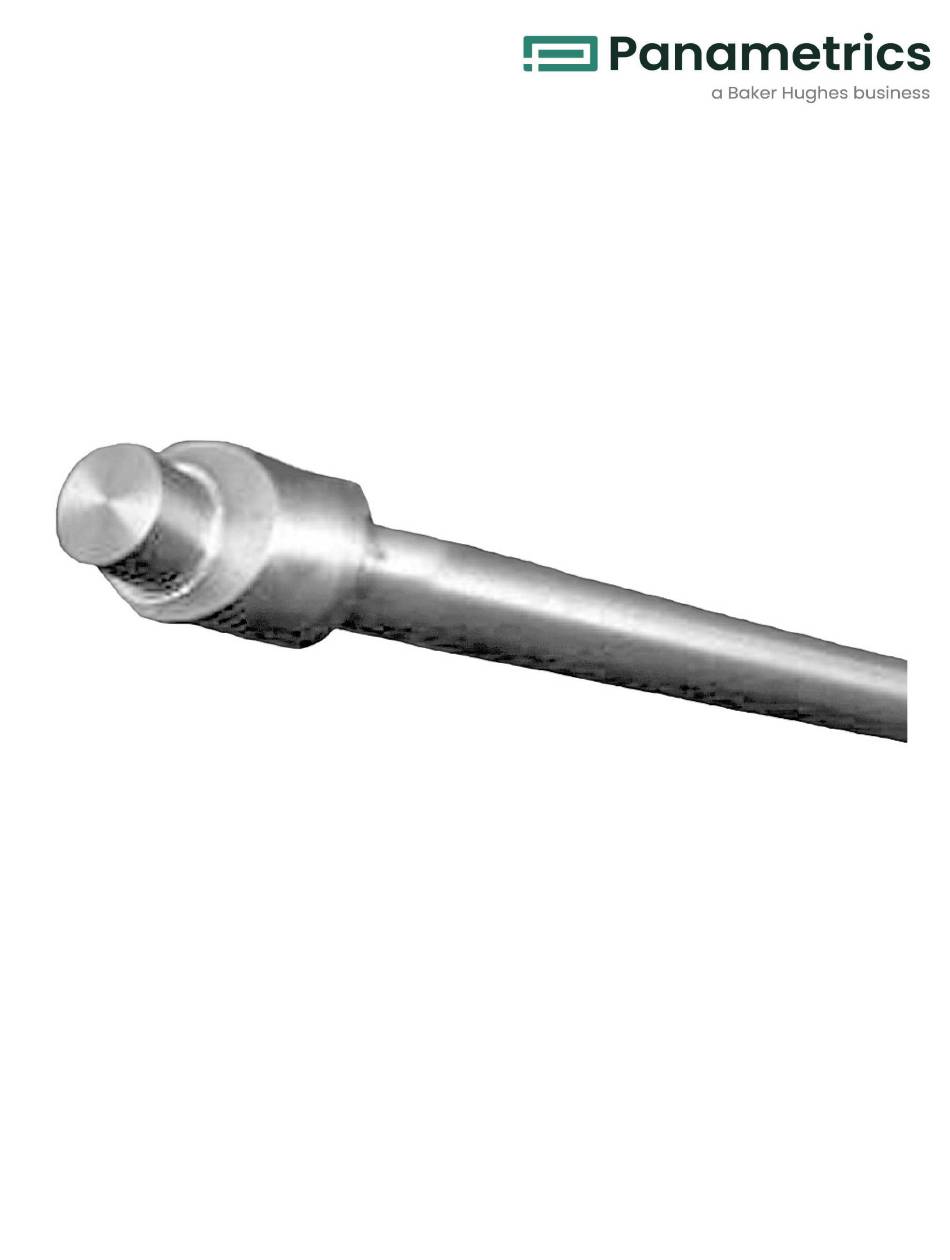

Chapter 1. Installation Chapter 1. Installation Introduction The T8 Ultrasonic Flow Transducer is used exclusively with the Panametrics line of ultrasonic flowmeters. These transducers measure the flow rate of sonically-conductive gases through pipes having diameters from 4 in. (100 mm) to 36 in. -
Page 10: Installing T8 Transducers
Chapter 1. Installation Installing T8 transducers The pressure mechanism is a piston-driven hydraulic pump used for inserting T8 transducers into pressurized pipelines. To perform this procedure safely, you must follow all the instructions in this chapter very carefully.Fi 1.3.1 Equipment needed To properly install the T8 transducers, you must provide the following items: •... - Page 11 Chapter 1. Installation Using the calculated H value, mark two crosshairs on the pipe where you intend to weld the transducer ports, so that the distance between the two marks equals the H value (see Figure 2 below). IMPORTANT: Port locations should NOT be located directly on the top or bottom of the pipe. Place the ports at between 15 degrees and 90 degrees from the vertical plane of the pipe.
- Page 12 Chapter 1. Installation WARNING! Only qualified personnel should weld bosses and nozzles, using a suitable ASME IX qualified welding procedure. Weld the 2 in., schedule 80 nozzles with pipe flanges to the two marked locations on the pipe. Be careful to maintain perpendicularity and parallelism as shown in Figure 3 below.
-
Page 13: Hot Tapping The Ports
Chapter 1. Installation Bolt a 2 in. flanged, full-port, ball valve to each nozzle (see Figure 5 below). Be sure to use a new flange gasket for each valve. Figure 5: Mounting a Ball Valve onto the Flange 1.3.3 Hot tapping the ports WARNING! Only qualified personnel should weld bosses and nozzles, using a suitable ASME IX qualified welding procedure. - Page 14 Chapter 1. Installation Place a new gasket on the top of the ball valve flange, as shown in Figure 6 below. Figure 6: Placing a gasket on the ball valve flange Bolt the hot-tapping mechanism to the 2 in. flanged ball valve, as shown in Figure 7 below. Figure 7: Securing the hot-tapping mechanism Model T8 Installation Guide...
- Page 15 Chapter 1. Installation Make sure the ball valve is fully “open” (see Figure 8 below). Figure 8: Checking the open valve Drill a 1.75 in. diameter hole through the pipe wall, as shown in Figure 9 below. Figure 9: Drilling a hole through the pipe wall Model T8 Installation Guide...
- Page 16 Chapter 1. Installation Retract the drill bit of the hot-tapping mechanism and “close” the ball valve (see Figure 10 below). Figure 10: Closing the ball valve Unbolt the hot-tapping mechanism from the ball valve and remove the mechanism from the port (see Figure 11 below).
-
Page 17: Positioning The Transducer
Chapter 1. Installation 1.3.4 Positioning the transducer Complete the steps in this section to position the T8 transducer in the hot-tapped port. Note: Keep the cover for the safety collar loosely around the transducer to allow for proper alignment. Measure the transducer length (“DD”) from the center of the transducer head to the end of the BNC connector. Figure 12: Measuring the transducer length Make sure the transducer head is fully retracted into the Low Pressure Assembly (LPA). - Page 18 Chapter 1. Installation Rotate the transducer barrel until the transducer face points in the general direction of the other port. Then, tighten the locking collar screws with a torque wrench to fasten the transducer in place. Use the maximum torque shown in Figure 14 below, but do not overtighten the screws.
- Page 19 Chapter 1. Installation Bolt the LPA mechanism to the 2 in. flanged ball valve, as shown in Figure 16 below. Figure 16: Bolting the LPA mechanism to the ball valve Model T8 Installation Guide...
- Page 20 Chapter 1. Installation Measure the “A” dimension, which is the distance from the outside surface of the pipe wall to the end of the BNC connector on the transducer (see Figure 17 below). Then, calculate the insertion distance (“I”) by using the following equation: –...
- Page 21 Chapter 1. Installation Mark the insertion distance on the shaft of the transducer, using one layer of colored electrical tape around the circumference so that the ends overlap (see Figure 18 below). Alternatively, apply any mark that is waterproof and easily identifiable.
-
Page 22: Attaching The Hydraulic Cylinder
Chapter 1. Installation 1.3.5 Attaching the hydraulic cylinder The next step in the transducer installation process is to attach the hydraulic cylinder to one of the transducer ports. Install the connector protector on the 1/2” NPT thread of the transducer shaft until it is finger-tight (see Figure 19 below). - Page 23 Chapter 1. Installation Refer to Figure 20 below and attach the hydraulic cylinder to the four studs of the LPA with four 3/8-16 hex nuts. Tighten the nuts to a maximum torque of 19 ft-lb (25 N-m). IMPORTANT: If the piston of the hydraulic cylinder touches the connector protector before the hydraulic cylinder can seat properly onto the studs, remove the hydraulic cylinder from the LPA.
- Page 24 Chapter 1. Installation Refer to Figure 21 below and attach the hose of the hydraulic pump to the hydraulic cylinder at the pipe coupler. Note: The 2 in. ball valve should be closed and the locking collar should be tightly secured to the transducer shaft. Figure 21: Attaching the hydraulic cylinder Model T8 Installation Guide...
-
Page 25: Inserting The Transducer
Chapter 1. Installation 1.3.6 Inserting the transducer After attaching the hydraulic cylinder, you are now ready to insert the T8 transducer. To prepare for pumping, rotate the side knob of the hydraulic pump clockwise to tighten it (see Figure 22 below). Slowly pump the handle of the pump until you feel resistance, then stop pumping. - Page 26 Chapter 1. Installation There are four 10-32 x 3/4 socket head screws and two 1/4-20 x 1 3/8 socket head screws on the locking collar (see Figure 23 below). Evenly loosen these screws. just enough so that the transducer can move freely. Figure 23: Loosening the socket head screws Before opening the ball valve do the following: •...
- Page 27 Chapter 1. Installation Slowly open the 2 in. ball valve and check for gas leaks: • If you discover any leaks, close the ball valve and fix the leaks. • If you do not detect any leaks, proceed to the next step. See Figure 24 below and slowly pump the hydraulic pump handle until the transducer moves to the pre-marked insertion depth, as indicated by the edge of the electrical tape touching the edge of the locking collar.
-
Page 28: Adjusting The Safety Alignment Collar
Chapter 1. Installation 1.3.7 Adjusting the safety alignment collar The next step in the transducer installation procedure is to adjust the safety alignment collar. Locate the safety alignment collar that was shipped with the T8 transducer. Use an Allen wrench to remove the two socket head cap screws and the set screw from the safety alignment collar (see Figure 25 below). - Page 29 Chapter 1. Installation Slide the safety alignment collar into the safety collar cover and position both collars so that they are touching the safety plate (see Figure 27 below). Note: If necessary, adjust the height of both screws on the safety collar cover to allow the safety alignment collar to fit into it.
-
Page 30: Removing The Hydraulic Cylinder
Chapter 1. Installation 1.3.8 Removing the hydraulic cylinder The final step in the T8 transducer installation process is the removal of the hydraulic cylinder from the port. Verify that the screws on the locking and safety alignment collars are tightened to the appropriate torque. Then, very slowly turn the side knob of the hydraulic pump counterclockwise to release the pressure of the hydraulic cylinder on the transducer shaft (see Figure 29 below). - Page 31 Chapter 1. Installation See Figure 30 below and remove the hydraulic cylinder by unscrewing the four 3/8-16 stainless steel hex nuts. Figure 30: Removing the hydraulic cylinder Unscrew and remove the connector protector (see Figure 30 above). Note: Disconnecting the hydraulic pump at the quick-disconnect pipe coupler simplifies the hydraulic cylinder removal.
- Page 32 Chapter 1. Installation Attach the pipe adapter to the 1/2” NPT thread of the transducer, and then attach the junction box to the pipe adapter. Use a wrench on the flats of the transducer body to prevent transducer rotation when installing the junction box (see Figure 31 below).
-
Page 33: Resetting Or Storing The Hydraulic Cylinder
Chapter 1. Installation Resetting or storing the hydraulic cylinder To prepare the hydraulic cylinder for its next use or for storage, you must retract the piston. Remove the safety pin and attach the guide for the push rod to the hydraulic cylinder with four 3/8-16 hex nuts (see Figure 32 below). - Page 34 Chapter 1. Installation Turn the side knob of the hydraulic pump counterclockwise to release the oil pressure (see Figure 34 below). Figure 34: Releasing the oil pressure Hold the cylinder with one hand, and push the rod with the other hand until the piston bottoms out inside the cylinder (see Figure 35 below).
- Page 35 Chapter 1. Installation Position the 0.28 in. diameter hole of the push rod to align with the 0.28 in. diameter hole of the push rod guide. Then, push the safety pin through the holes to secure the cylinder, push rod and push rod guide assembly (see Figure 36 below).
- Page 36 Chapter 1. Installation [no content intended for this page] Model T8 Installation Guide...
-
Page 37: Chapter 2. Aligning The Transducers
Chapter 2. Aligning the transducers Chapter 2. Aligning the transducers Introduction After you finish installing the T8 transducers, as described in the previous chapter, you must fine tune the transducer alignment using the procedures in this chapter. IMPORTANT: Alignment is not necessary for the T8 transducer with a 180° head. Skip this chapter. Preparing for transducer alignment To prepare for alignment of the T8 transducers, complete the following steps: Make sure the flowmeter electronics console is powered ON and that the transducers are properly connected to... -
Page 38: Aligning The Transducers
Chapter 2. Aligning the transducers Aligning the transducers To align the T8 transducers, complete the following steps: At each transducer installation point, refer to Figure 37 below and verify that: • The safety alignment collar and the cover for the safety collar are firmly against the safety plate •... - Page 39 Chapter 2. Aligning the transducers At each transducer port, evenly loosen the two 1/4-20 screws and the four 10-32 screws just enough to free the locking collar from the transducer shaft (see Figure 38 below). If the locking collar will not come loose, remove the 1/4-20 screws completely.
- Page 40 Chapter 2. Aligning the transducers Refer to Figure 39 below and continue the alignment procedure as follows: Position a wrench on the transducer flats (see Figure 38 on page 31) and rotate the transducer about one degree clockwise or counterclockwise. Observe the signal strength displayed on the flowmeter console for at least two or three readings or observe the receive signal on the oscilloscope.
- Page 41 Chapter 2. Aligning the transducers Refer to Figure 40 below and continue the alignment procedure as follows: After adjusting the transducers for the highest signal strength and the best signal quality, reinstall the two 1/4-20 screws at each transducer port and secure the locking collar by tightening the screws with a torque wrench. Use a maximum torque of 3.75 ft-lb (5 N-m) on the four 10-32 screws and 5 ft-lb (6.8 N-m) on the two 1/4-20 screws.
- Page 42 Chapter 2. Aligning the transducers [no content intended for this page] Model T8 Installation Guide...
-
Page 43: Chapter 3. Removing The Transducers
Chapter 3. Removing the transducers Chapter 3. Removing the transducers Introduction To safely remove the T8 transducers from the process line, you must follow the instructions in this chapter very carefully. WARNING! Make sure the flowmeter power is disconnected before performing the procedures in this chapter. - Page 44 Chapter 3. Removing the transducers Attach the hydraulic cylinder to the four studs on the LPA, using four 3/8-16 stainless steel nuts (see Figure 42 below). Tighten the four 3/8-16 stainless steel hex nuts to a maximum torque of 19 ft-lb (25 N-m). Note: Disconnecting the hydraulic pump at the “quick disconnect”...
-
Page 45: Removing The Transducer
Chapter 3. Removing the transducers Removing the transducer After attaching the hydraulic cylinder, refer to Figure 43 below and complete the following steps: To prepare for pumping, rotate the side knob of the hydraulic pump clockwise to tighten it. Slowly pump the handle of the pump to bring the piston into contact with the connector protector. When you feel resistance, stop pumping the handle. - Page 46 Chapter 3. Removing the transducers Refer to Figure 44 below and continue as follows: Use an Allen wrench to remove the set screw from the safety alignment collar. Evenly loosen the two 1/4-28 x 5/8 socket head cap screws with an Allen wrench just enough to slide the safety alignment collar out of the cover.
- Page 47 Chapter 3. Removing the transducers Refer to Figure 45 below and check the condition of the insertion depth marker. If it was erased or otherwise damaged, replace the marker with one layer of colored electrical tape around the transducer circumference until the ends overlap.
- Page 48 Chapter 3. Removing the transducers Refer to Figure 47 below and continue as follows: After the locking collar is loose, very slowly turn the side knob of the hydraulic pump counterclockwise to release the pressure and allow the transducer to slowly slide out of the flange. 10.
-
Page 49: Disconnecting The Hydraulic Cylinder
Chapter 3. Removing the transducers Disconnecting the hydraulic cylinder To remove the hydraulic cylinder, refer to Figure 48 below and complete the following steps: Tighten the locking collar screws with a torque wrench to secure the transducer in place. Use the maximum torque listed in Figure 48 above, but do not overtighten the screws.. - Page 50 Chapter 3. Removing the transducers Refer to Figure 49 below and continue as follows: Disconnect the hydraulic cylinder from the hydraulic pump at the quick disconnect. Remove the four 3/8-16 hex nuts to detach the hydraulic cylinder from the four studs of the LPA. Unbolt and remove the LPA/transducer assembly from the 2”...
-
Page 51: Chapter 4. Specifications
Chapter 4. Specifications Chapter 4. Specifications T8 transducer physical specifications Applications: High-Pressure Applications with an Insertion Retraction Mechanism, Natural Gas Installation Type: Wetted Material: Titanium Field Mounting: Flowcell, Hot or Cold Tap Process Connection: Flanged, 2 in. (50 mm ) Holder Type: High-Pressure Insertion Mechanism Holder Ratings:... -
Page 52: Specific Conditions Of Use
Chapter 4. Specifications Specific conditions of use Consult the manufacturer if dimensional information on the flameproof joints is necessary. It is end-user’s responsibility to ensure that the ambient around the T8 assembly does not exceed the permitted ambient of -40°C to +60°C, regardless of process temperature. The T8 transducers made of titanium (where ff = Ti) are potential ignitions sources when subjected to impact or friction, which shall be taken into consideration during installation. - Page 53 Warranty Warranty Each instrument manufactured by Panametrics Sensing is warranted to be free from defects in material and workmanship. Liability under this warranty is limited to restoring the instrument to normal operation or replacing the instrument, at the sole discretion of Panametrics Sensing. Fuses and batteries are specifically excluded from any liability.
