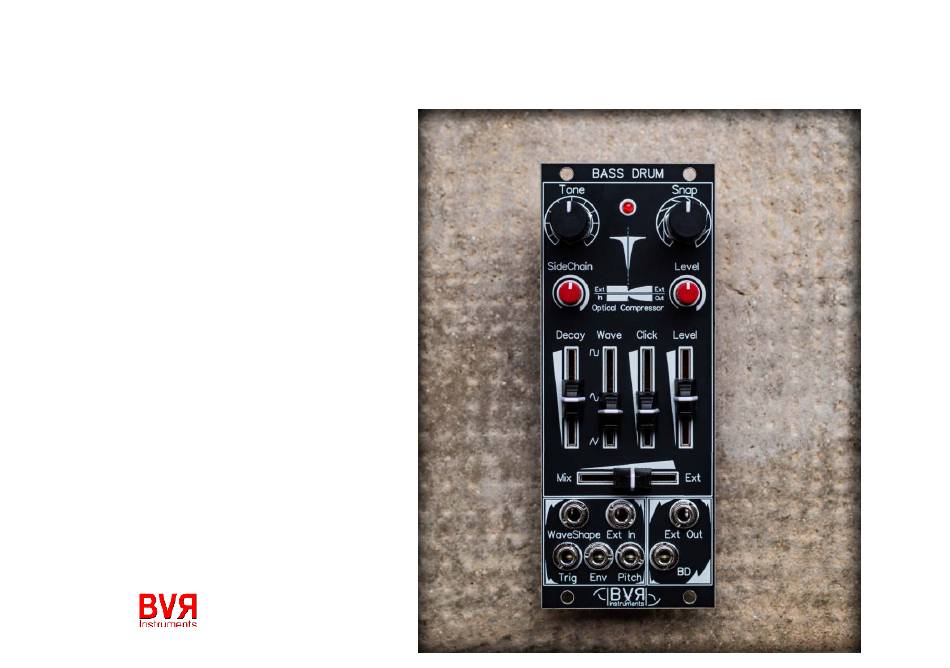

  • Page 1 BASS DRUM Manual...

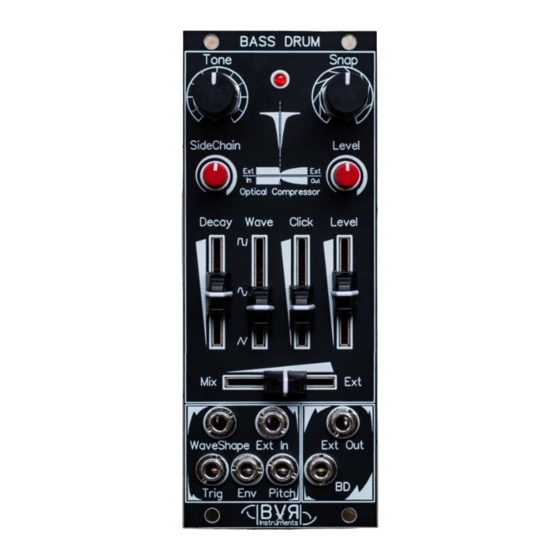

  • Page 2 Bass Drum The Bass Drum is a versatile drum module designed to recreate the iconic bass drum sounds of the 808 and 909 drum machines and more. It includes a side-chain compressor for seamlessly blending external audio sources with the bass drum sound.
  • Page 3 Both Signals are routed to two separate VCA. BD is the main output and controlled by Level Slider The bass drum includes a « Decay » slider for drum's duration. Additionally, external CV« Env » provide extra control through an external envelope or modulation source.
  • Page 4 Side-Chain signal path The integrated optical side-chain compressor is fed with and external audio source connected to « Ext In ». The bass drum envelope signal controls the shape of volume reduction, the « SideChain » potentiometer determines the extent of this reduction. The « Level » potentiometer is used to adjust the output signal after reduction.
  • Page 5 5 sliders for Decay, Wave, Click, Level, Mix Ext. Inputs CV inputs: Trig trigger the Bass Drum, Ext In receive Audio signal to be compressed. CV modulators: WaveShape, Env and Pitch responds to voltage from 0 to 5V. Note: Pitch CV does not respond to 1V/Octave.
