User manual
KNX Gateway for IR _V1.2
KNX Gateway for IR,Flush mounted,2-Fold
BTIRF-02/00.2
KNX Gateway for IR,Ceiling
BTIRC-01/00.2
KNX/EIB Home and Building Control System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTIRF-02/00.2 and is the answer not in the manual?

Questions and answers

Summary of Contents for K-BUS BTIRF-02/00.2

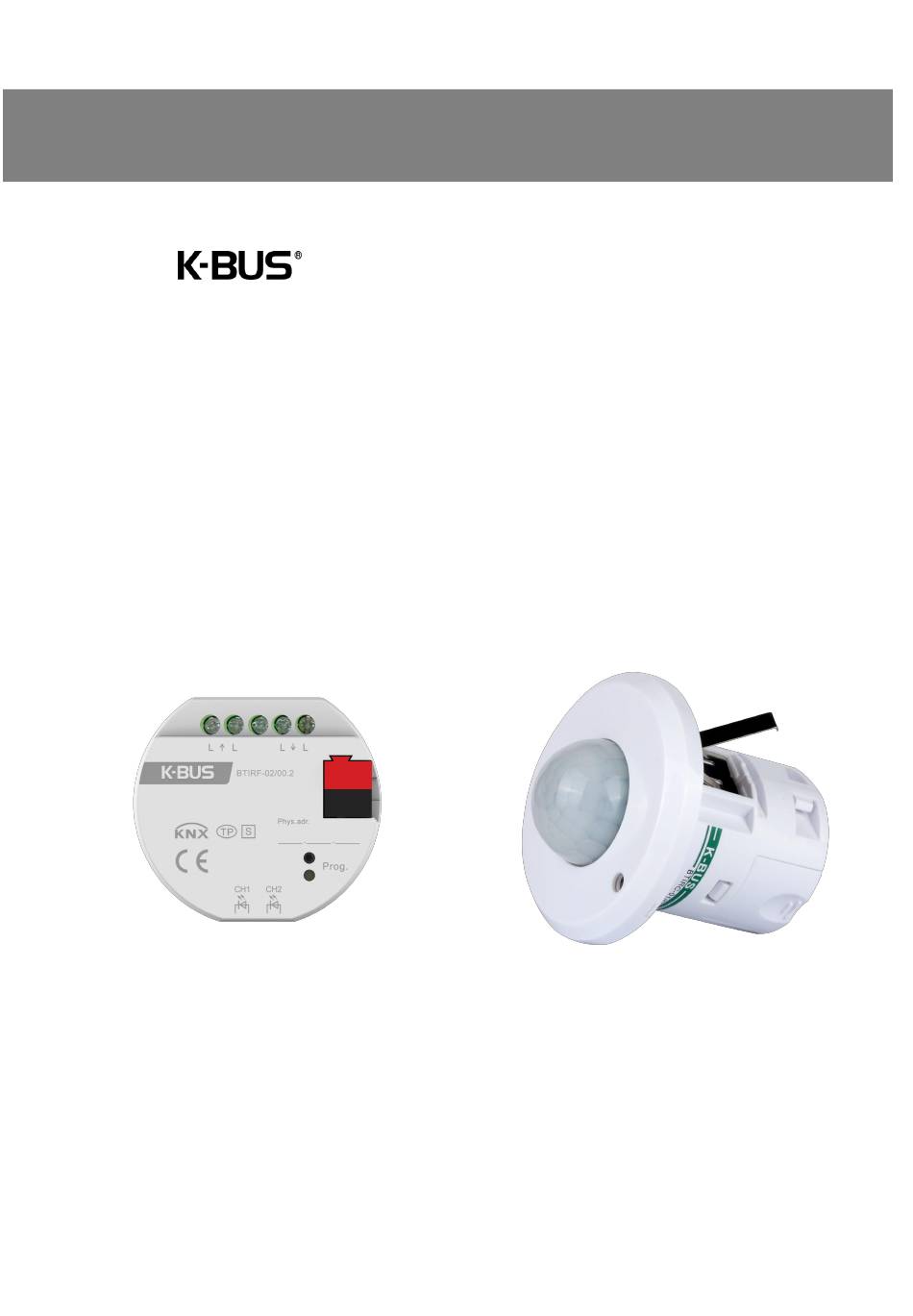

  • Page 1 User manual KNX Gateway for IR _V1.2 KNX Gateway for IR,Flush mounted,2-Fold BTIRF-02/00.2 KNX Gateway for IR,Ceiling BTIRC-01/00.2 KNX/EIB Home and Building Control System...
  • Page 2 Attentions 1. Please keep devices away from strong magnetic field, high temperature, wet environment; 2. Do not fall the device to the ground or make them get hard impact; 3. Do not use wet cloth or volatile reagent to wipe the device; 4.

  • Page 3: Table Of Contents

    Contents Chapter 1 General ............................1 Chapter 2 Technical Data ..........................3 2.1 KNX Gateway for IR,Flush mounted,2-Fold (BTIRF-02/00.2) ............... 3 2.2 KNX Gateway for IR,Ceiling (BTIRC-01/00.2) ..................4 Chapter 3 Dimension and Connection Diagram ..................... 5 3.1 Dimension diagram ..........................5 3.2 Connection diagram ..........................

  • Page 4: Chapter 1 General

    IR remote control devices such as fan, Air-condition,TV, DVD and etc. KNX Gateway for IR includes KNX Gateway for IR,Flush mounted,2-Fold (BTIRF-02/00.2) and KNX Gateway for IR,Ceiling (BTIRC-01/00.2). Each product has 2 IR emission channels which can be set as universal IR control or Air-condition control, up to store 300 different IR codes.
  • Page 5 KNX/EIB KNX Gateway for IR The functions of KNX gateway for IR are summarized as followed: Support Universal IR control, up to 30 IR codes can be configured for each channel  Support Air-condition control, up to 266 IR codes can be configured, control functions ...

  • Page 6: Chapter 2 Technical Data

    KNX Gateway for IR Chapter 2 Technical Data 2.1 KNX Gateway for IR,Flush mounted,2-Fold (BTIRF-02/00.2) The extremely compact design enables the KNX gateway for IR to be inserted into a conventional 80mm or 86mm wiring box. Attention: the Infrared emitter of the KNX gateway for IR must be installed in range that the IR device can detect normally, to avoid no action.

  • Page 7: Knx Gateway For Ir,Ceiling (Btirc-01/00.2)

    KNX/EIB KNX Gateway for IR 2.2 KNX Gateway for IR,Ceiling (BTIRC-01/00.2) The extremely compact design enables the KNX Gateway for IR to be mounted in the ceiling. 360° full direction transmitting. Attention: the Infrared emitter of the KNX gateway for IR must be installed in range that the IR device can detect normally, to avoid no action.

  • Page 8: Chapter 3 Dimension And Connection Diagram

    KNX/EIB KNX Gateway for IR Chapter 3 Dimension and Connection Diagram 3.1 Dimension diagram Fig.3.1(1) KNX Gateway for IR,Flush mounted,2-Fold (BTIRF-02/00.2) Fig.3.1(2) KNX Gateway for IR,Ceiling (BTIRC-01/00.2)

  • Page 9: Connection Diagram

    KNX/EIB KNX Gateway for IR 3.2 Connection diagram Fig.3.2(1) KNX Gateway for IR,Flush mounted,2-Fold (BTIRF-02/00.2) ①Programming LED ②Programming button ③KNX bus connection terminal ④Device load connection terminals, if require current detection ⑤Connectors for Infrared emitter cable ⑤ ④ Fig.3.2(2) KNX Gateway for IR,Ceiling (BTIRC-01/00.2) ①KNX bus connection terminal...

  • Page 10: Chapter 4 Project Design And Application

    KNX/EIB KNX Gateway for IR Chapter 4 Project design and Application Max.number of Max. Number of Max. number of Application communication group address associations objects KNX Gateway for IR,Flush mounted,2-Fold/1.0 KNX Gateway for IR,Ceiling/1.0 General Setting General setting includes device In operation setting and channel function setting. In operation setting is used for indicating whether the device application layer running normally.
  • Page 11 KNX/EIB KNX Gateway for IR Air-condition device control Support the similar control way of universal Air-condition gateway, that is built-in status save and logic operation, can be controlled independently; Support the function control and the status feedback: Air-condition switch, setpoint temperature, modes, fan speed, and swing;...

  • Page 12: Chapter 5 Parameter Setting Description In The Ets

    KNX/EIB KNX Gateway for IR Chapter 5 Parameter setting description in the ETS This chapter takes KNX Gateway for IR,Flush mounted,2-Fold as example to explain the ETS system parameter setting of KNX gateway for IR. And the Ceiling and the Flush mounted are mainly different in without current detection function.

  • Page 13: Parameter Window "General Setting

    KNX/EIB KNX Gateway for IR 5.2 Parameter window “General setting” Fig.5.2“General setting” parameter window Parameter “Send cycle of “In operation”telegram [1...240s, 0 = inactive]” This parameter is for setting the time interval when this module cycle send telegrams through the bus to indicate this module in normal operation.
  • Page 14 KNX/EIB KNX Gateway for IR Parameter “Check current status when emitting” This parameter is visible when channel function is selected as “Universal IR control”. Set whether to connect with current detection status. It decides the On or Off status of the controlled device according to the current status, to avoid false triggering when the same IR code is used for On and Off.

  • Page 15: Parameter Window "Channel X " (X=1, 2)

    KNX/EIB KNX Gateway for IR Function setting Parameter “Sequence mode function” This parameter is for setting whether to enable sequence mode function, display the relevant window after selected. Parameter “Current detection function” This parameter is for setting whether to enable current detection function, display the relevant window after selected.
  • Page 16 KNX/EIB KNX Gateway for IR Parameter “IR control x”(x=1~30) This parameter is for setting whether to enable IR control, display the relevant window after selected. Each channel up to support 30 IR controls. Parameter “Description (max 30char.)” This parameter is for setting the custom description of IR code, and the description of corresponding setting window and object name will also change.
  • Page 17 KNX/EIB KNX Gateway for IR Parameter “Emitting IR code when current status is” This parameter is visible when the current detection status is selected “Local” or “External”. Set whether to emit IR code according to the current status. Options: 1 [On] 0 [Off] Both 1 and 0 1 [On]: if current status is ON, emit IR code, otherwise not.

  • Page 18: Parameter Window "Air-Condition Control Setting

    KNX/EIB KNX Gateway for IR 5.3.2. Parameter window “Air-condition control setting” Fig.5.3.2(1) “Air-condition control setting” parameter window...
  • Page 19 KNX/EIB KNX Gateway for IR Fig.5.3.2(2) “Air-condition control setting” parameter window 参数“Remote model NO.” This parameter is for setting the remote model number of Air-condition. Options: 0..255 Note: This parameter is a preset parameter. Do not support to input remote model number currently.
  • Page 20 KNX/EIB KNX Gateway for IR Initial configuration for ON Note: If the configuration of the initial status is not consistent with the IR code learned by ON, there will be inconsistencies in the status of the realized control and the feedback from the device to the bus.
  • Page 21 KNX/EIB KNX Gateway for IR ——Parameter “Swing” This parameter is visible when enable swing control. Set the action of swing when power on. Options: Swing Stop Parameter “Object datatype of setpoint temperature” This parameter is for setting object datatype of setpoint temperature. Options: 1byte (real temperature value) 2byte (knx standard DPT) Parameter “Min.
  • Page 22 KNX/EIB KNX Gateway for IR Parameter “AC status response object” This parameter is for setting whether to enable the AC status response object. When enabled, the status objects of switch, fan speed, mode, setpoint temperature and swing are visible. And they will send initial status to the bus when bus power on.
  • Page 23 KNX/EIB KNX Gateway for IR Fan speed control setting ——Parameter “Control value for fan speed auto/low/medium/high/auto” These parameters are for setting the control values sent by each fan speed. According to object datatype, the range of control value: 0..255 / 0..100 ——Parameter “Status value for fan speed auto/low/medium/high/auto”...
  • Page 24 KNX/EIB KNX Gateway for IR Fig 5.3.2 (3) IR code library The parameter setting windows of IR code number assignment of each combination control function following, take these windows example explain. Auto/Fan/Dehumidification modes do not have adjustment of setpoint temperature, therefore, these three modes settings are similar.
  • Page 25 KNX/EIB KNX Gateway for IR Fig.5.3.2(4) “Heat-Fan auto-No Swing” parameter window 参数“1->Assign IR code NO. [1..300]” This parameter is for setting the IR code number corresponding to the combination function at each setpoint temperature. Options: 1..300 参数“Temperature” This parameter notes the setpoint temperature contained in this IR code, but the control function is indicated in the title of the parameter window (view on the left side of parameter configuration window).

  • Page 26: Parameter Window "Sequence Mode Setting

    KNX/EIB KNX Gateway for IR 5.4 Parameter window “Sequence mode setting” Fig.5.4(1) “Sequence mode setting” parameter window Fig.5.4(2) “Sequence combination 1” parameter window...
  • Page 27 KNX/EIB KNX Gateway for IR Parameter “Sequence combination 1”(x=1~16) This parameter is for setting whether to enable sequence combination control function, display related setting windows after selected. Up to support 16 sequence combination controls. A sequence up to support 4 command settings. For example, a remote control fan, we can set a delay time for the command to execute gradually.
  • Page 28 KNX/EIB KNX Gateway for IR Parameter “Enable step x command”(x=1~4) This parameter is for setting whether to enable command x(x=1~4). The setting of command x is visible when enabled. Options: Disable Enable ——Parameter “IR code NO. for emitting [1..300]” This parameter is for setting the emission IR coed of command x, which is configured by configuration software tool or DCA.

  • Page 29: Parameter Window "Current Detect Setting

    KNX/EIB KNX Gateway for IR 5.5 Parameter window “Current detect setting” Note: Only the Flush mounted supports current detection function, and the Ceiling not displays this window. Fig.5.5 “Current detect setting” parameter window Internal current detect setting Parameter “Object datatype of current detection” This parameter is for setting the object datatype of current detection value.
  • Page 30 KNX/EIB KNX Gateway for IR ——Parameter “Value send after the changed [1..2000]mA” This parameter is visible when select “Send on change”. Set the change value that sending current detection value should be reached. Options: 1..2000 For example, set 50mA. When the current value is 100mA, it need that the current current value is more than 150mA or less than 50mA can send the current current value to the bus.

  • Page 31: Chapter 6 Communication Object Description

    KNX/EIB KNX Gateway for IR Chapter 6 Communication Object Description The communication object is the medium through which the device communicates with other devices on the bus, that is, only the communication object can perform bus communication. The function of each communication object of each function block is described in detail below. Note: “C”...

  • Page 32: Universal Ir Code Control" Communication Object

    KNX/EIB KNX Gateway for IR 6.2 “Universal IR code control” communication object Fig.6.2 “Universal IR code control” communication object Object Function Name Data Type Flag 1bit 1.001 switch IR Control trigger value CH1-{{IR control 1}}: Input C,W,U 1byte 5.010 counter pulses This communication object is used to receive trigger value of IR code.
  • Page 33 KNX/EIB KNX Gateway for IR Object Function Name Data Flag Type Power on/off CH1-{{AC}}: Input 1bit C,W,U 1.001 switch This communication object is used to control switch status of Air-condition via the bus. Telegram value: 1——On/0——Off The name in parentheses{{}} changes with the parameter “Description (max 30 char.)”. If description is empty, display “...AC...”...

  • Page 34: Sequence Mode" Communication Object

    KNX/EIB KNX Gateway for IR 1byte 5.010 counter pulses Current temperature setpoint CH1-{{AC}}: Status C,R,T 2byte 9.001 temperature This communication object is used to feedback actual setpoint temperature value of Air-condition to the bus. Object datatype is set by parameter. Control mode CH1-{{AC}}: Status 1byte...

  • Page 35: Current Detect" Communication Object

    KNX/EIB KNX Gateway for IR 6.5 “Current detect” communication object Fig.6.5 “Current detect” communication object Object Function Name Data Flag Type Switch ON/OFF Current detection 1bit C,R,T 1.001 switch This communication object is used to send switch status of the device current detection to bus. 7.012 current (mA) Current value(mA) Current detection...
