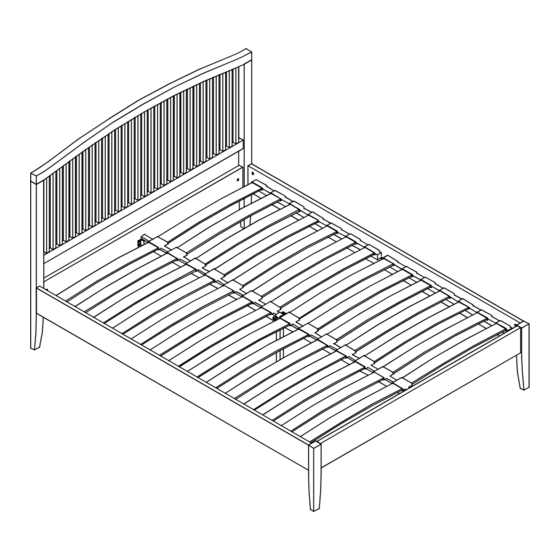

ASHBY 1 35CM & 1 50CM BEDSTEAD
Thank you for purchasing this product . Please read the instructions carefully before use to ensure safe and
satisfactory operation of this product.
Pre-assembly preparation
Please ensure instructions are read in full before attempting to assemble this product.
Necessary Tools
A cross head screwdriver only should be used to assemble this product, an electric drill may cause damage to
the product and is not recommended.
Please check the pack contents before attempting to assemble this product. A full checklist of components is
given in this leaflet . If any components are missing, please contact the retailer from whom you bought this
product.
This product takes approximately 50 MINUTES to assemble with 2 PEOPLE.
All assembly should be performed on a flat, stable, clean and soft surface.
This product is HEAVY , it should be assembled as near as possible to the point of use. TAKE CARE
WHEN LIFTING to avoid personal injury and (or) damage to the product
The fitting pack contains SMALL ITEMS which should be KEPT AWAY FROM YOUNG CHILDREN.
IMPORTANT: Retain these instructions for future reference.
Pozi
Stock Number: 7900-43/ 44
Page : 1
IW- 1 7-7900-524/525-0
Advertisement
Summary of Contents for ASHBY 7900-43
- Page 1 ASHBY 1 35CM & 1 50CM BEDSTEAD Stock Number: 7900-43/ 44 Thank you for purchasing this product . Please read the instructions carefully before use to ensure safe and satisfactory operation of this product. Pre-assembly preparation Please ensure instructions are read in full before attempting to assemble this product.
- Page 2 7 x 28 Page : 2 IW- 1 7-7900-524/525-0...
- Page 3 Fittings and parts checklist Description Qty. Description Qty. Item Item Right leg Headend Sprung slat Left side rail x 28 Right side rail Center rail Adjustable metal center leg Footend Left leg Flat head screw Bracket Ø4x 1 7mm Steel dowel x 1 0 Grub screw x 1 0...
- Page 4 Step By Step Assembly Instructions Step 1 . 1 : Lay all parts on a flat, stable, clean and soft surface. 1 .2 : Attach bracket (A) to the pre-drilled holes on headend ( 1 ) using 4x flat head screws (B) as shown.
- Page 5 Step By Step Assembly Instructions Step 3 : Attach 6x steel dowels (C) into the pre-drilled holes on left & right legs (5) & (6) as shown. Ensure the direction of the holes on fittings (C) are facing correctly as per diagram. Use a pozi screwdriver to turn fittings (C) clockwise to fix.
- Page 6 Step By Step Assembly Instructions Step 4 4. 1 : Attach left & right legs (5) & (6) onto footend (4) as shown. Ensure steel dowels (C) are aligned correctly with the holes of mating parts before attaching. 4.2 : Secure left & right legs (5) & (6) to footend (4) using 1 x grub screw (D) as shown. Use a screwdriver to turn fitting (D) clockwise to fix.
- Page 7 Step By Step Assembly Instructions Step 6 6. 1 : Remove the bracket from adjustable metal center leg (9) by using allen key (E) to turn 2x hex head bolts counter clockwise as shown. 6.2 : Place adjustable metal center leg (9) onto center rail (8) then secure the bracket back onto metal center leg (9) using the previously removed 2x hex head bolts as shown.
- Page 8 Step By Step Assembly Instructions Step 7 7. 1 : Insert 28x end plastic sleeves (G) onto one end of 28x sprung slats (7) and thereafter insert the other ends of all parts (7) into both sides of 1 4x center plastic sleeves (F) as shown. 7.2 : Secure the previously assembled 1 4x sprung slat sets into the pre-drilled holes on wood supports of side rails (2) &...
-
Page 9: Care And Maintenance
Care and Maintenance Wood Furniture Wood displays different grain patterns depending on which way they are cut - for example, the 'medullary ray' which can appear on oak furniture is a mark of good quality timber - these are just characteristics of the natural beauty of the wood.
