Vonets VAR11N-300 Quick Start Manual

Mini wifi adapter
Hide thumbs Also See for VAR11N-300:
1
2
3
4
5
6

Advertisement

Table of Contents

VONETS Mini Wifi Adapter
VAR11N-300
http://www.vonets.com/ProductViews.asp?D_ID=17#
We highly recommend using a LAN cable to connect your Scolia unit to your
router, as it offers the best and most stable connection. However, certain situations
may make it impractical or impossible to use a LAN cable – the VONETS Mini Wifi
Adapter is a quick and clean solution for these cases.
Please keep in mind that the basic requirement for the Mini Wifi Adapter is a stable,
strong WiFi network available in your room.
SETUP GUIDE
The setup of the VONETS Mini Router is quick and easy.

1. Connect the Mini Wifi Adapter to the power supply

You can easily do this by connecting its USB cable to the fourth USB port on your
Scolia processing unit (the charging port in case you have a Pro system).
Wait for the system to boot up. As soon as the second blue LED starts blinking fast,
the device is ready and you can start configuring it.
2. Login to the Mini Wifi Adapter's interface
Open the WiFi settings of your tablet/phone and join the VONETS WiFi connection.
The default password is 12345678. Open your Internet browser and enter the IP
address 192.168.253.254.
Log in to the interface of the router.
Enter the default username: admin
password: admin

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VAR11N-300 and is the answer not in the manual?

Questions and answers

Related Manuals for Vonets VAR11N-300

Summary of Contents for Vonets VAR11N-300

  • Page 1 We highly recommend using a LAN cable to connect your Scolia unit to your router, as it offers the best and most stable connection. However, certain situations may make it impractical or impossible to use a LAN cable – the VONETS Mini Wifi Adapter is a quick and clean solution for these cases.
  • Page 2 3. Configure the Mini Wifi Adapter In the menu, select Wizard. You want to use the Mini Wifi Adapter as a WiFi bridge for your Scolia, so select the WiFi Bridge operation mode.
  • Page 3 In the Wifi Hotspots menu, wait until the device searches for all available WiFi networks. Choose the SSID of your own WiFi network and enter its password. Tap on the Apply button.
  • Page 4 The data has now been transferred to the router. Now reboot the Mini Wifi Adapter with the Reboot button below. This will change its operating mode from Router to WiFi Bridge. If you see the green LED on the Mini Wifi Adapter, it means it has restarted in WiFi Bridge operating mode.

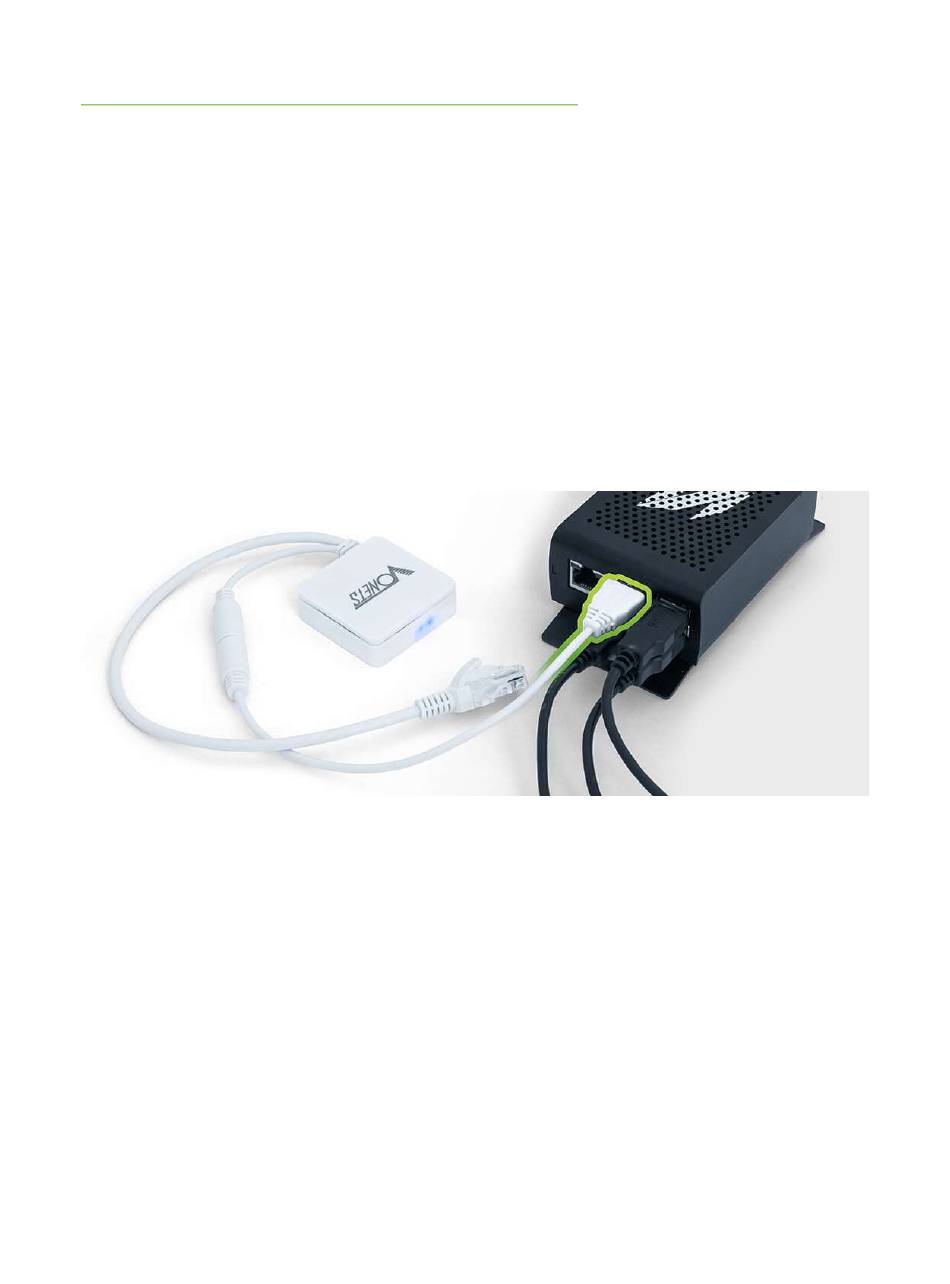

  • Page 5 4. Connect the Mini Wifi Adapter’s LAN cable to the Scolia processing unit When the VONETS Mini Wifi Adapter has found a WiFi network, you will see the fast blinking blue LED again and now the configuration of the mini-router is complete.
  • Page 6 + 1. Reset If you have not done the configuration correctly and couldn’t join your WiFi network, you can repeat the process. Press and hold the Reset button on the Mini Wifi Adapter’s side for 5 seconds. The device will restart and the default configuration settings will be restored.
