Summary of Contents for Osstem DC20

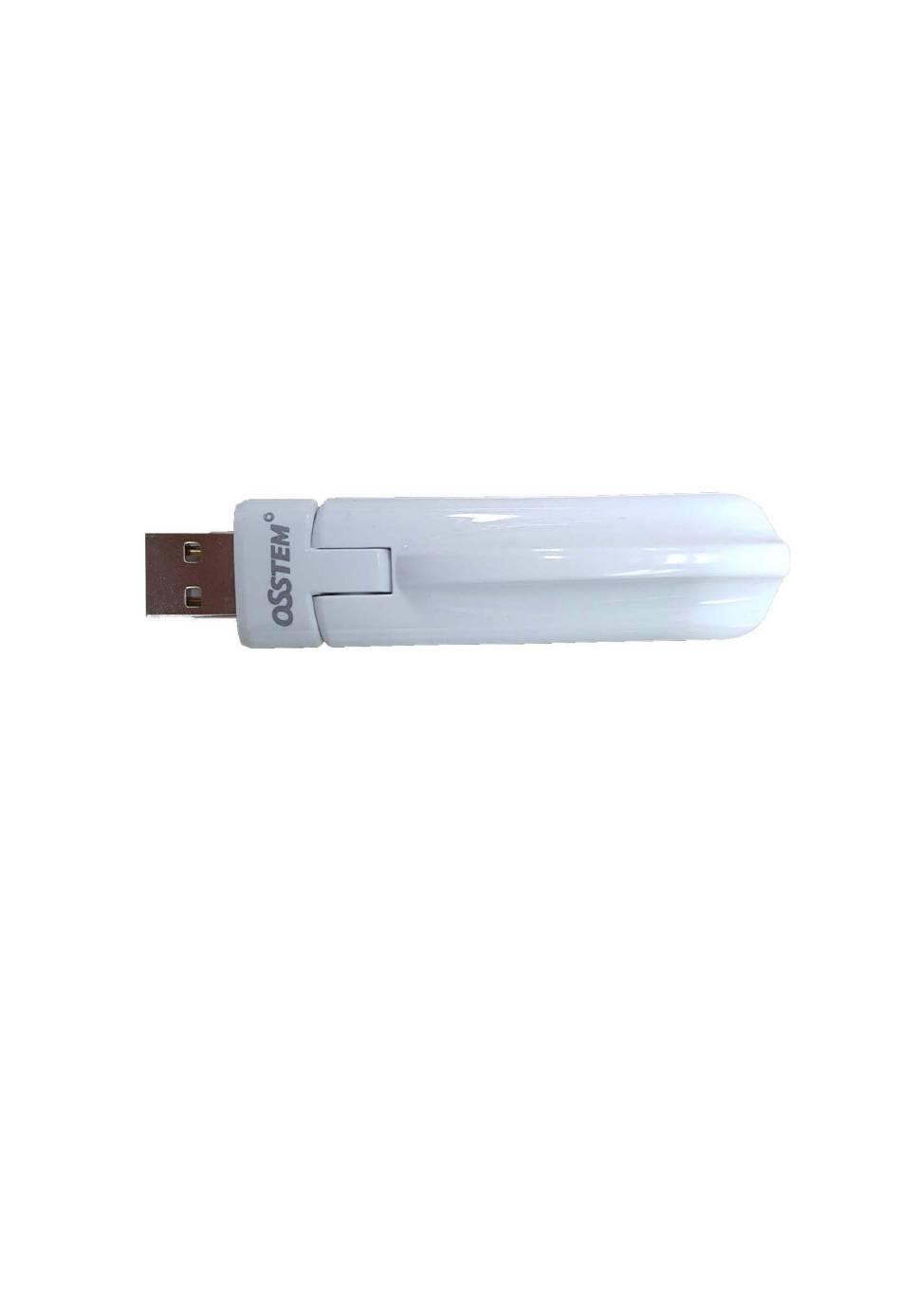

- Page 1 User’s manual DC20 V1.0 1 of 14 DC20 Dongle...
- Page 2 2 of 14 DC20 Dongle...
- Page 3 The changes or substitutions of the antennas which are furnished with the device is prohibited. UWB devices may not be employed for the operation of toys. Operation onboard an aircraft, a ship or satellite is prohibited. 3 of 14 DC20 Dongle...
- Page 4 This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 4 of 14 DC20 Dongle...
- Page 5 This device may not be installed into road or rail vehicles. This product is sold to all CE countries. Declaration of conformity We, DANBITECH CO.,LTD. of 120,Daeseong-ro 180beon-gil, Sangdang-gu, Cheongju-si, Chungcheongbuk-do, Republic of Korea declare under our sole responsibility that our product. 5 of 14 DC20 Dongle...
-
Page 6: Table Of Contents
Summaries ....................................8 Features ....................................8 Flexible use ..................................8 Application ..................................8 Description ..................................8 S/W installation ..................................9 Connecting Wireless USB dongle to USB port ......................11 Cautions ...................................... 13 DC20 specification ................................14 6 of 14 DC20 Dongle... -
Page 7: Package Components
50 MB of available disk space Microsoft® Windows® XP (32-bit edition) with SP2/SP3, or Microsoft® Windows Vista® (32-bit or 64-bit editions) with SP1 or Microsoft® Windows 7, 8 ® (32-bit or 64-bit editions). 7 of 14 DC20 Dongle... -
Page 8: Summaries
Device Side Radio: Monitors, Projectors, Docking Stations, Hard Drives Description The DC20 UWB Radio Module is a pre-test radio module which can be used for both host and device side applications. It supports both driver based solutions with Alereon’s Wireless USB Manager User application for Microsoft operating systems or Alereon’s NoWire™... -
Page 9: S/W Installation
USB 2.0 downstream interface to USB devices. The DC20 is a versatile design that can support a variety of applications. There are several different Firmware (FW) options that can be selected depending on the specific application and product feature set requirements. - Page 10 Click the finish and complete the wireless manager program. Reboot the computer after finishing the installation. 10 of 14 DC20 Dongle...
-
Page 11: Connecting Wireless Usb Dongle To Usb Port
New hardware device installation message is showed in the tray. Please wait until completing of the installation. If new device installation is completed, click the “wireless Connection Manager” for running the program. Then you can see the connectable imaging device. ( Wireless Connection Manager icon) 11 of 14 DC20 Dongle... - Page 12 12 of 14 DC20 Dongle...
-
Page 13: Cautions
USB dongle and receiver device, the radio performance will be decreased much. Any obstacle objects should not be between USB dongle and receiver. The operating range is 5~10m and it can be varied according the environment. 13 of 14 DC20 Dongle... -
Page 14: Dc20 Specification
DC20 specification Wireless USB dongle Model Name DC20 Wireless Technology UWB(Ultra Wide Band)/IEEE 802.15.3a Data rate 53.3~480Mbps Band Group (BG) for USA 3 (6.336 GHz ~ 7.920 GHz) Band Group (BG) for Europe 3 (6.336 GHz ~ 7.920 GHz) PC interface USB 2.0...
