- Page 1 OPERATING INSTRUCTIONS AND SYSTEM DESCRIPTION FOR THE AUDIS-01D/2-16 AUDIO MONITOR With THRESHOLD Control VERSION 1.7 npi 2021 npi electronic GmbH, Bauhofring 16, D-71732 Tamm, Germany Phone +49 (0)7141-9730230; Fax: +49 (0)7141-9730240 support@npielectronic.com; http://www.npielectronic.com...
- Page 2 AUDIS-01D/2-16 User Manual _______________________________________________________________________________________________________________ Table of Contents 1. Safety Regulations ......................3 2. AUDIS-01D/2-16 ........................ 4 2.1. Description of the Front Panel and Operation ............. 4 2.2. Description of the Rear Panel ..................5 3. Technical Data ........................6 ___________________________________________________________________________ version 1.7...
- Page 3 (e.g. for diagnosis or treatment of humans), or for any other life-supporting system. npi electronic disclaims any warranties for such purpose. Equipment supplied by npi electronic must be operated only by selected, trained and adequately instructed personnel.

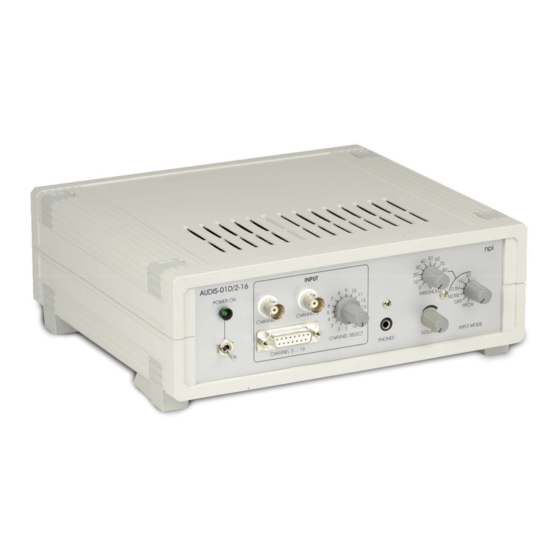

- Page 4 _______________________________________________________________________________________________________________ 2. AUDIS-01D/2-16 The AUDIS-01D/2-16 is a digital acoustic monitor in a small desktop cabinet with a built-in loudspeaker and two audio modes. In PITCH mode the voltage input signal is converted to a tone, and in NOISE mode the signal is highpass filtered to monitor the noise. A THRESHOLD function (in NOISE mode) can be used for masking the noise of the baseline.
- Page 5 AUDIS-01D/2-16 User Manual _______________________________________________________________________________________________________________ (5) CHANNEL 2 INPUT connector BNC connector for connecting the input signal for channel 2. (6) CHANNEL select switch 16-position switch for selecting the input channel to be monitored. (7) PHONES connector Stereo jack connector for PHONES or an external amplifier (e.g., active speakers).
- Page 6 AUDIS-01D/2-16 User Manual _______________________________________________________________________________________________________________ 3. Technical Data AUDIO MODE: PITCH / NOISE / THRESHOLD, selected by rotary switch with OFF position THRESHOLD: RANGE and FINE control, range: 0.5 V, 1 V or 2 V max. INPUT: BNC and SUB-D connectors: impedance 100 k, high-pass...
