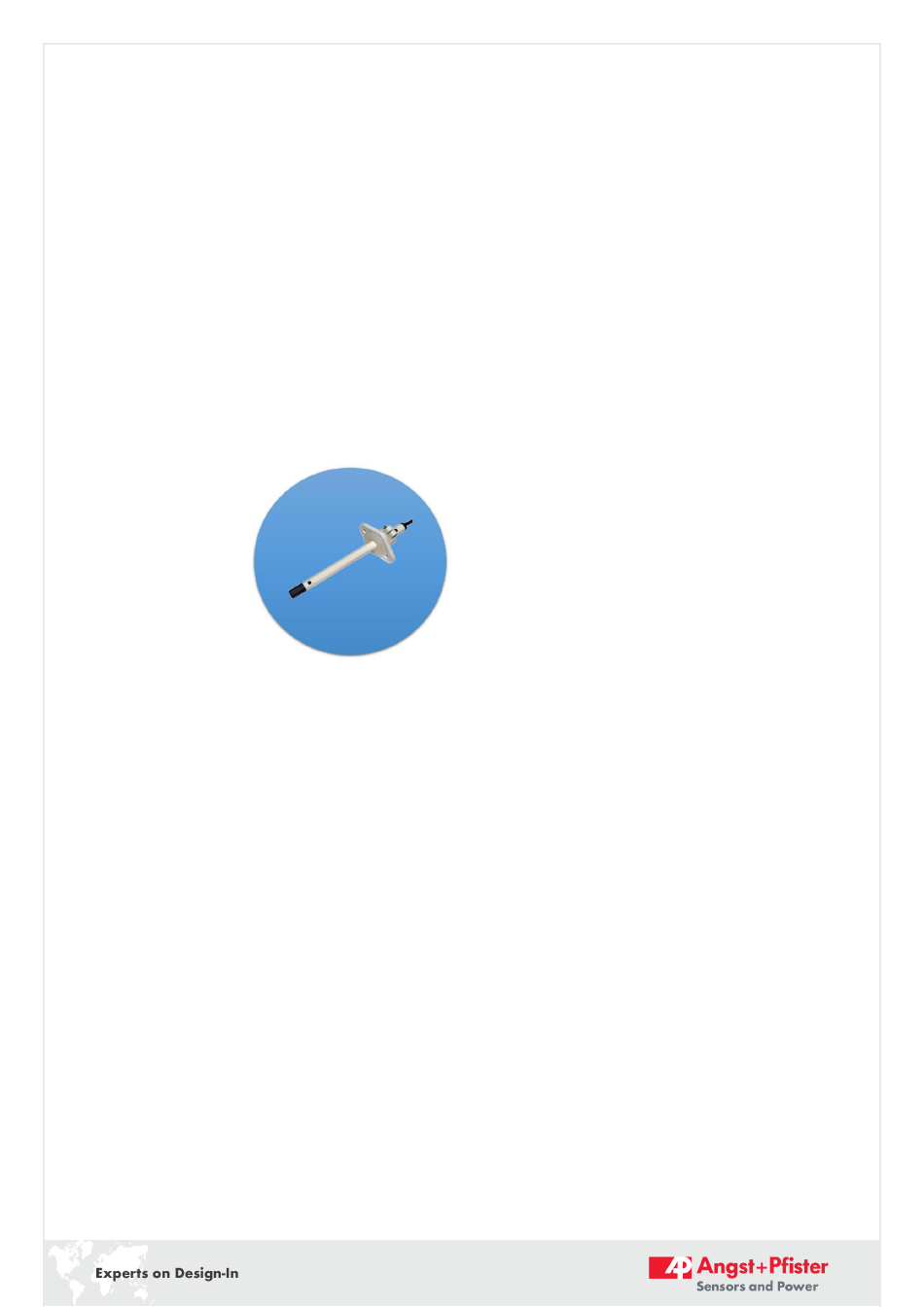

  • Page 1 PFLOW1000V_1620-21914-0006-E-0224 PFLOW1000V User Manual VB.0.1 Insertion MEMS flow, temperature and humidity sensors...
  • Page 2 PFLOW1000V_1620-21914-0006-E-0224 MEMS Flow, Temperature, and Humidity Sensors with integrated MEMS sensing technology PFLOW1000 Series User Manual Document No. 07-2021-FS9 EN Issue date: 2021.07 Revision: VB.0.1...
  • Page 3 PFLOW1000V_1620-21914-0006-E-0224 Attention ! • Please carefully read this manual prior to operating this product. • Do not open or modify any hardware which may lead to irrecoverable damage. • Do not use this product if you suspect any malfunctions or defection. •...

  • Page 4: Table Of Contents

    PFLOW1000V_1620-21914-0006-E-0224 Table of Contents Overview ..............................6 Receipt / unpack of the products ....................... 7 Knowing the products ..........................8 Product description ..........................8 Power and data pinout description ....................8 Mechanical dimensions ........................9 4. Installation ............................... 9 5. Digital communication descriptions ......................12 5.1 I C interface .............................
  • Page 5 PFLOW1000V_1620-21914-0006-E-0224 10. Service contact and information ........................ 23 Appendix I: Sensor evaluation kit ........................24 Appendix II: Document history ........................25...

  • Page 6: Overview

    All contact information can be found at the end of this manual. This manual provides essential information for the PFLOW1000V series of integrated MEMS sensor s of mass flow (flow speed), temperature, and humidity. It can be readily applied for environmenta l monitoring as well as an insertion flow meter.

  • Page 7: Receipt / Unpack Of The Products

    Note: Evaluation kit or any other accessories must be ordered separately. PFLOW1000V or PFLOW1100V Please check immediately for the integrity of the product and the accessories; if any abnormality is identified, please notify the distributor/sales representative or manufacturer as soon as you can. If any defects are confirmed, an exchange shall be arranged immediately via the original sales channel.

  • Page 8: Knowing The Products

    3.2 Power and data pinout description Table 3.2: PFLOW1000V/1100 wire code assignment. WIRE COLOR DEFINITION VCC, power supply, 8~24Vdc Black GND, ground...

  • Page 9: Mechanical Dimensions

    PFLOW1000V_1620-21914-0006-E-0224 3.3 Mechanical dimensions Figure 3.3.1. PFLOW1000V/1100 mechanical dimensions. 4. Installation Do not open or alter any part of the product, which would lead to malfunction and irrecoverable damage. Depending on the applications, the products can be used for open space environmental data collection or as an insertion meter for inline gas flow measurement.
  • Page 10 PFLOW1000V_1620-21914-0006-E-0224 Figure 4-1. Preparation for the insertion fixture. Make sure there is no debris or excessive particles left in the pipe during the preparation of the product fixtures on the pipe. Refer to the graphs below, per OIML R137 recommendations, the upstream of the meter should have a 20xDN straight pipe length, and downstream should have a 5xDN straight pipe length.
  • Page 11 PFLOW1000V_1620-21914-0006-E-0224 Please note: a. The product is not designed for hazardous zone applications, and not for corrosive gases; b. The installation should also be at locations where it is away from valves, sharp turns, and other cases as described in OIML R137 as those would generate flow instability and causing unstable outputs.

  • Page 12: Digital Communication Descriptions

    PFLOW1000V_1620-21914-0006-E-0224 5. Digital communication descriptions 5.1 I C interface 5.1.1 I C interface connection diagram 5.1.2 I C interface command description Command Length Byte Command Name Read/Write Notes (int 16) (Hex) Bit 0 is R/W flag bit; Bit 1~ Bit 7 are C address Write available.

  • Page 13: I 2 C Interface Read/Write Sequences

    PFLOW1000V_1620-21914-0006-E-0224 5.1.3 I C interface read/write sequences...

  • Page 14: Rs485 Modbus Communication Protocol

    PFLOW1000V_1620-21914-0006-E-0224 5.2. RS485 Modbus communication protocol The RS485 hardware layer is TIA/EIA-485-A, as illustrated below. In this configuration, the product ( PFLOW1000V/1100) is a slave. Figure 5.3: RS485 hardware 5.2.1. Communication parameters The PC UART communication parameters are listed in table 5.2.1.

  • Page 15: Function Codes

    Write multiple registers 5.2.4. Registers The product (PFLOW1000V/1100) has multiple registers available for the assignment of the various functions . With these functions, the user can obtain the data from the products, such as product address and flow rate s from the registers, or set the product functions by writing the corresponding parameters.
  • Page 16 PFLOW1000V_1620-21914-0006-E-0224 Table 5.2.4: Registers Functions Description Register Modbus reference Address Product address (R/W) 0x0001 40002 (0x0001) Flow speed Current flow speed (R) 0x0002 ~ 0x0003 40003 (0x0003) Baud rate Communication baud rate (R/W) 0x0015 40022 (0x0015) Temperature Temperature (R) 0x0025 40038 (0x0025) Humidity Humidity (R)

  • Page 17: Product Selection And Order Information

    PFLOW1000V_1620-21914-0006-E-0224 6. Product selection and order information 6.1. Product selection The product part number is composed of the product model number and suffixes, indicating each of the selectable parameters. Refer to the following for details. Gas: A – air; N – N2; O – O2; R – Ar; for other gases, please contact the manufacturer Output: B –...

  • Page 18: Product Performance

    PFLOW1000V_1620-21914-0006-E-0224 7. Product performance 7.1. Technical specifications All specifications listed in the following table, unless otherwise noted, apply for calibration conditions at 20°C and 101.325 kPa absolute pressure with air. Value Unit Flow speed range 0…3, 5, 10, 15, 20, 30 m/sec Accuracy (total error band) ±2.5...

  • Page 19: Technical Notes For The Product Performance

    PFLOW1000V_1620-21914-0006-E-0224 8. Technical notes for the product performance 8.1. Measurement principles The products utilize the Company’s proprietary micro-machined (MEMS) calorimetric sensing and data process technology. A thermal signal generator with a pair of sensing elements at the up and downstream of the microheater is precisely manufactured and separated at predefined micrometer distances on a chip surface with excellent thermal isolation.

  • Page 20: Metrology Verification

    PFLOW1000V_1620-21914-0006-E-0224 result in a very unreliable data output. Please filter or other tools to prevent this situation to occur when using this product. 8.2.3. Metrology verification Testing the products with local metrology tools will be performed in almost all cases. It should be noted that for this particular sensor, special care should be applied while performing such a task.

  • Page 21: Warranty And Liability

    PFLOW1000V_1620-21914-0006-E-0224 9. Warranty and Liability (Effective January 2018) APSP warrants the products sold hereunder, properly used, and properly installed under normal circ umstances and service. As described in this user manual, it shall be free from faulty materials or wor kmanship for 180 days for OEM products and 365 days for non-OEM products from the date of ship ment.
  • Page 22 PFLOW1000V_1620-21914-0006-E-0224 (2) Products that have been subject to chemical attacks, including exposure to corrosive substances or contaminants. In the case of battery usage, long term discharge or leakage induced damages; (3) Products that have been opened or dismantled for whatever reasons; (4) Products that have been subject to working conditions beyond the technical specification as described by this manual or related datasheet published by the manufacturer;...
  • Page 23 PFLOW1000V_1620-21914-0006-E-0224 Appendix I: Sensor evaluation kit APSP offers a sensor evaluation kit, including a digital data converter, USB data cable, and User Ap plication software, that allows the user to evaluate the product performance on a Microsoft Wi ndows-based computer. The user can read and visualize the flow rate of the product, obtain the tot alized values, and save the data for further analysis.
  • Page 24 PFLOW1000V_1620-21914-0006-E-0224 Appendix II: Document history ➢ Revision B.0.1 (July 2021) o The new format, additions. ➢ Revision A.14 (June 2020): o RS485 communication protocol update. ➢ Revision A.13 (May 2020): o RS485 communication protocol update. ➢ Revision A.12 (January 2020): o RS485 communication protocol update.
  • Page 25 We are here for you. Addresses and Contacts. Headquarter Switzerland: Office Germany: Angst+Pfister Sensors and Power AG Angst+Pfister Sensors and Power Deutschland GmbH Thurgauerstrasse 66 Edisonstraße 16 CH-8050 Zurich D-85716 Unterschleißheim Phone +41 44 877 35 00 Phone +49 89 374 288 87 00 sensorsandpower@angst-pfister.com...
