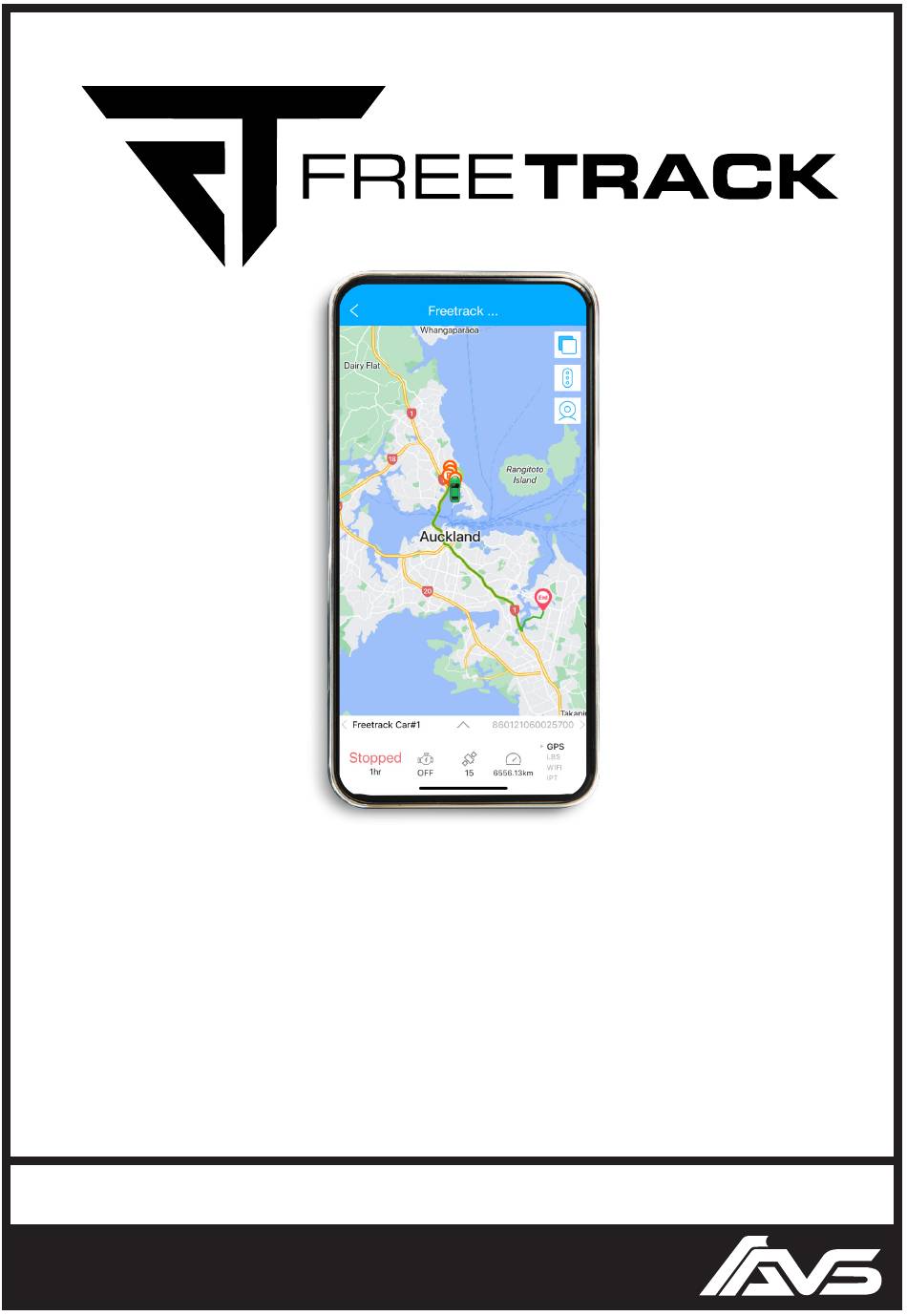

- Page 1 AVS FT-802 VEHICLE TRACKER USER GUIDE Version 2023-12 09 273 3600 freetrackgps.co.nz CAR SECURITY Proudly bought to you by vehicle security specialist AVS...
-
Page 3: Table Of Contents
WELCOME TO FREETRACK This is the user and installation guide for the Freetrack AVS FT-802 GPS tracker. Freetrack is a GPS tracking solution from vehicle security specialist AVS. All from the easy to use Tracksolid Pro App. CONTENTS SIM Card Introduction ............................ -
Page 4: Sim Card Introduction
SIM CARD INTRODUCTION The tracker requires a SIM card with credit to be able to communicate with the tracking server. This must be a micro size SIM card with SMS and phone calls enabled, do not use a data only SIM. The tracker is able to operate with most NZ network providers including Spark, OneNZ and 2 Degrees. -
Page 5: Download The Freetrack App
DOWNLOAD THE TRACKSOLID PRO APP Scan the QR barcode to download the iOS app Or go to the Apple App Store and search for Tracksolid Pro Or type in this url - https://freetrackgps.co.nz/tracksolidpro-apple Scan the QR barcode to download the Android app Or go to the Google Play Store and search for Tracksolid Pro Or type in this url - https://freetrackgps.co.nz/tracksolidpro-andriod Page 5... -
Page 6: Setting Up The App And Adding Your Tracker
SETTING UP THE APP AND ADDING YOUR TRACKER Download the app to your phone Tap through each screen until you 1. Select NEW ZEALAND as the. and tap to open. The app will ask get to the login screen and tap region, tap DONE on top right SIGN UP. -
Page 7: Use The List Menu To See The Status Info On Your Tracker
1. Add DEVICE NAME e.g. the name of To add a tracker to your app, scan the You will be directed to tracker set-up your tracker. barcode on the tracker or the tracker page, ll in the following details to 2. -
Page 8: Status Info
TRACKING rego number of the vehicle. See Tap to track the vehicle live Device Detail below. CAMERA Feature not available for Freetrack. DEVICE DETAIL DETAIL icon on the Status Info screen (see above). Custom DEVICE NAME SIM Number that’s in the TRACKER... -
Page 9: Playback Trip History On The Map
PLAYBACK TRIP HISTORY ON THE MAP Tap LIST from the Home screen Tap the up arrow to expand the Tap on a vehicle. to open the device list. Status Info menu. Select the DATE AND TIME RANGE Tap PLAYBACK to open the you want to view Playback for and Playback screen. - Page 10 PLAYBACK continued ... The PLAYBACK screen is now displayed. TRIPS SCREEN GO BACK Tap to open the Trips screen to list trips by day. Tap the Go Back arrow See the next example for details. to return to the Status MAP LAYERS Info menu.
-
Page 11: Alerts
ALERTS / PUSH NOTIFICATIONS Alerts are events such as alarm activations, power disconnected warning or vehicle entering a geo fence. Tapping on an alert will show the location of the event on the map. Alerts can be found by tapping the ALERTS icon on the Home screen or Status Info screen. - Page 12 CONFIGURING SMS AND PHONE CALL ALERTS Prepay SIM card additional charges may be incurred depending on which provider and plan you have). your phone’s DO NOT DISTURB feature to allow calls from Favourites. LIST icon on the HOME screen. Tap the up arrow expand the Status Info menu.
- Page 13 Setting up alarm activation alerts If your tracker is connected to an alarm system the Alarm activation/SOS Alarm Setting. Note: additional charges may be incurred depending on which SMS provider and plan you have. IMPORTANT: Make sure the mobile number you want to receive phone call alerts to is programmed into SOS ALARM SETTING- NUMBER 1...
-
Page 14: Remote Fuel Kill/Immobilisation
REMOTE FUEL KILL/IMMOBILISATION If remote immobilisation has been installed on your vehicle the tracking device can remotely shut down the engine if the vehicle is stolen. Once the fuel cut command (sent via Remote Control page or SMS) is received by the tracker it will wait until the vehicle speed drops below 10km/h before activating the fuel kill relay. - Page 15 Remote fuel kill/immobilisation via SMS SET UP VIA Centre Number ON COMMAND PAGE BEFORE USE. CENTRE NUMBER device will ignore the SMS. It is recommended you enter your phone number here and only use if the POWER CUT OFF command below does not operate e.g.
-
Page 16: Geo Fence
GEO FENCE GEO FENCE Note: Geofence noti cations are sent via app/push noti cations only. To Set Up a New Geo Fence LIST icon on the HOME screen. Tap the up arrow to expand the Status Info menu. The Geo Fence will default to the Tap GEO FENCE to open the to open the screen to set area around the vehicle or you can... - Page 17 To Edit a Geo Fence Select the Geo Fence you want to GEO FENCE. To edit a Geo Fence tap PROFILE edit. from the Home screen. To remove a Geo Fence tap REMOVE To edit the NAME of the Geo Fence to add ADDITIONAL DEVICES to the Geo Fence.
-
Page 18: Installing The Sim Card
The following pages are for your installer. AVS recommends professional installation to protect your product warranty. Please refer to the AVS website for recommended resellers or installation centers. www.avscarsecurity.co.nz/apps/installers INSTALLING THE SIM CARD IMPORTANT! Before installing the SIM card ensure it has been activated in a mobile phone, has credit added and that it has been added to an online account with the user’s cellular service provider (ONE NZ etc) to allow the user to check and add credit online. -
Page 19: Wiring Diagram
WIRING DIAGRAM Page 19... -
Page 20: Pin Out Diagram
PIN OUT DIAGRAM RELAY (-) ALARM NOT USED NOT USED NOT USED NOT USED 10. NOT USED 11. NOT USED 12. NOT USED 13. NOT USED 14. NOT USED 15. NOT USED 16. NOT USED 17. NOT USED PIN COLOUR DESCRIPTION DEFINITION 1 RED 9V-36V CAR BATTERY POSITIVE 2 BLACK... -
Page 21: Wiring Instructions
WIRING INSTRUCTIONS DEVICE POWER (RED PIN 1): Connect to vehicle un-switched power 9-36V DC. DEVICE GROUND (BLACK PIN 2): Connect to ground IGNITION/ACC (ORANGE PIN 3): Connect to switched vehicle ignition or ACC. RELAY OUT (YELLOW PIN 4): Connect to 86 on relay. - IMPORTANT! FUEL KILL RELAY Fuel kill relay supplied is for 12V vehicles only. -
Page 22: Power Up The Tracker
POWER UP THE TRACKER Once a SIM is installed and all wiring is completed the device can be powered up. • The BLUE , RED & GREEN LED’s will illuminate. Then the POWER LED (RED) will remain on, indicating the internal •... -
Page 23: Troubleshooting
INSTALLER NAME SUPPORT Please see your AVS installer for support with your Freetrack AVS FT-802 tracker. Please note a service fee may apply for technical help related to problems with the SIM card you have provided. Please note AVS strongly recommends professional installation to help protect your product warranty. - Page 24 • You will receive a reply e-mail alerting you that the change has been completed • Continue to follw the steps at the bottom of pg6 of the AVSFT-802 User Guide to add your old Freetrack to your new app. Proudly bought to you by vehicle security specialist AVS...
