CARLO GAVAZZI DAA01 Installation Instructions

Electronic timers
DAA01, PAA01
DAA71
DMB01, PMB01
DMB51, DMB71

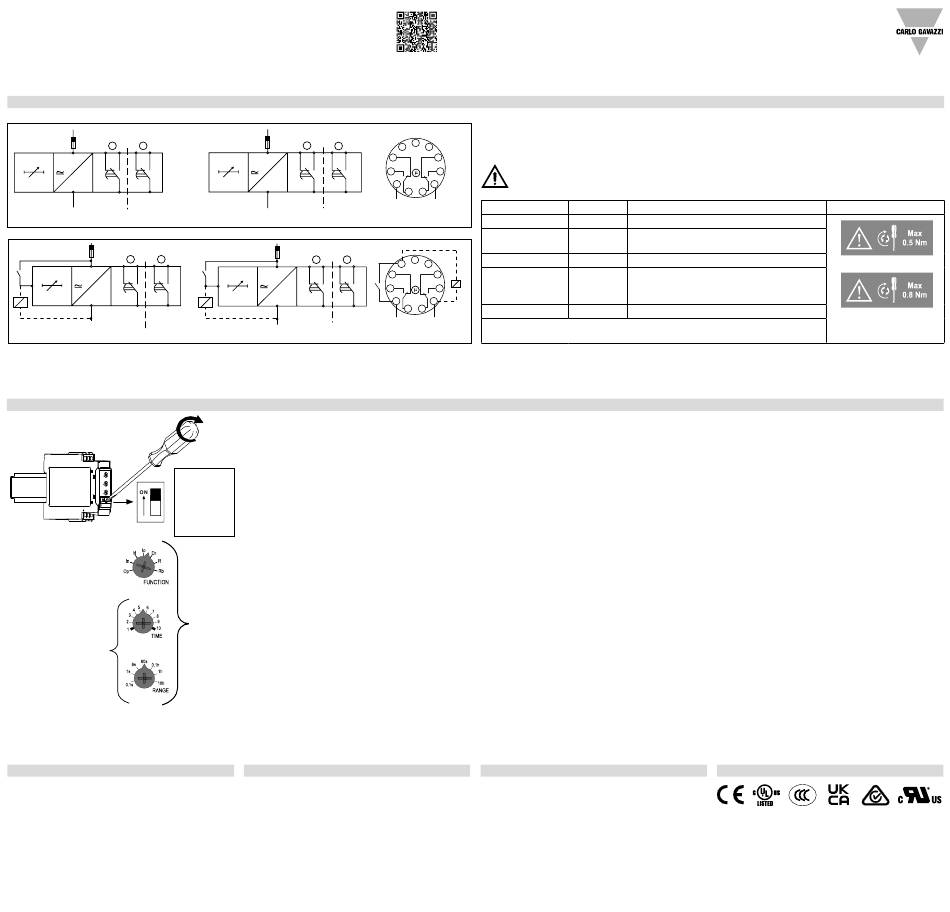

Connections
L(+)
µ µ
A1 16 18 26 28
A2 15 25
DAA01C... DAA01D...
DAA01D DAA71D
N(-)
DAA
L(+)
µ µ
26 28
A1 16 18
S
Y1
A2 25
15
DMB01C... DMB01D...
DMB01D... DMB71D
N(-) DMB51C...
DMB
Settings
ON:
instantaneous
OFF:
delayed
according to
the first relay
DAA01
PAA01
DAA51
DAA71
Adjustment
Check if the connections are correct. Turn the
power supply ON, the green LED switches ON.
The working mode, according to the selected
function, is schematized on the side label.
The yellow LED is ON when the relay is ener-
gized, it blinks slowly during timing and blinks
fast in case of wrong set-up.
Installation instructions
Code 8022310/161023 INSTRUCTION SHEET
XAAX1_XMBX1_XBAX2_RENEWAL_V2
www.gavazziautomation.com
L(+)
µ µ
2 4 3 8 9
10
1 11 1
PAA01C... PAA01D...
PAA01D
N(-)
PAA
L(+)
µ µ
2 4 3 8 9
S
5
10
1 11
PMB01C... PMB01D...
PMB01D...
N(-)
PMB
Select the desired time range by the lower dial on front as shown on the left.
Adjust the time period on relative scale: 1 to 10 with respect to the chosen range, setting the centre knob as shown on the left.
XAA01D and XMB01DM24B002: select the desired function of the second relay output by the DIP-switch on the front (OFF=delayed according to the
first relay, ON= instantaneous).
DMBX1 and PMB01: select the desired function by the upper knob as shown on the left:
Op: Delay on Operate
In: Interval
Io: Interval on trigger open
DMB01
PMB01
Id: Double Interval
DMB51
Dr: Delay on release
DMB71
R: Symmetrical recycler (ON first)
Rb: Symmetrical recycler (OFF first)
Mounting
Hang the device to the DIN-Rail being sure that
the spring closes. Use a screwdriver to remove
the product.
Scan to read me in your language!
Scannen Sie, um mich in Ihrer Sprache zu
lesen!
Scanne pour me lire dans ta langue !
Connect the power supply to the proper terminals. Connect the trigger input S between terminals
A1 and Y1 (DBA52 and DMBX1 versions only). Connect the relay output according to the ratings as
6
5 7
shown in the side diagrams.
4 8
3 9
Keep power OFF while connecting!
2 10
1 11
L(+) N (-)
DAA, DMB
A1, A2
A1, Y1
15, 16, 18
6
5
7
4 8
25, 26, 28
3 9
2 10
1 11
Y1, A2
L(+) N (-)
Each terminal can accept up to 2.5 mm
DMB71 and 2 x 2.5 mm
Packaging
The packing material should be kept for redeliv-
ery in case of replacement or repair.
¡Escanea para leerme en tu idioma!
Scansiona per leggermi nella tua lingua!
Scan for at læse mig på dit sprog!
扫码后选择相关语言进行阅读！
PAA, PMB Terminals
2, 10 Power supply
Trigger input
2, 5
(DMB, PMB)
1, 3, 4 Relay output
2nd relay output
8, 9, 11 (DAA01D, DAA71, PAA01D, DMB01D,
PMB01D)
5, 10 Additional load (DMB, PMB)
2 wires for DAA71, DMB51 and
wires for DAA01 and DMB01.
2
CE-marking and approvals
Tightening torque
DAA01, DMB01
DAA51, DAA71,
DMB51, DMB71
