Summary of Contents for Preliminary RGBlink 12X

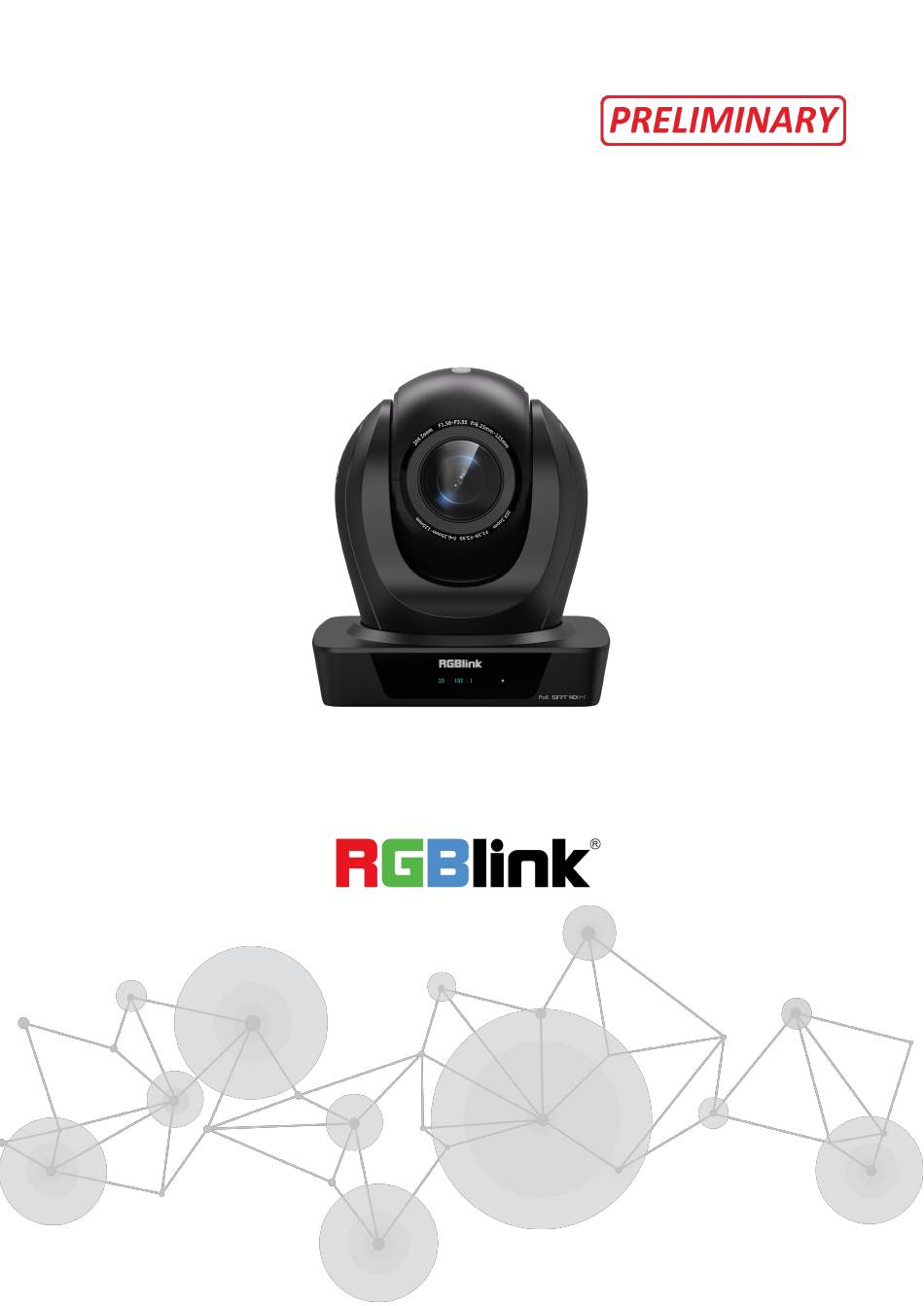

- Page 1 RGBlink 4K vue PTZ camera User Manual...
-
Page 2: Table Of Contents
Content Declarations ................................3 FCC/Warranty ..................................3 Operators Safety Summary ..............................4 Installation Safety Summary .............................. 4 Chapter 1 Your Product ............................6 1.1 In the Box ..................................6 1.2 Product Overview .................................6 1.2.1 Dimension ................................6 1.2.2 Main Features ............................... 6 1.2.3 Technical Specification ............................ - Page 3 4.1 Product Code ................................24 Chapter 5 Support ............................... 25 5.1 Contact Us .................................. 25 5.2 Troubleshooting ................................. 26 Chapter 6 Appendix ............................. 27 6.1 Terms & Definitions ..............................27 6.2 Revision History ................................33 RGBlink 4K vue PTZ camera User Manual...
-
Page 4: Declarations
Thank you for choosing our product! This User Manual is designed to show you how to use this PTZ quickly and make use of all the features. Please read all directions and instructions carefully before using this product. Declarations FCC/Warranty Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules. -
Page 5: Operators Safety Summary
Operators Safety Summary The general safety information in this summary is for operating personnel. Do Not Remove Covers or Panels There are no user-serviceable parts within the unit. Removal of the top cover will expose dangerous voltages. To avoid personal injury, do not remove the top cover. Do not operate the unit without the cover installed. Power Source This product is intended to operate from a power source that will not apply more than 230 volts rms between the supply conductors or between both supply conductor and ground. - Page 6 find any shortages, contact your sales representative. Once you have removed all the components from their packaging and checked that all the listed components are present, visually inspect the system to ensure there was no damage during shipping. If there is damage, notify the shipping carrier immediately for all claims adjustments.
-
Page 7: Chapter 1 Your Product
Chapter 1 Your Product 1.1 In the Box Name Qty. Camera International Power Adapter (cable included） RS232 Cable Remote Control User Manual 1.2 Product Overview 1.2.1 Dimension 1.2.2 Main Features AI Tracking: With the help of the AI computing power of the chip, the camera is equipped with advanced AI ... -
Page 8: Technical Specification
NDI|HX2 (Optional): NDI|HX2 has the characteristics of low delay and plug and play, which is convenient for project implementation and deployment. It has good ecology and supports the simultaneous transmission of audio, video and control commands. It is a new generation of network video transmission mode. 4K UHD: 12X adapts 1/2.5-inch high-quality UHD CMOS sensor with a maximum of 8.51 million effective ... - Page 9 Dynamic Range OFF/ Dynamic Level Adjustment Video Adjustment Brightness/Hue/Saturation/Contrast/Sharpness/B/W Mode/Gamma Curve Signal Noise Ratio ≥55dB Image Flip Auto / Manual Image Freeze Support PoE+ Support Number of Preset Preset Accuracy 0.1° USB Features Operate System Windows 7/8/10, Mac OS X, Linux, Android 3.0 (Optional): YUY2/H.264/H.265/MJPEG Color System/ Compression...
-
Page 10: Chapter 2 Install Your Product
Chapter 2 Install Your Product 2.1 Interface Item Name RESTORE Key HDMI Interface 12G-SDI Interface LINE IN Interface RS422/485 Interface USB Interface RS232 OUT Interface RS232 IN Interface LAN(PoE+) Interface DC 12V Interface Power Switch 2.2 Quick Start RGBlink 4K vue PTZ camera User Manual... -
Page 11: Installation
1) Please check connections are correct before starting. 2) Connect the power adapter to the power connector on the rear panel of the camera. The power indicator on the front panel of the camera is on. 3) After the camera is powered on, it starts to initialize, right up to the limit position, and then both horizontal and vertical go to the middle position, the motor stops running, and the initialization is completed. - Page 12 Note: The installation diagram is for reference only. The brackets and screws are not standard. For packing accessories, please refer to the actual product. RGBlink 4K vue PTZ camera User Manual...
-
Page 13: Chapter 3 Use Your Product
Chapter 3 Use Your Product 3.1 Remote Controller 1. Standby Key Press to enter standby mode 2. Number Key Press to set preset or call preset. 3. *Key Use with other keys 4. PRESET Key Set preset: [PRESET] + Number key (0-9) 5. -
Page 14: Gui Settings
14. PTZ Control Key PTZ moved according to the arrow indicates 15. MENU Key Press to enter or exit OSD Menu 16. BACKLIGHT Key Backlight ON/OFF: Press repeatedly to enable or disable the backlight compensation. NOTE: Effective only in auto exposure mode. ... -
Page 15: Color
EXPOSURE Backlight Gain Limit Anti-Flicker 50Hz Meter Average Select Item Change Value [Menu] Back Mode: Auto, Manual, SAE, AAE, Bright. ExpCompMode: On, Off (Effective only in Auto mode). ExpComp: -7 ~ 7 (Effective only in ExpCompMode item to On). Backlight: On, Off (Effective only in Auto mode). Bright: 0 ~ 17 (Effective only in Bright mode). -
Page 16: P/T/Z
IMAGE Select Item Change Value [Menu] Back Luminance: 0 ~ 14. Contrast: 0 ~ 14. Sharpness: 0 ~ 15, auto. Flip-H: On, Off. Flip-V: On, Off. B&W-Mode: On, Off. Style: Default, Norm, Bright, PC. 3.2.5 P/T/Z Move the main menu cursor to [P/T/Z], and press [HOME] key enter the P/T/Z page, as shown in the following figure P/T/Z SpeedByZoom... -
Page 17: Communication Setup
SETUP Auto Scan Shoot Video Mode Other Select Item Change Value [Menu] Back Language: EN, Chinese, Russian. DVI Mode: HDMI, DVI. Video Format: 4KP25, 4KP29.97, 4KP30, 4KP50, 4KP59.94, 4KP60, 1080P30, 1080P25, 1080P50, 1080P60, 1080P59.94, 1080P29.97, 1080I50, 1080I60, 1080I59.94, 720P60, 720P59.94, 720P50. Auto Scan Shoot: On, Off. -
Page 18: Web Settings
3.3 WEB Settings 3.3.1 Access Camera Access http://192.168.100.88 to pop up the login window, then input username (default: admin) and password (default: admin). After login, it will show as below: 3.3.2 Control Camera All pages include two menu bars: Real time monitoring: displaying video image Parameter setup: with function buttons. A. - Page 19 Zoom I n Zoom O ut Focus I n Focus O ut Pan Speed Ti l t Speed Zoom Speed Focus Speed Cal l Preset Back 1) Pan and Tilt Control Up, Down, Left and Right arrows and the home button allow you to manually drive the camera to the desired position.
-
Page 20: Video Settings
3.3.3 Video Settings Vi deo Setti ngs H D M I /SD I O utput H D M I Vi deo Form at 1920x1080/30p Encode Level m ai np rof i l e Fi rst stream Encode Protocol H 264 Resol uti on 1920x1080 Bi t Rate... -
Page 21: Image Settings
7) Frame Rate User can specify the size of the frame rate, generally, the frame rate greater, the image more smooth; Frame rate is smaller, the more sense of beating. 8) I Key Frame Interval Set interval between 2 I frame, the bigger interval is the response will be lower from view window. Bit Rate Control. -
Page 22: Audio Settings
3.3.5 Audio Settings Audi o Setti ngs Audi o Sw i tch Audi o Type Sam pl e Rate Bi t Rate I nput Type LI N E I N I nput Vol AD TS O pti ons O f f Subm i t Cancel 1) Audio Switch... -
Page 23: Network Settings
2) Username and Password The user can modify the password (letters and Numbers only). 3.3.7 Network Settings Lan Setti ngs I P Conf i gurati on Type Fi xed I P Address I P Address 192. 168. 100. 88 Subnet M ask 255. -
Page 24: System Settings
using network port to transmit data, so data transmission to be carried out between the port and port. Port setting is to set up web server program using which port to transmit. When port mapping, need to be consistent with the port number (default port: 80). B. -
Page 25: Chapter 4 Ordering Codes
Chapter 4 Ordering Codes 4.1 Product Code User can refer to the following chart for ordering. Product Code Model 981-0011-66-0 RGB12X-UPAI-OL 981-0011-67-0 RGB12X-UNAI-OL 981-0011-78-0 RGB20X-UPAI-OL 981-0011-79-0 RGB20X-UNAI-OL RGBlink 4K vue PTZ camera User Manual... -
Page 26: Chapter 5 Support
Chapter 5 Support 5.1 Contact Us RGBlink 4K vue PTZ camera User Manual... -
Page 27: Troubleshooting
5.2 Troubleshooting Image The monitor shows no image 1) Check that the camera power supply is connected, the voltage is normal, and the power indicator light is always on. 2) Turn off the power switch to check whether the camera is self-testing. 3) Check the cable of video platform and TV whether correct connection. -
Page 28: Chapter 6 Appendix
Chapter 6 Appendix 6.1 Terms & Definitions ●RCA: Connector used primarily in consumer AV equipment for both audio and video. The RCA connector was developed by the Radio Corporation of America. ●BNC: Stands for Bayonet Neill-Concelman. A cable connector used extensively in television (named for its inventors). A cylindrical bayonet connector that operates with a twist-locking motion. - Page 29 ●HDMI 1.3: released on June 22 2006, and increased the maximum TMDS clock to 340 MHz (10.2 Gbit/s). Support resolution 1920 × 1080 at 120 Hz or 2560 × 1440 at 60 Hz). It added support for 10 bpc, 12 bpc, and 16 bpc color depth (30, 36, and 48 bit/px), called deep color.
- Page 30 ●SFP: Small form-factor pluggable, is a compact, hot-pluggable network interface module used for both telecommunication and data communications applications. ●Optical Fiber Connector: Terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. 4 most common types of optical fiber connectors are SC, FC, LC,ST.
- Page 31 standard used in North America and some other parts of the world created by the National Television Standards Committee in the 1950s. NTSC utilizes an interlaced video signals. ●PAL: Phase Alternate Line. A television standard in which the phase of the colour carrier is alternated from line to line. It takes four full images (8 fields) for the colour-to-horizontalimages (8 fields) for the colour-to-horizontal phase relationship to return to the reference point.
- Page 32 sessions between end points. ●MPEG: Moving Picture Experts Group is a working group formed from ISO and IEC developing standards that allow audio/video digital compression and Transmission. ●H.264: Also known as AVC (Advanced Video Coding) or MPEG-4i is a common video compression standard. H.264 was standardized by the ITU-T Video Coding Experts Group (VCEG) together with the ISO/IEC JTC1 Moving Picture Experts Group (MPEG).
- Page 33 pigment in a colour, and not the intensity. ●Gamma: The light output of a CRT is not linear with respect to the voltage input. The difference between what you should have and what is actually output is known as gamma. ●Frame: In interlaced video, a frame is one complete image.A video frame is made up of two fields, or two sets of interlaced lines.
-
Page 34: Revision History
including native resolution and vertical interval refresh rate requirements, to a source device. The source device will then output the provided EDID data, ensuring proper video image quality. 6.2 Revision History The table below lists the changes to the User Manual. Version Date ECO#...
