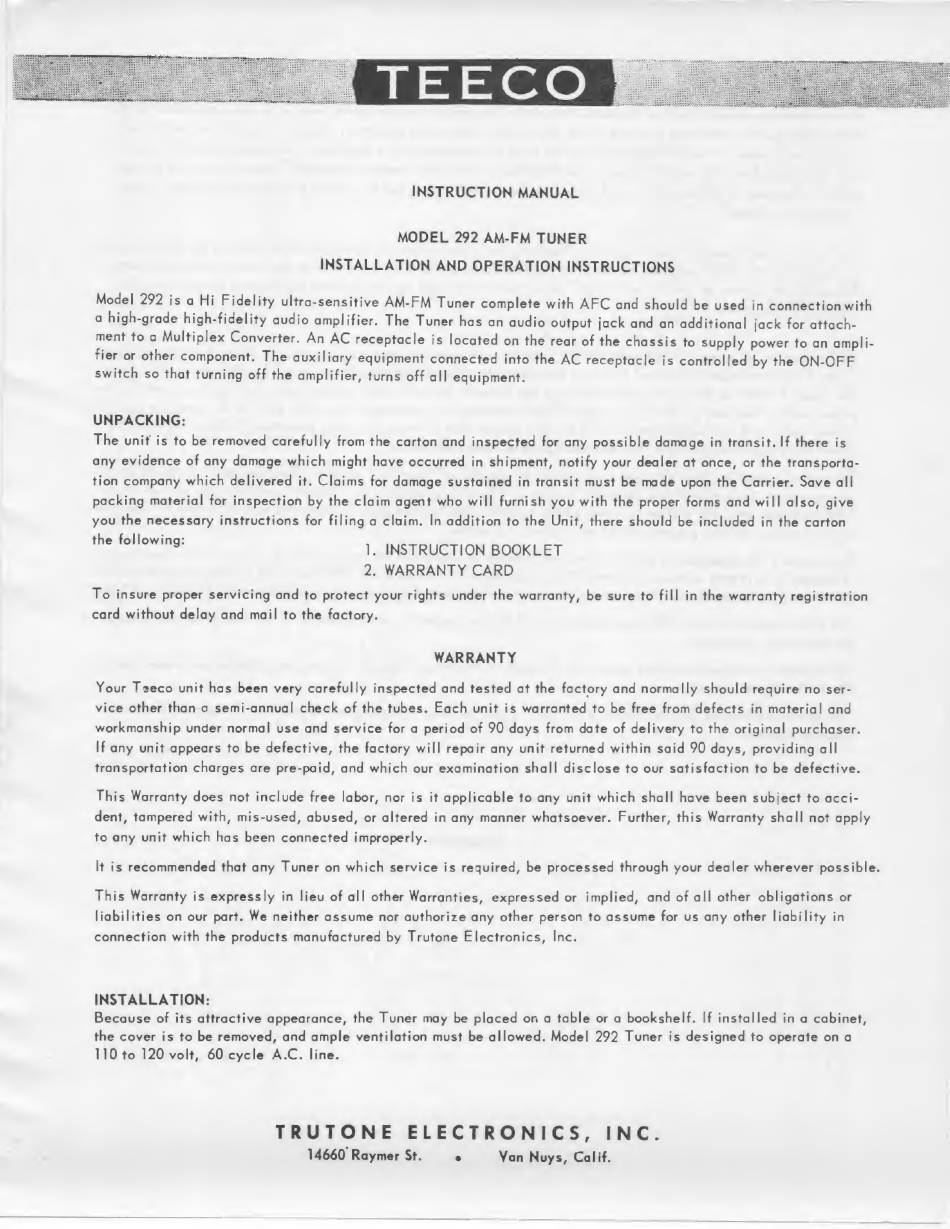

TEECO 292 Instruction Manual

INSTRUCTION MANUAL
MODEL 292 AM-FM TUNER
INSTALLATION AND OPERATION INSTRUCTIONS
Model 292 is a Hi Fidelity ultra-sensitive AM-FM Tuner complete with AFC and should be used in connection with
a high-grade high-fidelity audio amplifier. The Tuner has an audio output jack and an additional jack for attach¬
ment to a Multiplex Converter. An AC receptacle is located on the rear of the chassis to supply power to an ampli¬
fier or other component. The auxiliary equipment connected into the AC receptacle is controlled by the ON-OFF
switch so that turning off the amplifier, turns off all equipment.
UNPACKING:
The unit is to be removed carefully from the carton and inspected for any possible damage in transit. If there is
any evidence of any damage which might have occurred in shipment, notify your dealer at once, or the transporta¬
tion company which delivered it. Claims for damage sustained in transit must be made upon the Carrier. Save all
packing material for inspection by the claim agent who will furnish you with the proper forms and will also, give
you the necessary instructions for filing a claim. In addition to the Unit, there should be included in the carton
the following: j INSTRUCTION BOOKLET
2. WARRANTY CARD
To insure proper servicing and to protect your rights under the warranty, be sure to fill in the warranty registration
card without delay and mail to the factory.
WARRANTY
Your Teeco unit has been very carefully inspected and tested at the factory and normally should require no ser¬
vice other than a semi-annual check of the tubes. Each unit is warranted to be free from defects in material and
workmanship under normal use and service for a period of 90 days from date of delivery to the original purchaser.
If any unit appears to be defective, the factory will repair any unit returned within said 90 days, providing all
transportation charges are pre-paid, and which our examination shall disclose to our satisfaction to be defective.
This Warranty does not include free labor, nor is it applicable to any unit which shall have been subject to acci¬
dent, tampered with, mis-used, abused, or altered in any manner whatsoever. Further, this Warranty shall not apply
to any unit which has been connected improperly.
It is recommended that any Tuner on which service is required, be processed through your dealer wherever possible.
This Warranty is expressly in lieu of all other Warranties, expressed or implied, and of all other obligations or
liabilities on our part. We neither assume nor authorize any other person to assume for us any other liability in
connection with the products manufactured by Trutone Electronics, Inc.
INSTALLATION:
Because of its attractive appearance, the Tuner may be placed on a table or a bookshelf. If installed in a cabinet,
the cover is to be removed, and ample ventilation must be allowed. Model 292 Tuner is designed to operate on a
110 to 120 volt, 60 cycle A.C. line.
TRUTONE ELECTRONICS, INC.
14660 Raymer St. • Van Nuys, Calif.
