Luxart FASTDOCK EB137 Installation Instructions Manual

Luxart FASTDOCK EB137 Installation Instructions Manual

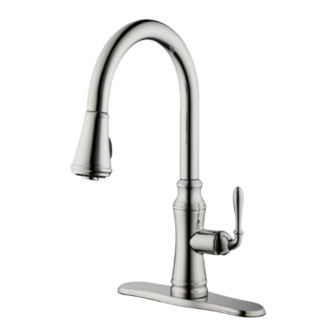

Pull-down kitchen faucet

Advertisement

Quick Links

Installation / Installation / Instalación
Pull-down Kitchen Faucet
Robinet de cuisine à bec arroseur
Grifo extraíble para cocina
Tools You Will Need / Outils dont vous aurez besoin / Herramientas necesarias
Adjustable Wrench
Clé à molette
Llave ajustable
Cinta selladora para rosca
INSTALLATION TIPS
The manufacturer suggests using a locally licensed plumber for installation.
Cover your drain to avoid losing parts.
CONSIGNES DE INSTALLATION
Le fabricant suggère de confier l'installation à un plombier qualifié pour exercer dans cette région.
Couvrir le drain pour ne pas perdre des pièces.
CONSEJOS DE INSTALLACIÓN
El fabricante sugiere usar los servicios de un plomero local autorizado para la instalación.
Tape la boca del desagüe para prevenir la pérdida de piezas pequeñas.
Pipe Tape
Groove Joint Pliers
Ruban pour tuyau
Phillips Screwdriver
Pince multiprise
Tournevis cruciforme
Pinzas ajustables
Destornillador Phillips
Model/Modèle/Modelo
EB137
Silicone Sealant
Enduit d'étanchéité au silicone
Sellador de silicona
Revised
4/21/2022
