Gopher CPS Series User Manual

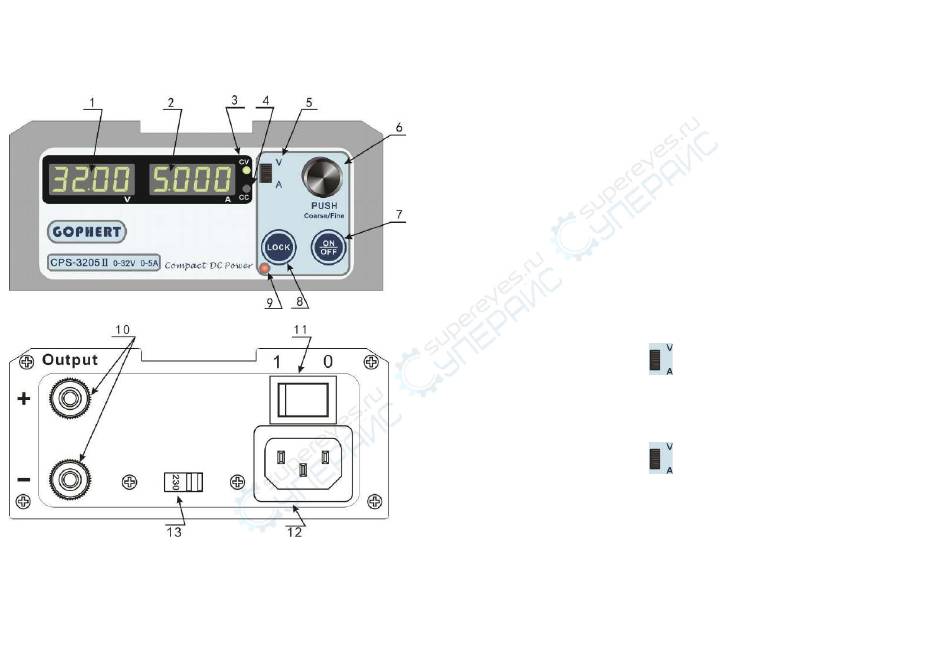

I Panel Layout
1.
Volt Meter: Display the setting voltage or the actual output voltage
2.
Current Meter: Display the setting current or theactual outputcurrent,or
output state:OFF,OVP,OCP,OTP
3.
Constant Voltage Indicator
4.
Constant Current Indicator
5.
Voltage/Current Select Switch:
V: adjust voltage
A: adjust current
6.
Adjust Knob:Push to shift the digit
7.
Output ON or OFF
8.
LOCK or WATT
9.
LOCK or WATT Indicator
10. Output Terminal:Red +, Black –
11. AC Power Switch
12. AC Power Socket
13. Operating Voltage Select Switch:
115: Rated Input 100-120Vac
230: Rated Input 200-240Vac
II Function and Operation
1 Set Voltage
Put the switch
to "V", click the adjusting knob to select adjust digit,
and then adjust the knob to set the highlight digit.
2 Set Current
Put the switch
to "A", click the adjusting knob to select adjust digit,
and then adjust the knob to set the highlight digit.
