Summary of Contents for SMARTFOX 0767523866321

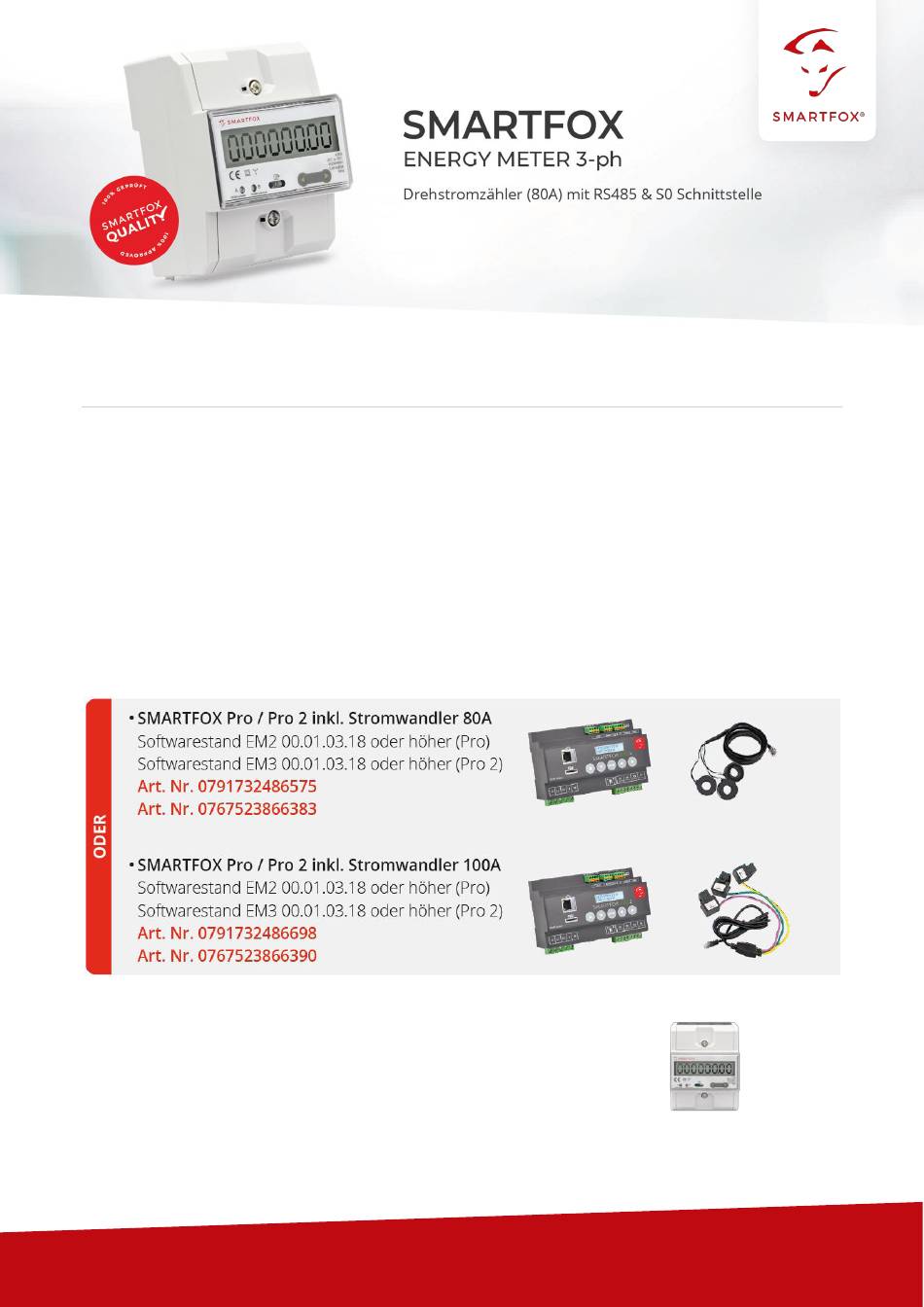

Page 1
The following instructions explain how to connect and parameterise the SMARTFOX Energy Meter with the SMARTFOX Pro system. To create a comprehensive building monitoring system, the meter can be connected to the SMARTFOX Pro via RS485 (Modbus RTU) or S0 interface. In this way, generation systems (PV inverters, hydroelectric power plants...) as well as consumers (heat pumps, charging stations, flats...) can be...
Table of contents Connection..............................3 AC connection .............................3 Communication............................3 Settings on the SMARTFOX Pro (RS485 connection)...............4 Function subcounter ..........................9 Function WR1 - WR5 ..........................11 Function CC1 - CC5 ..........................14 Own" function ............................16 Settings on SMARTFOX Pro (connection S0)...................17 Inverter function............................18 Function consumption meter ........................20 Notes...............................21...
1.2.1 Connection via RS485 (Modbus RTU) Up to 5 SMARTFOX Energy Meters can be added to the bus. In addition, up to 5 SMARTFOX Pro Chargers can be operated on the same bus (10 devices in total). For this purpose, use a twisted pair of wires of a shielded cable (e.g.
1.2.2 Connection via S0 signal If the RS485 interface of the energy manager is already occupied, a SMARTFOX Energy Meter can be read in via S0 signal. For this purpose, use a twisted pair of wires of a shielded cable (e.g. CAT6).
Page 5
2. Select the submenu "External counters". 3. Select a free field by clicking on it. 4. The pop-up window opens. 5. Select "SMARTFOX Energy Meter RS485" in the drop-down menu. www.smartfox.at...
Page 6
Once the first participant has been configured, switch it off and switch on the next participant. Start the configurator for the additional meter or charging station and repeat the steps until all participants have been integrated. After configuration, all participants can be switched on. www.smartfox.at...
Page 7
9. Click on "Configure". 10. The counter is configured. www.smartfox.at...
Page 8
11. After the configuration is complete, the ID can be checked on the meter. Hint! If the configuration could not be completed, the SMARTFOX issues an error message. Check the RS485 cabling, power supply of the participant and repeat the steps.
2. Under Designation, the name is given with which the meter is displayed in the portal. 3. The counter is displayed with the selected colour in the portal. 4. The "Supply / Delivery" setting can be used to change the counting direction if the input and output have been reversed when connecting the meter. www.smartfox.at...
Page 10
The power value of the meter is added to the main measurement. Subtract: The power value of the meter is subtracted from the main measurement. 6. The measured values can now be read in LiveView, power charts, energy charts, ..www.smartfox.at...
The function "WR1 - WR5" can be selected to connect the meter as a generation plant (PV) in the monitoring. This means that inverters without a communication interface can also be integrated. Note! No licences are required for integrating the inverters via SMARTFOX Energy Meter. 1. Select "WR1 - WR5" under Destination for values.
Page 12
7. Under Designation, a name can be assigned with which the generating plant is to be displayed in the portal. 8. A colour can be selected with which the generating plant is displayed in the portal. 9. Confirm with "OK". www.smartfox.at...
Page 13
10. The measured values can now be read in LiveView, power charts, energy charts, etc. www.smartfox.at...
1. Select "CC1 - CC5" under Destination for values. 2. The "Supply / Delivery" setting can be used to change the counting direction if the input and output have been reversed when connecting the meter. 3. Click on "Save". www.smartfox.at...
Page 15
4. The measured values are assigned to the correspondingly parameterised charging station. 5. The measured values can now be read in LiveView, power, energy charts..www.smartfox.at...
2.4 Own" function With the "Own" function, the meter's measured values can be individually assigned to a target register of the SMARTFOX Pro. The complete SMARTFOX Modbus register is available at www.smartfox.at/allgemein. 1. Select "Own" under Destination for values. 2. Enter the designation of the meter.
Settings on the SMARTFOX Pro (connection S0) 1. Call up the web portal "my.smartfox.at" and log in. Select the menu "Settings" "My devices" and open the device parameterisation of the SMARFOX Pro (cogwheel). 2. Select the "Inputs" submenu. 3. Under S0 Input, you can choose between the functions "Inverter" or "Consumption meter".
(PV). This means that inverters without a communication interface can also be integrated. 1. S0 Select input function "Inverter". 2. Enter the pulse rate of the meter (SMARTFOX Energy Meter = 1000 pulses/kWh). 3. Select the "Inverter" submenu. 4. Select the "S0 input" model.
Page 19
8. The measured values can now be read in LiveView, power charts, energy charts, ..www.smartfox.at...
(e.g. flat meter, heat pump meter, general consumers...). 1. S0 Select input function "Consumption meter". 2. Enter the pulse rate of the meter (SMARTFOX Energy Meter = 1000 pulses/kWh). 3. Under Designation, the name is given with which the meter is displayed in the portal.
