Summary of Contents for Electus Distribution GT4850

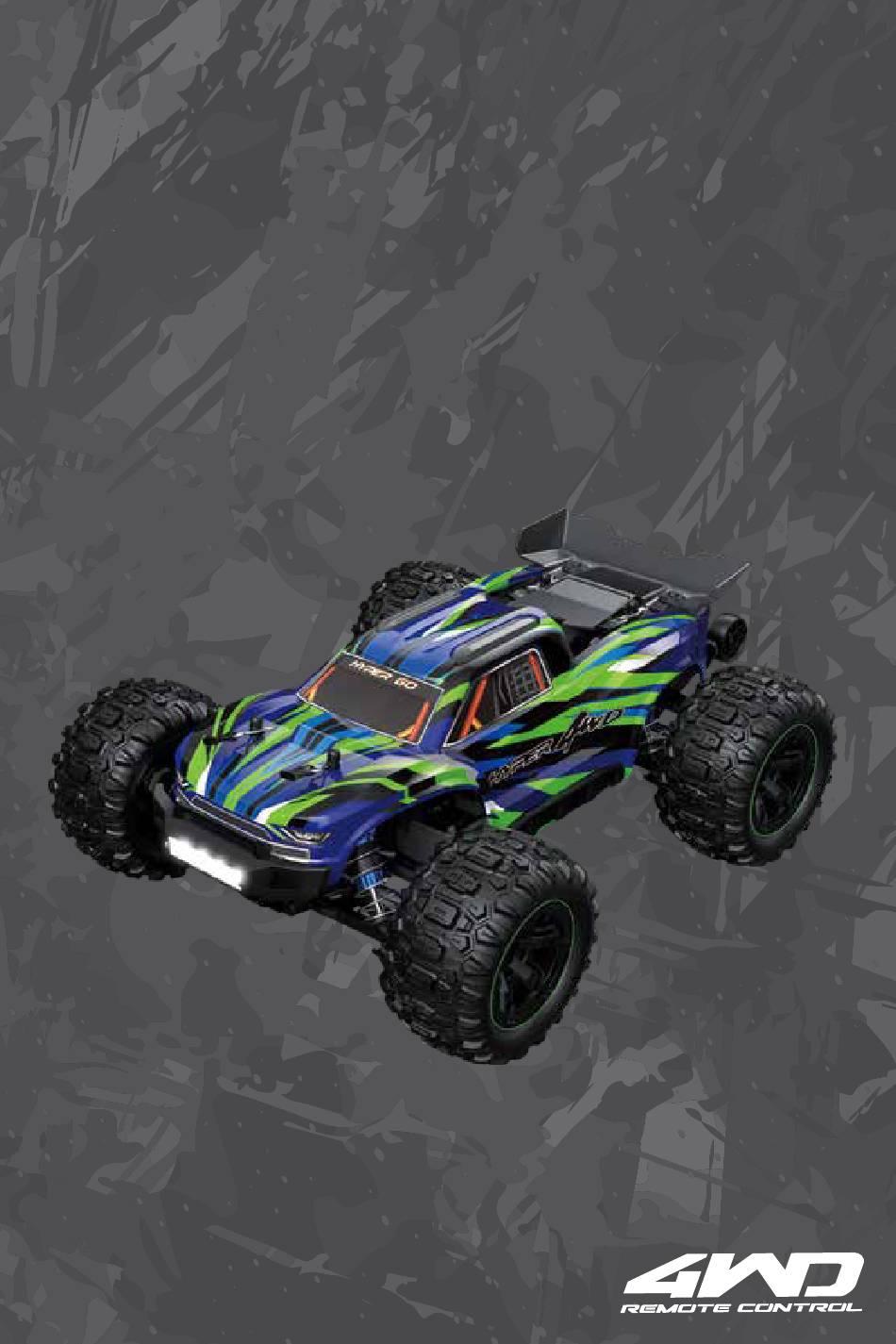

- Page 1 GT4850 1:16 Scale R/C Truggy USER MANUAL...
- Page 3 Warning: Choking hazard! This product contains small parts. NOT suitable for children under 3 years. Contains electrical components and should be kept dry at all times. Regularly check the battery charger wires, plugs and shell and other components for damage. DO NOT use if any part is damaged. Warnings &...
- Page 4 ●Be sure to read thoroughly ●Cutters, nippers and ●As the product contains the manual before you screwdrivers need careful small and sharp parts, begin. Fresh user should handling. assemble and store this seek advice from people product only in places having rich experience in out of the reach of children.
-
Page 5: Electronic Speed Controller (Esc)
Power 1. Turn on the power switch of the transmitter, the signal indicator of the transmitter flashes. 2. Press the car’s power switch button on the side of the ESC, the indicator light of high speed car flashes. 3. Please operate the high speed car after the indicator light stays on. ●... - Page 6 Transmitter Product Diagram ① ST.TRIM (Steering servo trimmer) ② Fn (CH3 Light control) ③ Power switch (OFF-70%TH-100%TH) ④ LED light ⑤ CH1: ST (Steering) ⑥ CH2: TH (Throttle) ①ST.TRIM (Steering servo trimmer) If the car can’t run straightly during driving, it can be adjusted via this trimmer. ②Fn (CH3 Light control) Short Press the “...
- Page 7 Description Indicator lights stay on The frequency has matched already, can work. Indicator lights flash quickly Matching code. a. Has lost the signal of transmitter. Indicator Lights flash slowly b. Entering into the low-power state. Indicator Lights off Entering into over current or over high-temperature protection state. Indicator Lights flash quickly Forward or backward.
-
Page 8: Remote Control Battery Installation
⑥CH2: TH (Throttle) Forward Backward Push Brake: When the car is running forward, pull back the throttle Pull Pull forward of transmitter, the car will brake. After pushing the throttle back back to the middle, pull the throttle back again, then the car will In the middle backward. -
Page 9: Battery Installation And Charging
Battery Installation & Charging Battery installation ①Turn the battery lock knob, then flip up the cover; ②Connect the receiver plug to the battery; ③Put the battery into the battery box and make sure it is installed in place; ④Flip back the cover and turn the knob to lock. Charging High speed car battery: 7.4V 850mAh 25C. - Page 10 Car Shell Installation 1. Align the 4 holes of the car body with the body pillars, then install it. 2. Insert the 4 clips into the holes to lock the car body. 2. Insert the 4 clips into the holes to lock the car body.
-
Page 11: Specifications
Specifications: • Speed: Up to 31km/h • Frequency: 2.4GHz • Remote Control Range: Up to 45m • Play Time: Up to 10 Minutes • Charging Time: Up to 90 Minutes • Batteries: Car: 7.4V Li-po, 850mA (Included) Remote: 2 x AA (Not Included) •... - Page 12 Distributed by: Electus Distribution Pty Ltd 46 Eastern Creek Dr, Eastern Creek NSW 2766 Australia Ph 1300 738 555 Int’l +61 2 8832 3200 Fax 1300 738 500 www.electusdistribution.com.au...
