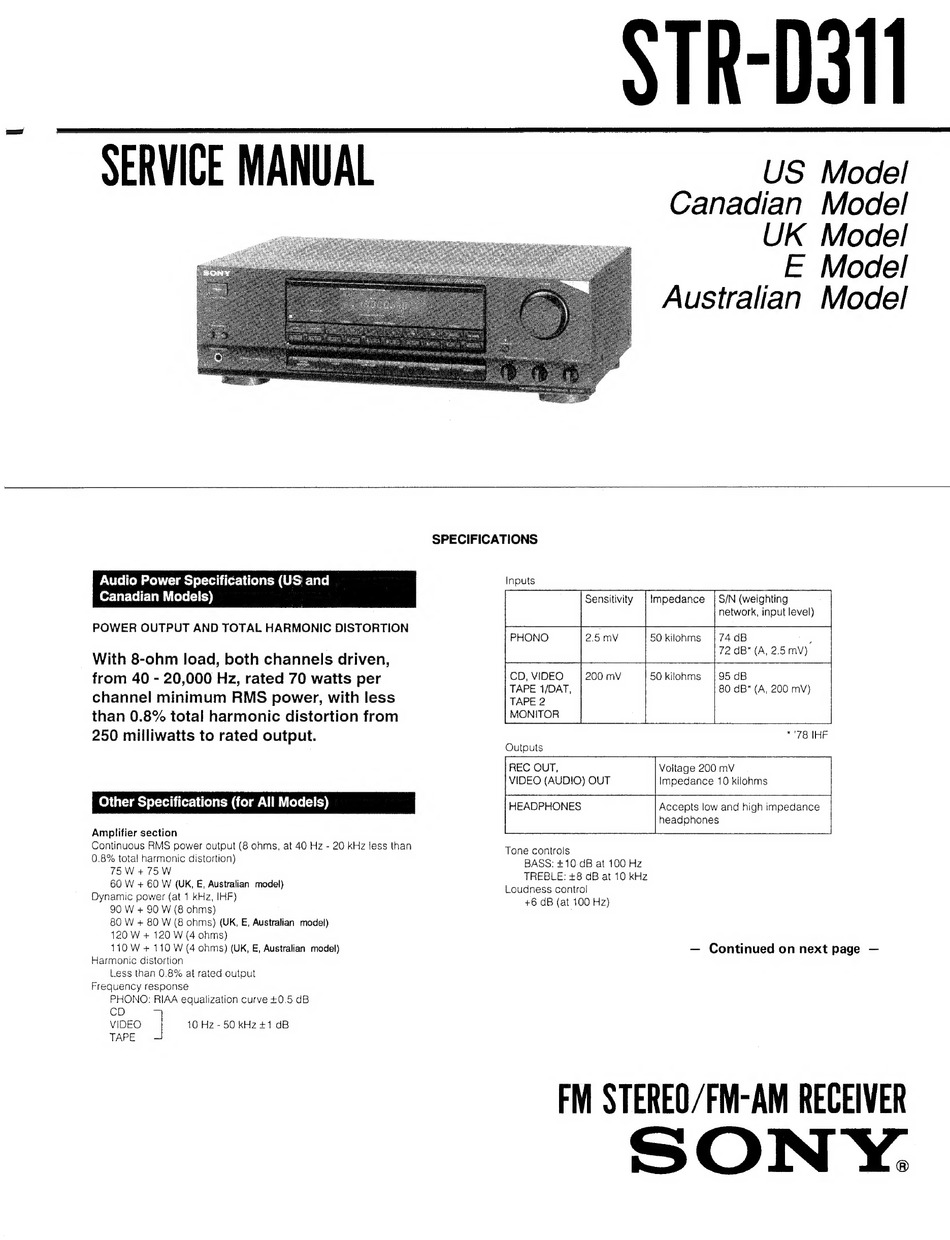

Sony STR-D311 Service Manual

ERVICE MANUAL
STR-D311
US Model
Canadian Model
UK Model
E Model
Australian Model
Audio Power Specifications (US and
Canadian Models) |
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
With 8-ohm load, both channels driven,
from 40 - 20,000 Hz, rated 70 watts per
channel minimum RMS power, with less
than 0.8% total harmonic distortion from
250 milliwatts to rated output.
Other Specifications (for All Models)
Amplifier section
Continuous RMS power output (8 ohms, at 40 Hz - 20 kHz less than
0.8% total harmonic distortion)
75W+75W
60 W + 60 W (UK, E, Australian model)
Dynamic power (at 1 kHz, IHF)
90 W + 90 W (8 ohms)
80 W + 80 W (8 ohms) (UK, E, Australian model)
120 W + 120 W (4 ohms)
110 W + 110 W (4 ohms) (UK, E, Australian model)
Harmonic distortion
Less than 0.8% at rated output
Frequency response
PHONO: RIAA equalization curve +0.5 dB
CD
VIDEO | 10 Hz - 50 kHz +1 dB
TAPE
SPECIFICATIONS
Inputs
CD, VIDEO
TAPE 1/DAT,
TAPE 2
MONITOR
200 mV
Sensitivity | !mpedance
network, input level)
PHONO 2.5mvV 50 kilohms } 74 dB com
72 dB" (A, 2.5 mV)
50 kilohms
S/N (weighting
95 dB
80 dB" (A, 200 mV)
Outputs
*'78 IHF
REC OUT,
VIDEO (AUDIO) OUT
HEADPHONES
Tone controls
BASS: +10 dB at 100 Hz
TREBLE: +8 dB at 10 kHz
Loudness control
+6 dB (at 100 Hz)
FM STEREO/FM-AM RECEIVER
SONY.
Voltage 200 mV
Impedance 10 kilonms
Accepts low and high impedance
headphones
— Continued on next page —
