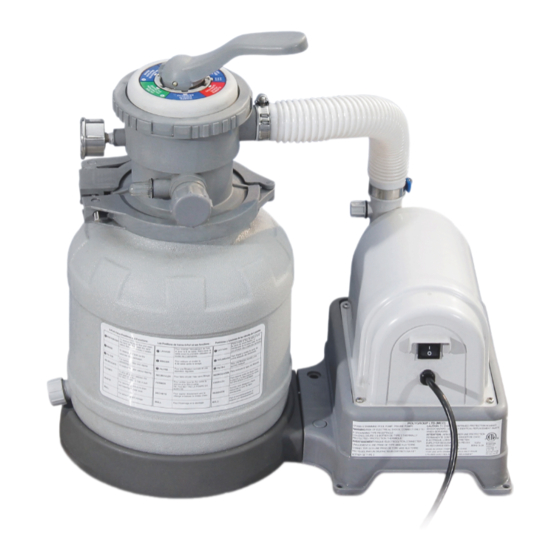

Summary of Contents for BSVILLAGE SF 4000
- Page 1 MANUALE d'USO Filtro a sabbia monoblocco SF 4000 www.bsvillage.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Warnings ................................. 3 ~ 6 Save These Instructions & Sand Pump Power Information & Part List ............7 ~ 8 Setup Instructions & Operation Instruction ......................9 ~ 13 Important Safety Information ........................... 14 Replacement Instruction ..........................15 Pool Water Care .............................. -
Page 3: Warnings
IMPORTANT SAFETY INSTRUCTIONS When installing and using this electrical equipment, basic safety precautions should always be followed, including the following : READ AND FOLLOW ALL INSTRUCTIONS Keep for Future Reference. Failure to follow these warnings and instructions can result in serious injury or death to users, especially children DANGER WARNING NO DIVING! - Page 4 6. CAUTION: For continued protection against possible electric shock this unit is to be mounted to the base in accordance with the installation instructions. 7. Do not bury cord. Locate cord to minimize abuse from lawn mowers, hedge trimmers, and other equipment. 8.
- Page 5 First Aid 1. Keep a working phone and a list of emergency numbers near the pool. 2. Become certified in cardiopulmonary resuscitation (CPR). In the event of an emergency, immediate use of CPR can make a lifesaving difference. Special Warning 1.
- Page 6 ASME American Society of Mechanical Engineers 3 Park Avenue, New York NY 10016 Contact: 212-591-8562 www.asme.org NSPI National Spa and Pool Institute (ss APSP) UL Underwriters Laboratories 333 Pfingsten Road,Northbrook IL 60062-2096 Contact: 847272-8800 www.ul.com NSF NSF International 789 N. Dixboro Rd, P.O.
-
Page 7: Save These Instructions & Sand Pump Power Information & Part List
SAVE THESE INSTRUCTIONS Preliminary Steps: 1. READ ALL INSTRUCTIONS CAREFULLY and get a thorough understanding of what is required to assemble your ST series Filter Pump. 2. Before you begin to assemble the pool, identify, count, and check all parts needed for assembly. 3. - Page 8 How to use the GFCI plug Press "RESET" Button To Start Pump Operation *Do not connect to a timer device...
-
Page 9: Setup Instructions & Operation Instruction
SETUP INSTRUCTIONS Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. WARNING: POSITION THIS PRODUCT AWAY FROM THE POOL, SO AS TO PREVENT CHILDREN FROM CLIMBING ON IT AND ACCESSING THE POOL. 1. - Page 10 5. Put the Center Pipe inside the Sand Tank . Let the 6. Attach the Sand Guard to the top opening of the Center Center Pipe seats at the center of the Sand Tank Pipe 7. Fill the tank with #20 silica sand. You can purchase the sand from your local home improvement or building material store. Slowly pour sand into the Sand Tank until the sand level is between the Min and Max marks on the Center Pipe Sand...
- Page 11 9. Place the 6-Port Valve to the Sand Tank . Make sure the 6-Port 8. Remove the Sand Guard and save for future use. Valve O-Ring is present at the bottom flange of the 6-Port Valve . Make sure the center tube extending from the valve fits securely with the Center Pipe .
- Page 12 13. Hold the CAM-HANDLE with one hand and start turning in 12. Turn the CAM-HANDLE so that the CAM-BOLT is inserted clockwise direction. into the slot on the other jaw. CAM-HANDLE CAM-BOLT CAM-HANDLE 14. Continue to turn the CAM-HANDLE to tighten the jaw until no 15.
- Page 13 17. The sand filter pump is now fully assembled. Connect the sand filter 16. Connect the Short hose between the Pump Outlet pump to the pool with the Long Hoses supplied with the pump. and the 6-Port Valve Inlet. Tighten the Hose Clamp Connect the pool Outlet to the Pump Inlet.
-
Page 14: Important Safety Information
FILTER RINSE RECIRCULATE BACKWASH CLOSED WASTE IMPORTANT SAFETY INFORMATION 1. Make sure all the Hoses are secured to the fittings on the pump and pool. 2. Always press down the 6-port Valve Handle before switching position. Inlet port 3. Always turn off the pump power when switching position. 4. -
Page 15: Replacement Instruction
PUMP MOTOR PROTECTION IMPORTANT! Your filter pump is protected by a thermal switch. The switch senses the temperature of the filter pump. If it gets too hot, the switch will stop the pump from running until it cools off. It will automatically turn back on when the filter pump has cooled down. This is a safety device to prevent pump damage and prolong service life. -
Page 16: Troubleshooting Guide
TROUBLESHOOTING GUIDE WARNING: UNPLUG THE POWER CORD BEFORE TROUBLESHOOTING THE FILTER PUMP. PROBLEM CAUSE SOLUTION A The motor is not plugged in. A GFCI power cord must be plugged into a grounded power outlet. Or GFCI not activated B Low voltage B Check the line voltage, it must be in the range of 105 to 125V. -
Page 17: Replacement Parts Ordering Information
REPLACEMENT PARTS ORDERING INFO ST1100 ST1600 Description Key# PART # PART # Sand Tank Base P58PP2884A09 P58PP1782E09 Sand Tank P58000001W05 P58000000W05 Drain Valve Cap P58PF0800W05 P58PF0800W05 Drain Valve O-Ring P58PF1731K01 P58PF1731K01 Center Pipe P586402001W1 P586402000W1 Sand Guard P58PF8891P01 P58PF8891P01 Clamp P58897023E09 P58897023E09 CAM-SHAFT Bolt Cap... -
Page 18: Asme Compliant Suction Fitting Information
ASME COMPLIANT SUCTION FITTING INFORMATION PSF-100A AND PSF-100B SUCTION OUTLET (FOR ABOVE GROUND POOL) 1. PSF-100A and PSF-100B Suction Outlets are certified by IAPMO in accordance with the ASME/ANSI A112.19.8b-2009 Suction Fitting for use in Swimming Pools, Wading Pools, Spas, and Hot Tubs. 2. - Page 19 BUSINESS SHOP S.r.l. a Socio Unico Via della Repubblica n. 19/1 - 42123 Reggio Emilia (RE) P.Iva e C.F. 02458850357 - Cap. soc. 60.000,00 € i.v. www.bsvillage.com 0522 15 36 417 info@bsvillage.com 0522 18 40 494...
