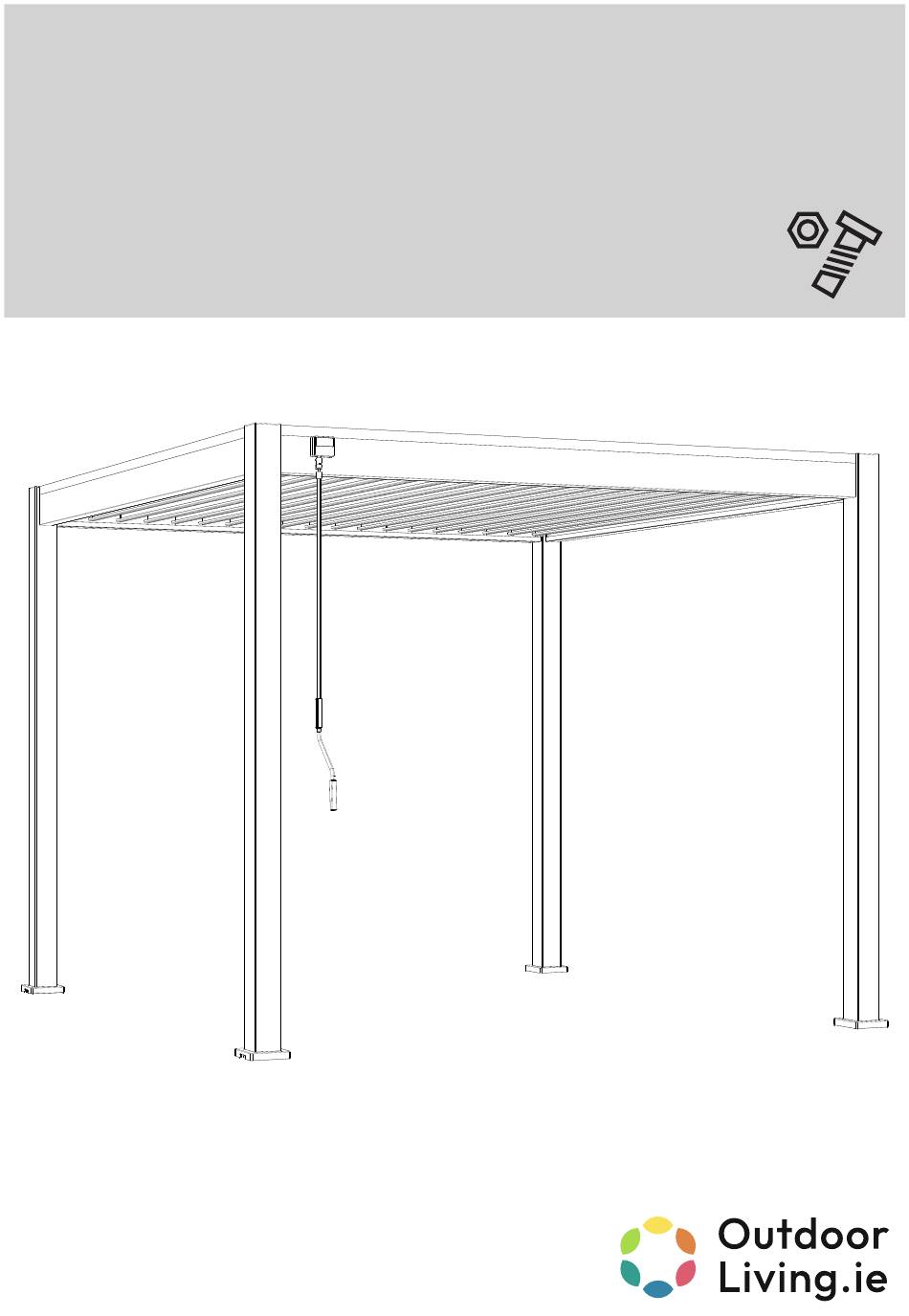

- Page 1 Intro Plus Manual PERGOLA 3×3m Assembly Instructions PA-TA2A-H-B3-3030-TAAA2...
- Page 2 Intro plus Manual Aluminum Louvers Pergola 3×3m These instructions have to be saved during the whole product life cycle. We advise you to read these very carefully before proceeding to the assembly. The user will be reliable for any damages or injuries caused due to incorrect or improper installation.
-
Page 3: Precaution Of Use
3D FOOTING MEASUREMENT (dimensions in mm) PRECAUTION OF USE This product should not be used in extreme weather: storms, violent winds, hail, and snow.We guarantee the resistance of the pergola for winds up to 100 km/h and a maximum snow weight of 50kg/m². As in the case of strong winds or snow, we highly recommend leaving the louvers open. -
Page 4: Tips And Safety Instructions
INSTRUCTIONS TIPS AND SAFETY Depending on the location and surface area, construction may be subject to building permits. Make sure you have checked with your local authorities to obtain the needed information before the assembly. Product assembly : • At least 2/3 people required •... -
Page 5: Maintenance
MAINTENANCE Regular maintenance is necessar y to ensure its longevity and aesthetic appearance. We recommend to : • Clean your pergola once or twice a year with fresh water using a sponge or cloth. • Do not use detergent or an abrasive material. •... - Page 6 CARTON 1/4(POSTS AND LOOSE PARTS) Reference Parts Quantity Reference Parts Quantity Reference Parts Quantity 10×80 lock nut 6×40 LO-1 XO-1 6×35 6×45...
- Page 7 Reference Parts Quantity Reference Parts Quantity ZO-1 ZO-5 10mm ZO-6 ZO-2 ZO-3 ZO-4 CARTON 2/4(BEAMS ) Reference Parts Quantity BO-1 Connecting Bar(FO) & Brush Inside!
-
Page 8: Assembly Guidelines
CARTON 3/4(LOUVERS ) Reference Parts Quantity CARTON 4/4(LOUVERS ) Reference Parts Quantity ASSEMBLY GUIDELINES Step 1 :Frame Connect posts and beams accordingly, so that complete the Installation of the main frame of pergola. Step 2:Louvers Assemble the louvre caps, then assemble the MAIN louvre and other louvres. Step 3:Connector Connect louvres by using relevant connectors. - Page 9 Step 1 :Frame BO-1...
- Page 10 Step 1 :Frame Parts XO-1 6×35 Tools ZO-1 ×4 ZO-2 Post installation diagram XO-1 ZO-2 3. Tighten ZO-1...
- Page 11 Step 1 :Frame Parts BO-1 Remove the end caps from the beam BO-1 BO-1...
- Page 12 Step 1 :Frame Parts Tools ZO-3 ZO-4 Connect beams to columns ZO-4 Tighten ZO-3...
- Page 13 Step 1 :Frame BO-1 Parts BO-1 Tools ZO-3 ZO-4 Connect beams to columns BO-1 ZO-4 BO-1 Tighten BO-1 ZO-1 BO-1...
- Page 14 Step 2 :LOUVERS...
- Page 15 Step 2 :LOUVERS Parts 6×40 LO-1 lock nut Tools ZO-1 ZO-2 Louver sealing plate ×18 ZO-5 ZO-2 Louver sealing plate ×19 ZO-5 ZO-2 LO-1...
- Page 16 Step 2 :LOUVERS Parts LO-1 Tools ZO-1 ZO-2 ×19 ZO-6 Louver connection Completion Diagram ×1 LO-1 ZO-6 ZO-6 LO-1...
- Page 17 Completion Diagram ×18 LO-1 ZO-6 ZO-6 LO-1...
- Page 18 Step 3 : CONNECTORS The pergola consists of 19 louvers, divided into main louvers and linkage louvers. ×1 LO-1 ×18 LO-1...
- Page 19 Step 3 : CONNECTORS Fasten rubber plugs on both ends of the louvers...
- Page 20 LO-1 LO-1 BO-1 LO-1 LO-1 LO-1 BO-1...
- Page 21 Step 3 : CONNECTORS Parts Put in the other louvers and seal the end caps...
- Page 22 Step 3 : CONNECTORS Parts 6×45 OO Separate Tools ZO-1 ZO-2 Complete the connection of the main shaft louvers...
- Page 23 Step 3 : CONNECTORS Parts lock nut Tools ZO-1 ZO-2 ZO-5 10mm Complete the connection of the connecting angle aluminum...
- Page 24 Step 3 : CONNECTORS Parts 10×80 Close the cover to complete the fixing of the pergola...
- Page 25 Check size 12MM...
