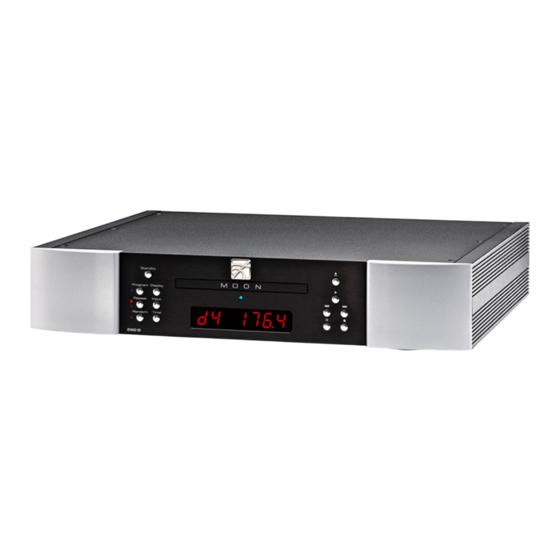

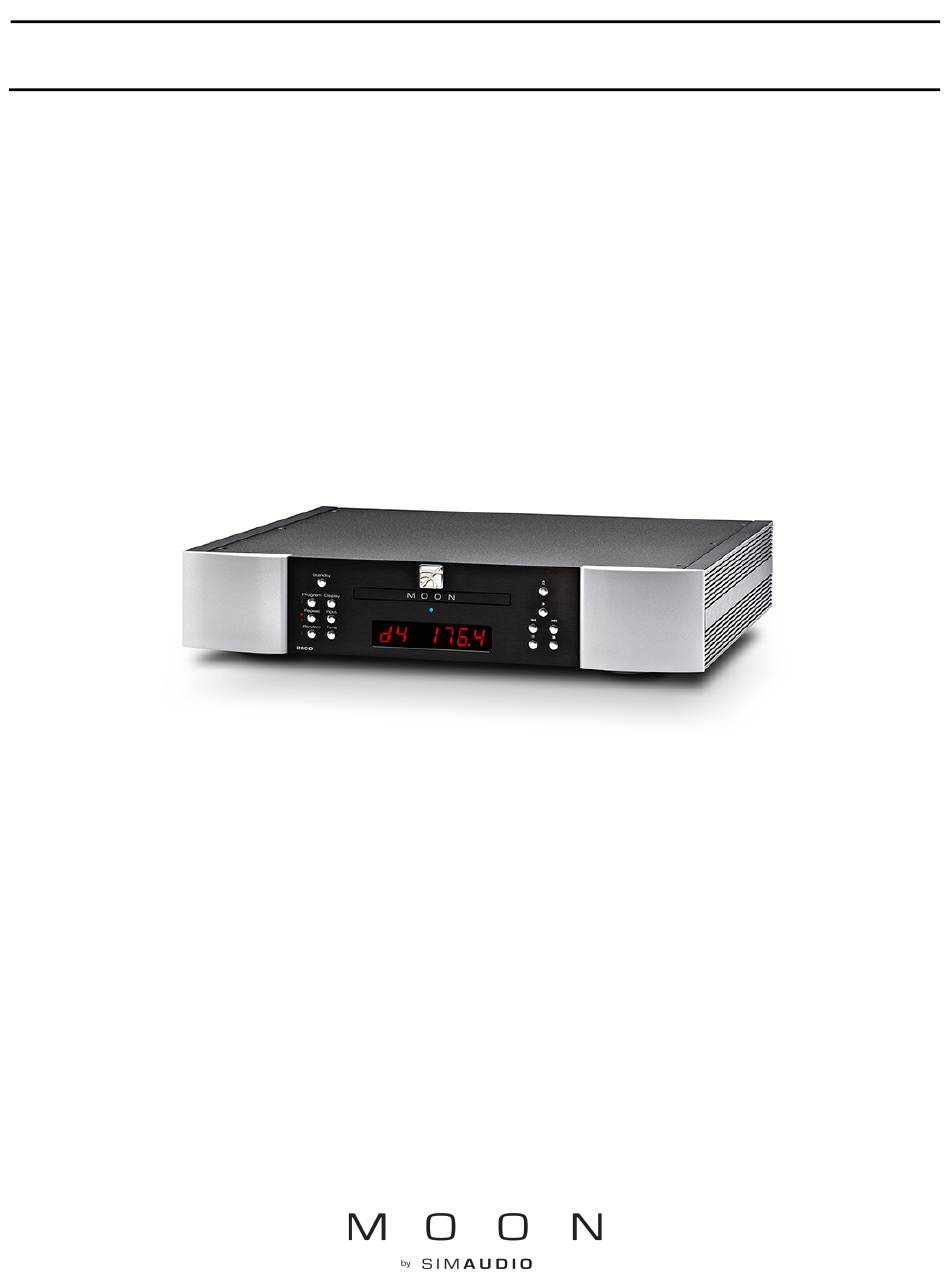

- Page 1 MOON 260D CD Transport and optional 32-bit D/A Converter Owner’s Manual...
- Page 2 260D- Owner’s Manual ATTENTION Do not ingest the battery, Chemical Burn Hazard The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
- Page 3 Important Safety Instructions 1. Read these instructions. receptacles, and the point where they exit from the apparatus. Unplug mains cord during 2. Keep these instructions. transportation. 3. Heed all warnings. 11. Only use attachments and accessories specified 4. Follow all instructions. by the manufacturer.
- Page 4 (Electromagnetic Compatibility) and LVD (Low Voltage Directive) standards of the European Community Please read all instructions and precautions carefully and completely before operating your MOON 260D CD Transport/DAC. ALWAYS disconnect your entire system from MOON NEVER wet the inside of the...
-
Page 5: Table Of Contents
Table of Contents Introduction Unpacking Installation & Placement Front Panel Controls Rear Panel Connections SimLink™ Balanced Operation Operating the 260D Remote Control Operation Specifications www.simaudio.com Simaudio Ltd., 1345 Newton Road Boucherville, Québec J4B 5H2 CANADA Date Code: 20240202... -
Page 6: Introduction
260D- Owner’s Manual Introduction Thank you for selecting the MOON MOON 260D CD Transport as a part of your music/cinema system. This component has been designed to offer state-of- the-art high-end performance in an elegant package, Your MOON 260D CD Transport incorporates many while retaining all the sonic hallmarks on which significant design features to achieve its “world... -
Page 7: Unpacking
The customized packaging is specially designed to protect the 260D from any potential damage during transit. Please write the serial number of your new MOON 260D in the space provided below for future reference. Serial Number Installation &... -
Page 8: Front Panel Controls
IR receiver. The blue indicator LED suspend the playing of the programmed selection. turns off when the MOON 260D is in “Standby” Pressing ¢ a second time will clear your program mode. The 260D will automatically go into standby selection from the 260D’s memory. - Page 9 (4) dashes “----”. These dashes indicate that the MOON 260D is in the process of locking onto a digital signal – this may take several seconds.
- Page 10 Press u to begin playing a compact disc. Pressing u while a track is already playing will result in the To load a compact disc into the MOON 260D, press current track immediately playing again, starting p to open the drawer. While the drawer is opened, from the beginning.
-
Page 11: Rear Panel Connections
Rear Panel Connections Figure 2: MOON 260D Rear panel The rear panel will look similar to Figure 2 (above). The analog outputs are on the left side; There are two pairs, “Right” and “Left”, each with a single-ended RCA and balanced XLR connector. These are “Fixed Level”... -
Page 12: Simlink
‘CD’. On and Off Sequence The main feature of SimLink™ on the MOON 260D, To avoid having any annoying noises (ie. “thumps” involves the “Standby” function. By pressing down and “pops”) emanate from your speakers when and holding the “Standby”... -
Page 13: Remote Control Operation
Remote Control Operation The MOON 260D CD Transport uses the ‘CRM-3’ full-function remote control (figure 3). It operates on the Philips RC-5 communication protocol and can be used with other MOON components. The ‘CRM-3’ remote uses two CR-2032 batteries (included). - Page 14 For MOON 260D units equipped with the optional For example, to switch from “D3” to “D1” you may 32-bit DAC, you can sequentially scroll, either either press ¡ INPUT three (3) times or press INPUT backwards or forwards, through all four (4) available ¢...
- Page 15 Figure 4: Remote operation with SimLink™ In figure 4 we have a 180 MiND Music Streamer connected to a MOON 260D CD Transport via their respective SimLink™ ports (using a 1/8” mini-jack cable), and the 260D connected to a 340i Integrated Amplifier also via their respective SimLink™...
-
Page 16: Specifications
Positive Pin 3 Negative NOTE: If you require the RS-232 codes for your MOON 260D, please visit the "Contact Us" page and complete the "Information request" form on our website at www.simaudio.com. Fuse Replacements: F1 : 120V version uses a 0.2A slow blow (5x20mm) 230V version uses a 0.1A slow blow (5x20mm)
