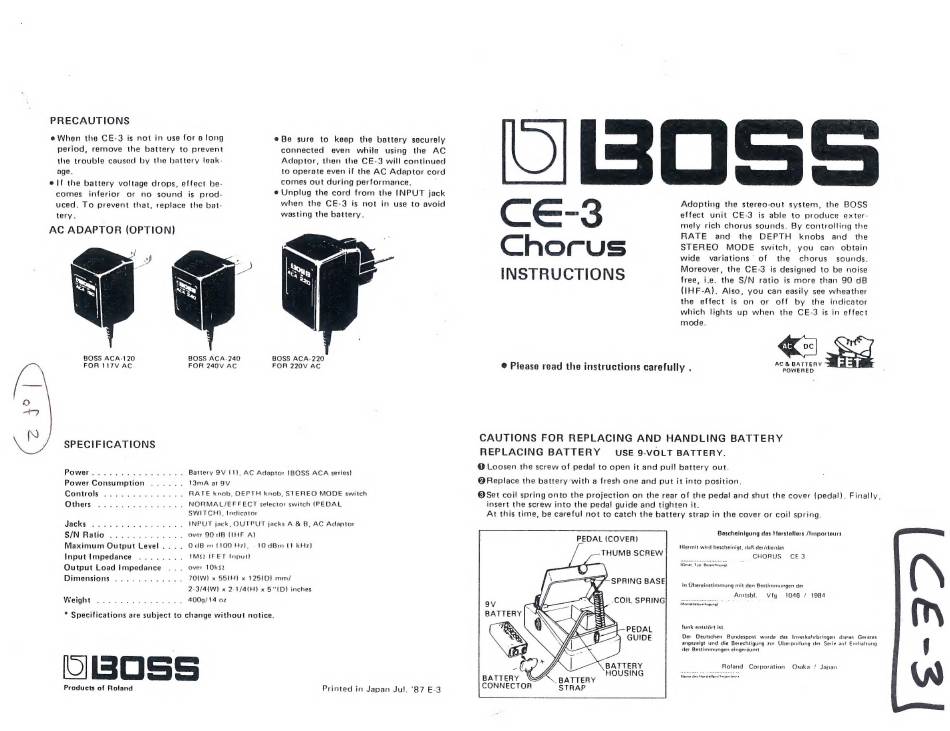

Boss Chorus CE-3 Instructions

PRECAUTIONS
e When the CE-3 is not in use for a long e Be sure to keep the battery securely
period, remove the battery to prevent connected even while using the AC
the trouble caused by the battery leak- Adaptor, then the CE-3 will continued
age. to operate even if the AC Adaptor cord
e |f the battery voltage drops, effect be- comes out during performance. f
comes inferior or no sound is prod- e Unplug the cord from the INPUT jack
AC ADAPTOR (OPTION) RATE and the DEPTH knobs and the
Chorus STEREO MODE switch, you can obtain
wide variations of the chorus sounds.
INSTRUCTIONS Moreover, the CE-3 is designed to be noise
free, i.e. the S/N ratio is more than 90 dB
(IHF-A). Also, you can easily see wheather
the effect is on or off by the indicator
which lights up when the CE-3 is in effect
mode.
|
BOSS ACA-120 BOSS ACA-240 BOSS ACA-220 a 4
FOR 117V AC
FOR 240V AC FOR 220V AC
e Please read the instructions carefully .
A POWERED
CAUTIONS FOR REPLACING AND HANDLING BATTERY
SPECIFICATIONS 3
REPLACING BATTERY USE 9-VOLT BATTERY.
@ Loosen the screw of pedal to open it and pull battery out.
FONU as asumida a direa Battery 9V (1), AC Adaptor (BOSS ACA series) es ek
Power Consumption L... 13MA at 9V @Replace the battery with a fresh one and put it into position.
CONUONS 6 oc ce ee soras RATE knob, DEPTH knob, STEREO MODE switch @Set coil spring onto the projection on the rear of the pedal and shut the cover (pedal). Finally,
Others. « cessive us yera NORMAL/EFFECT selector switch (PEDAL insert the screw into the pedal guide and tighten it.
SWITCH), Indicator At this time, be careful not to catch the battery strap in the cover or coil spring.
g
MACKS: ers, ech sel a 4. 2 ovek tee INPUT jack, OUTPUT jacks A & B, AC Adaptor
S/N Ratio ............. over 90 dB (IHF A) PEDAL (COVER) Bescheinigung des Horstellars /Importours
Maximum Output Level... . OdBm (100 Hz), 10 dBm (1 kHz) Hiermit wird bescheinigt, da der/die/das
Input Impedance ........ IMO (FET Input) THUMESEREWI eea CHORUS CE3
Output Load Impedance ... over 10k i i
Dimensions
............ 70(W) x 55(H) x 125(D) mm/
J - SPRING BASE
i nai i i
-3/4(W) x 2-1/4(H) x 5"(D) inches V in Ubereinstimmung mit den Bestimmungen der
2-3/ x2
x
A
Amtsbl. Vig 1046 / 1984
Weight ............... 4009/14 oz av C34 -COIL SPRING! x. i
* Specifications are subject to change without notice. BATTERY =
PEDAL funk antstört ist
GUIDE Der Deutschen Bundespost wurde das Inverkehrbringen dieses Gerates
angezeigt und die Berechtigung zur Uberprufung der Serie aul Embhaltung
der Bestimmungen eingeräumt
BATTERY Roland Corporation Osaka / Japan
HOUSING =
P; (es
lD] BOSS
BATTERY . BATTERY
Products of Roland Printed in Japan Jul. '87 E-3 CONNECTOR STRAP
$-
