- Page 1 HDMI 4Kx2K Audio Inserter # 15218 Operation Manual...
- Page 2 Introduction The HDMI 4K×2K Audio Inserter allows an external audio signal to be inserted into your HDMI or DVI (with an HDMI to DVI adaptor) signal path. The unit allows you to insert analog stereo or multi-channel surround sound (via the digital optical input) giving you the flexibility to add your choice of audio to the video while extending your HDMI signal.

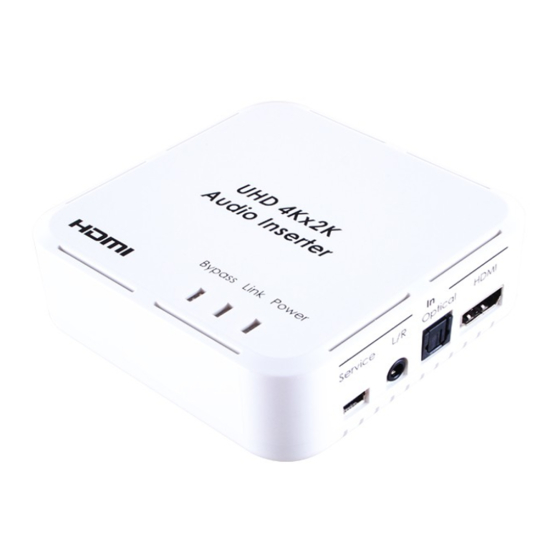

- Page 3 Operation Controls and Functions Top Panel Bypass LED: This LED will illuminate when the audio input is switched to HDMI, bypassing the external audio inputs Link LED: This LED will illuminate when an active HDMI signal is being received. Power LED: This LED will illuminate when the unit is connected to an active power supply.
- Page 4 DVD/Blu-ray player with a stereo analog (L/R) audio signal output. Optical In: Connect to a digital audio source such as AV receiver or DVD player with a digital optical signal output. HDMI In: Connect to a source such as Blu-ray player, games console or PC/laptop with an HDMI output Left Panel 1.
- Page 5 Connection Diagram...
- Page 6 Specifications Video Bandwidth 300Mbps/10.2Gbps Input Ports 1×HDMI, 1×Optical, 1×3.5mm Mini-jack, 1×Mini-USB (Manufacturer use only) Output Port 1×HDMI Audio Sampling Rates HDMI: Up to 192kHz S/PDIF (Optical): Up to 192kHz L/R: Up to 48kHz HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby TrueHD &...
