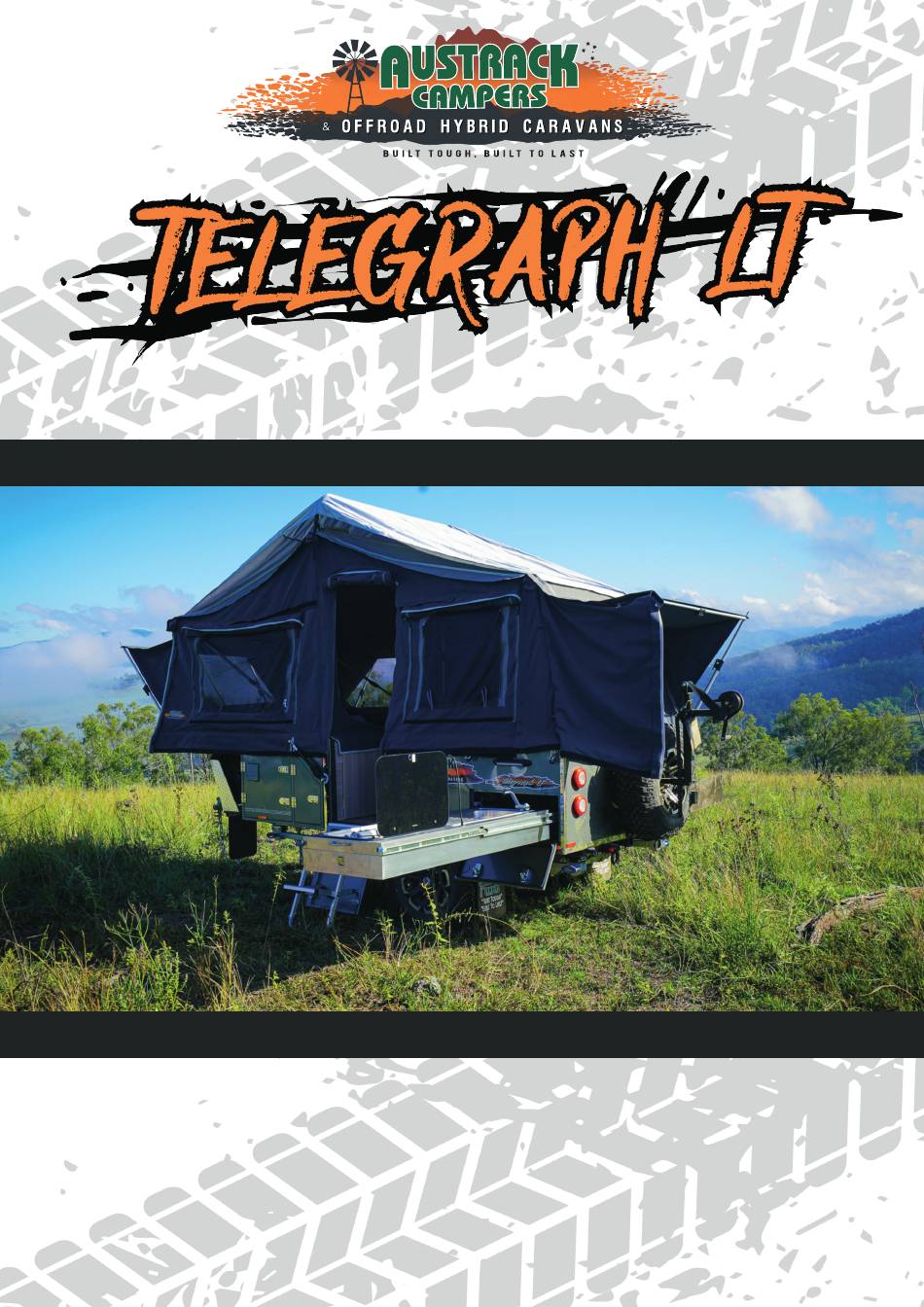

USER MANUAL
Please read owner's manual before using the equipment. Third party component manuals
should be read in conjunction with this manual. Maintenance guidelines must be met or
exceeded, failing to meet these guidelines may result in serious injury or death and property
damage. Specification may change without notice.
©Copyright Austrack Campers 2023
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AUSTRACK CAMPERS TELEGRAPH LT
Summary of Contents for AUSTRACK CAMPERS TELEGRAPH LT
- Page 1 Please read owner’s manual before using the equipment. Third party component manuals should be read in conjunction with this manual. Maintenance guidelines must be met or exceeded, failing to meet these guidelines may result in serious injury or death and property damage. Specification may change without notice. ©Copyright Austrack Campers 2023...
-
Page 2: Table Of Contents
Dometic Air Conditioners ......3 Austrack Academy ........28 Cruisemaster ..........3 Spare parts request form ......28 Ark ..............3 Austrack Campers Blog ......28 General Safety Introduction ......4 Weight Explanations ........5 Load Distribution ..........6 Specifications ........... 7 Electrical System .......... -
Page 3: Store Locator
Store Locator Head Office 07 5498 3888 sales@austrackcampers.com.au Scan for Map Caboolture Showroom 73 Lear Jet Drive Caboolture, QLD 4510 07 5408 7111 caboolture@austrackcampers.com.au Rocklea Showroom 7 Collinsvale Street Rocklea, QLD 4106 07 3112 7868 rocklea@austrackcampers.com.au Newcastle Showroom 4/2364 Pacific Highway Heatherbrae, NSW 2324 02 4006 6833 newcastle@austrackcampers.com.au Melbourne Showroom... -
Page 4: Re-Sellers And Suppliers
Re-sellers and suppliers Rising Sun Townsville – Re-seller 35 Bowen Road Rosslea, QLD 4812 07 4779 0211 Precision Motors Armidale – Re-seller 101/107 Barney Street Armidale, NSW 02 36772 5866 Redarc www.redarc.com.au Technical support 1300 733 272 Projecta www.projecta.com.au Technical support 1800 422 422 Truma hot water systems https://www.leisure-tec.com.au/services/ Technical support 1300 072 018... -
Page 5: General Safety Introduction
This manual is supplied as a reference to required maintenance of your new Austrack Campers Hybrid offroad camper. Failure to use and maintain the product in accordance with what is outlined in this manual may affect your warranty. -
Page 6: Weight Explanations
Weight Explanations GCM Gross Combination Mass. The weight of your fully loaded vehicle and fully loaded trailer when hitched together. GVM Gross Vehicle Mass. This is the weight of your fully loaded vehicle. TARE The weight of the vehicle or trailer without water, fuel or any cargo. ATM Aggregate Trailer Mass. -
Page 7: Load Distribution
Load Distribution When heading away on your next big adventure it is important to load your camper correctly to distribute weight evenly and achieve a suitable ball weight load and prevent loading in a manner that can cause a caravan to sway and/or roll excessively left and right. The optimum ball weight on a caravan is between 8% and 12% of the total camper weight. -
Page 8: Specifications
Specifications Finish • Baked enamel metallic finish with polished aluminium trim. Construction • Zincanneal steel with underbody deadener protected chassis & drawbar. Fully Welded hot dipped galvanised full RHS box drawbar and chassis 100 x 50 x 4.0mm Hitch • McHitch 3.5T Full Off-road Coupling. -
Page 9: Electrical System
Solar The Telegraph LT comes with a 200 A free standing solar panel. This is designed to plug into the Anderson plug on the drawbar. It has a built-in solar regulator and is plug and play. -
Page 10: Water System
Water system The Telegraph LT is fitted with 1 x 100 L Foodgrade poly water tank with stainless steel tank guard. The tank has a bung and tap on the bottom of the tank for easy draining and rinsing. The water tank filler is closer to the rear of the trailer. The filler is equipped with a breather hole which will allow the air to escape the tank while the water is going in. -
Page 11: Braking Systems
Anderson Plug The Telegraph LT is fitted with an Anderson connection at the drawbar. This is wired directly to the batteries through a circuit breaker inside the water tank change over compartment. This is designed to run all regulated sources of charging to the batteries and can also be utilised as a power output if required. -
Page 12: Handbrake
Handbrake The handbrake is operated mechanically by means of a cable. The cable attaches to the backing plate and when the handbrake is applied the cable creates a force on the primary and secondary brake shoe. This causes them to spread until they make contact with the brake drum surface. The cable adjuster needs to provide enough tension that the handbrake is 1/3 raised when the camper is unloaded. -
Page 13: Regular Checks
Regular Checks Wheel Nuts Wheel nuts should be checked on a regular basis usings a torque wrench and tightened to 140 Nm. It is not recommended to use a rattle gun, as there is no way to know how tight the nuts are. Overtightening will damage the studs and will cause them to fail prematurely. -
Page 14: Setting Up Campsite
Setting up campsite Picking a spot that is relatively level, gets sun during the day and is not under any large tree’s, especially Gum trees, is important. If you are free camping, do not set up too close to a river or in an area that is prone to flash flooding. Stabiliser Leg Levelling ramps will need to be used if excessive side to side levelling is required. -
Page 15: Camper & Canvas Care
Camper & Canvas Care Seasoning the canvas The camper trailer canvas is pre-seasoned; however, this is before the camper has been assembled and sewn together. This means that before you take the camper out for the first time, it will need to be seasoned to avoid any leaks. -
Page 16: Gas System
Gas System The Telegraph LT is fitted with plumbed gas, with the gas cylinder holders mounted inside the front stone guard. The gas hose has the LCC27 connection and requires the matching gas cylinder to be able to use the system. The regulator has a one-way valve on top to allow for easy switching of the gas cylinders. -
Page 17: External Kitchen
External Kitchen Your Telegraph LT is equipped with a quality stainless steel kitchen complete with a Dometic 3 burner cooktop, sink and drying rack. The kitchen is located at the front passenger side of the camper and can be accessed by opening the access hatch, once the hatch is open you will see 2 blue handles, one on each side, press down and gently slide the kitchen out. -
Page 18: Care Advice
Care Advice External Paint The external surface requires regular maintenance in the same way as your vehicle. Only use mild, ammonia free detergents paired with a non-abrasive wash pad or sponge to wash the camper. Only use wax-based polishes, do not use cutting compounds or abrasive pastes. These will leave scratches and may expose the base material. -
Page 19: Troubleshooting
Troubleshooting Category Issue • Troubleshooting Steps Electrical – Not Charging from 240 V • Check mains power is connected 12 v • Check RCD not tripped on incoming power supply • Check RCD not tripped in camper Check charger is plugged into power point •... - Page 20 External cooker not lighting • Make sure bayonet hose is connected to the fitting on the rear of the camper • Check gas hose is not kinked • Make sure there is gas in the bottle • Make sure the correct gas cylinder is selected on the regulator •...
-
Page 21: Warranty T&C's
Head Office by telephone: (07) 5498 3888 or email: service@austrackcampers.com.au. By purchasing an item from Austrack Campers, you agree to all terms and conditions of warranty below. Austrack Campers registered business address is 73 Lear Jet Drive, Caboolture, QLD, 4510. - Page 22 In addition, you must cease using the product immediately upon any failure or damage. The product should be taken to an authorised Austrack Campers outlet prior to any further use. 5. Damages resulting from normal aging, wear and tear or neglect are not covered. The limited Warranty does not cover damage other than that resulting from defects in material or workmanship.
- Page 23 BEYOND THE DESCRIPTION ON THE FACE HEREOF, EXCEPT AS MAY BE PROVIDED BY AUSTRALIAN CONSUMER LAW. THIS WARRANTY IS GIVEN ONLY BY AUSTRACK CAMPERS, AND MAY BE MODIFIED ONLY BY AUSTRACK CAMPERS. THIS LIMITED WARRANTY IS THE FINAL EXPRESSION OF OUR AGREEMENT, AND IS A COMPLETE AND EXCLUSIVE STATEMENT OF THE TERMS OF THAT AGREEMENT.
- Page 24 5. general consumables (bearings, light bulbs etc). Factory Seconds, Ex-Demonstration and Damages Goods Occasionally, Austrack Campers may offer items for sale deemed to be “factory seconds”, “ex- demonstration”, or “damaged”. Such items are sold on an “as is” basis. No warranties, refunds, credits, exchanges or similar associated apply to “factory seconds”, “ex- demonstration”, or “damaged”...
- Page 25 Austrack Campers. Austrack Campers Head Office are the only ones who are able to authorise warranty claims. 12. Austrack Campers are not liable, (in part or whole) for any warranties, either express or implied, made by agents or resellers on behalf of Austrack Campers without the knowledge or express written permission of Austrack Campers.
- Page 26 1. Photos of the damaged goods; and 2. Any other relevant evidence of the shipping damage of the Austrack Campers good. Warranty Procedures 1. All claims must be lodged by the customer, via our website using our online Warranty Claim Form.
- Page 27 Make Contact For questions relating to warranties, please contact us on (07) 5498 3888 or service@austrackcampers.com.au. Business address: 73 Lear Jet Drive, Caboolture, QLD, 4510. Warranty Claim Form QR code Page | 26...
-
Page 28: Maintenance Schedule
Maintenance schedule Page | 27... -
Page 29: Quick Links
Quick Links Austrack Academy Scan here for videos, tips and tricks, maintenance schedule and troubleshooting guide. Spare parts request form Austrack Campers Blog Page | 28...
