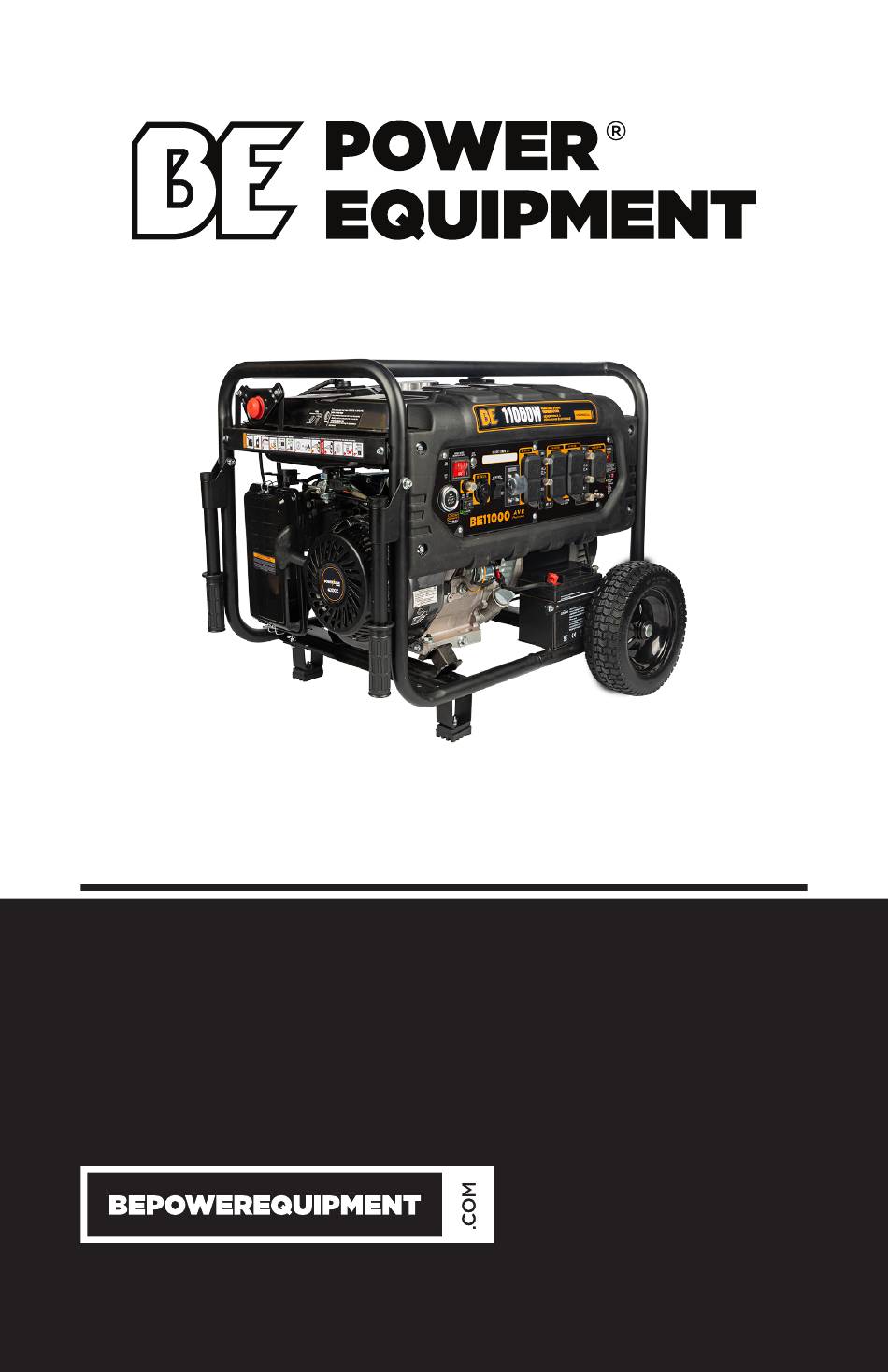

BE11000
OPERATORS
MANUAL
OCTOBER 2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE11000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BE Power Equipment BE11000

Summary of Contents for BE Power Equipment BE11000

  • Page 1 BE11000 OPERATORS MANUAL OCTOBER 2023...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION Introduction & Identification Numbers .............. 3 IMPORTANT SAFETY WARNINGS Safety Warnings....................4 SET-UP Component List....................8 Assembly ......................9 Control Panels....................11 Outlet Function....................12 OPERATION Pre-Operation Safety & Inspection Procedures ..........13 Start-Up Procedure ..................14 Shutdown Procedure ..................14 General Operation..................15 MAINTENANCE Maintenance Schedule..................

  • Page 3: Introduction & Identification Numbers

    All the information in this manual is based on the latest product information available at the time of printing. BE Power Equipment reserves the right to make changes at any time without notice or incurring any obligation.

  • Page 4: Important Safety Warnings Safety Warnings

    SAFETY OVERVIEW SAVE THESE INSTRUCTIONS - SAFETY RULES This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. The safety alert symbol ( ) is used with a signal word (DANGER, CAUTION, WARNING), a pictorial and a safety message to alert you to hazards.
  • Page 5 SAFETY OVERVIEW • NEVER operate the generator in an explosive atmosphere, near combustible materials or where ventilation is not sufficient to carry away exhaust fumes. Exhaust fumes can cause serious injury or death. • If you start to feel sick, dizzy, or weak while using a generator, get to fresh air RIGHT AWAY.
  • Page 6 SAFETY OVERVIEW This product has been designed with internal grounding or floating bonded neutral. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. DANGER - Improper grounding can result in a risk of electrocution. Check with a qualified electrician for your local requirements if you are in doubt as to whether the unit is properly grounded.
  • Page 7 SAFETY OVERVIEW • Do not operate in rain, in wet or damp conditions, or with wet hands. The operator may suffer severe electric shock if the generator is wet due to rain or snow. If wet, wipe and dry it well before starting. Do not pour water directly over the generator, nor wash it with water.

  • Page 8: Component List

    COMPONENT LIST 1: Fuel Tank Cap - Provides access to the fuel tank for refueling purposes. 2: Fuel Tank - Storage for fuel 3: Control Panel - Contains all controls and plugs for the controlling the generator. 4: Magnetic Oil Dipstick - Multipurpose dip stick that absorbs iron filings that may get into your engine oil and allows the user to check oil levels.

  • Page 9: Assembly

    ASSEMBLY - PARTS part description quantity WHEELS 10” WHEEL HANDLES 32 CM SUPPORT FEET WHEEL SHAFT 19MM DIAMETER CIRCULAR GASKET 19MM DIAMETER R PIN CIRCULAR GASKET M8x45 BOLT M8x16 BOLT M8 NUT...
  • Page 10 ASSEMBLY SUPPORT FOOT INSTALLATION 1. Align the two holes on the support foot with the two holes on the bottom of the frame. Place two bolts through the support foot hole and the frame hole. 2. Fasten the nut to the bolt, tighten with a wrench.

  • Page 11: Control Panels

    CONTROL PANEL - BE11000 1: Light Switch - Press once to turn the LED light on. Press again to turn the light off. 2: LED Light 3: Engine Switch - Press ON to start the engine, press OFF to turn the engine off.

  • Page 12: Outlet Function

    OUTLET FUNCTION IF THE VOLTAGE SWITCH IS SET TO 120V ONLY Set the voltage switch to “120V ONLY” Output voltage 120V current 20A. 120V (Voltage) X 20A (Current)= 2400W (Output Power) Output voltage can only be 120V and the current can only be 30A. 120V (Voltage) X 30A (Current)= 3600W (Output Power) attention: The total power output of the socket must not exceed the rated power of the generator.

  • Page 13: Operation

    PRE-OPERATION SAFETY & INSPECTION PROCEDURES REFUELING: DANGER - GASOLINE IS HIGHLY FLAMMABLE AND TOXIC. DO NOT OVERFILL THE FUEL TANK. TIGHTEN FUEL CAP ONCE YOU HAVE REFILLED THE MACHINE. Remove the fuel tank cap and add at least 87 octane gasoline. ATTENTION - IF YOU SPILL FUEL WHILE REFILLING THE UNIT, BE SURE TO WIPE UP AND EXYCESS FUEL THAT MAY HAVE SPILLED.

  • Page 14: Start-Up Procedure

    START-UP AND SHUTDOWN PROCEDURE START-UP PROCEDURE FILL THE UNIT WITH 87 FILL UNIT WITH OIL OR CONNECT THE OCTANE GASOLINE. CHECK OIL LEVELS AS BATTERY BY NEEDED. ATTACHING THE CLIPS. TURN FUEL SWITCH TO FLIP ECO MODE SWITCH PRESS ENGINE SWITCH “ON”...

  • Page 15: General Operation

    OPERATION OPTIMAL ENVIRONMENT AMBIENT TEMPERATURE -20ºC to 40ºC OPTIMAL HUMIDITY Below 95% Below 1,500m (At regions above 1,000m the unit OPTIMAL ALTITUDE will generate less power) In certain environments, total output power can be affected. • Every 5ºC increase in ambient temperature above optimal will reduce your units output by ~2%.
  • Page 16 OPERATION BEFORE CONNECTING POWER • Make sure all electrical equipment, including wires and plugs, are in good condition before connecting to the generator. • Make sure all loads driven by the generator are within the rated load range. • Ensure the connected load is within the rated range for current. ATTENTION: IT IS RECOMMENDED TO GROUND YOUR GENERATOR BEFORE EACH USE.
  • Page 17 BATTERY CHARGING The lifespan of a battery in storage is about 6 months. If your generator isn’t used for a long time, the battery will lose charge. If the battery loses charge, you can attempt to recharge it. If charging the battery does not work, you must replace the battery.

  • Page 18: Maintenance Schedule

    MAINTENANCE SCHEDULE Following the maintenance schedule is the best way to ensure safe, economical, and zero-failure operation. In order to maintain good condition, you must inspect your unit regularly. MAINTENANCE CYCLE EVERY 3 EACH MONTH EACH YEAR EACH MONTHS 20 HOURS 100 HOURS ITEM 50 HOURS...

  • Page 19: Spark Plug Replacement

    SPARK PLUG REPLACEMENT WARNING: ALWAYS SHUT DOWN THE ENGINE BEFORE PERFORMING ANY MAINTENANCE. IN ORDER TO PREVENT THE ENGINE FROM STARTING, REMOVE THE SPARK PLUG CAP FROM THE SPARK PLUG. The spark plug is an important part of the generator, which must be inspected regularly.

  • Page 20: Oil Service

    OIL SERVICE CARBURETOR ADJUSTMENT The carburetor is an important component of the engine. If the carburetor needs to be serviced, contact your service center to have a proffesional ensure that necessary ajustments are done correctly. OIL REPLACEMENT WARNING: DO NOT DRAIN OIL IMMEDIATELY AFTER OPERATING YOUR UNIT.

  • Page 21: Air Filter

    AIR FILTER SERVICE The air filter can get dirty after prolonged use and needs to be cleaned or replaced regularly. If frequently operating in dusty environments, maintenance must be done more often. 1. Open the air filter cover. Bolt type locking: Remove screws to remove the cover plate Snap on locking:...

  • Page 22: Storage

    STORAGE AND TRANSPORT If you are planning to store your generator for longer than 3 months, it is important to follow the necessary storage procedure to prevent damage to the machine. 1. Follow the shutdown procedure to shut down your generator. 2.

  • Page 23: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION FUEL RELATED: FUEL RELATED: 1. No fuel in tank or fuel valve closed. 1. Fill fuel tank with fresh 87+ octane gasoline and open the fuel valve. Do not use gasoline with more than 10% ethanol (E15,E20,E85 etc.) 2.
  • Page 24 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION 1. Spark plug cap is loose. 1. Check cap and wire connections 2. Incorrect spark plug gap or damaged 2. Re-gap or replace spark plug. spark plug. 3. Defective spark plug cap. 3. Replace spark plug cap. engine 4.
  • Page 25 TECHNICAL PARAMETERS ITEM BE11000 Rated Power (Kw) Max Power (Kw) Engine Model 190F/P-1 Valve Clearance Input Valve: 0.10 ~ 0.15mm, Output Valve: 0.15 ~ 0.20mm Stroke X Bore (Mm) 92x69 Engine Type 4-stroke Displacement (Cc) Gas Distribution Mode Cooling Mode...

  • Page 26: Circuit Diagram

    CIRCUIT DIAGRAM - BE11000...

  • Page 27: Warranty Statement

    WHO GIVES THIS WARRANTY (WARRANTOR): BE POWER EQUIPMENT INC. WHO RECEIVES THIS WARRANTY(PURCHASER): The original purchaser (other than for purposes of resale) of the BE Power Equipment generator. WHAT PRODUCTS ARE COVERED BY THIS WARRANTY: Any portable generator supplied or manufactured by Warrantor.
  • Page 28 WARRANTY STATEMENT PRODUCT IDENTIFICATION Model Number: Serial Number: Date of Purchase: Dealer Name: NOTES...
  • Page 29 NOTES...
  • Page 30 NOTES...
  • Page 31 NOTES...
  • Page 32 NEED HELP? CALL +1 800-663-8331...
