Summary of Contents for LYNKSYS LM500

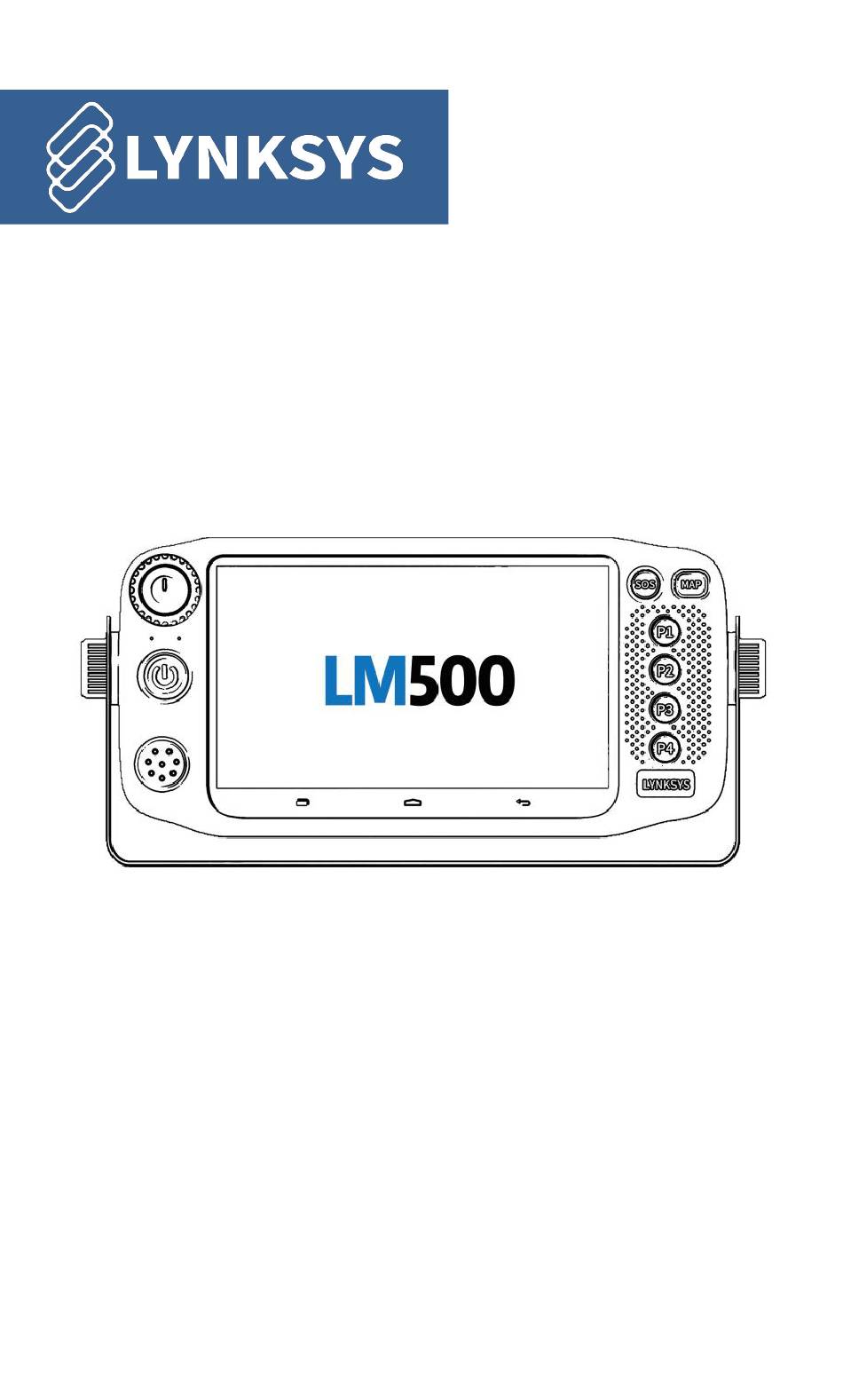

- Page 1 LYNKSYS TECHNOLOGIES CO., LTD.
- Page 2 Check list Please check the following accessories before you discard the packing material. Please contact your local dealer immediately if there is any missing or damage parts. Accessories Quantity LM500 Power cable Bracket Quick Start Guide Antenna Palm Mic...

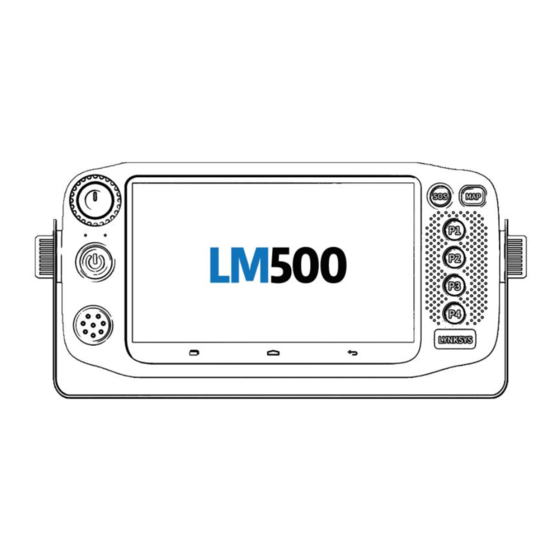

- Page 3 1. Overview of LM500 LED indicator light Operating state Indication Standby Green(Blinking) Searching Network Green(Fast Blinking) Power On Green(Blinking) PTT Transmitting Green(Steady) PTT Receiving Green(Steady) Offline Red(Steady)
-
Page 4: Installation Of Sim Card
2. Installation of SIM card 1. Uncover the SIM slot at the back of the LM500 2. Insert the SIM card as shown in the picture 3. Insert the SD card into the slot as show in the picture 4. Cover the slot... - Page 5 3. Power the LM500 Connect the power cable to the rear of the LM500 Risk of electric shock Dry location use only DC output of 16 volts Power Wire...
-
Page 6: Basic Operations
Do not connect to the wrong wire. 4. Basic operations Start up Long press the power button until the LM500 starts up. Shut Down Long press the power button, select the “power off” when the option shows on screen to shut down the UE. -
Page 7: Date And Time Configuration
inputting characters. Click “√” to confirm / exit the password inputting. GPS Location Go to the Settings > Location interface, single click to enable or disable GPS location. Date & Time Configuration Go to the Settings > Date&Time interface, single click to configure time display format. -
Page 8: System Information
System Information Go to the Settings > About interface, find the device and SIM card information including Operation System Version, IMEI Code, Battery Percent, SIM Name, SIM Level, SIM Type. System Update Go to Settings > System Update interface, single click to check updates. -
Page 9: Basic Installation
5. Basic Installation This section descrips how to install LM500 in the vehicle Overview Below is the overview of the LM500 with buttons and ports Figure 5-1 Figure 5-2... - Page 10 Procedure 1. Install the bracket to the vehicle. See Figure 5-3 2. Secure the LM500 to the U-shape bracket. See Figure 5-4 3. Connect the RSM to the LM500. See Figure 5-5 4. Connect the power cable. See Figure 5-6...
- Page 11 Precautions for Installing a Bracket A bracket must be installed to fix a vehicle-mounted terminal. When installing the bracket on the top of the center console or the inner side of the co-pilot's seat, pay attention to the following issues: –...
- Page 12 – The LM500 and the bracket are unshakable. – All cables on the LM500 are correctly connected and secured. – All cables are properly routed and fixed inside the vehicle, and exposed cables do not hinder operations in the vehicle.
- Page 13 LYNKSYS TECHNOLOGIES CO., LTD.
- Page 14 FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
