EAE KNX DALI Gateway
Product Manual DA110
Order Number: 48107

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DA110 and is the answer not in the manual?

Questions and answers

Summary of Contents for EAE DA110

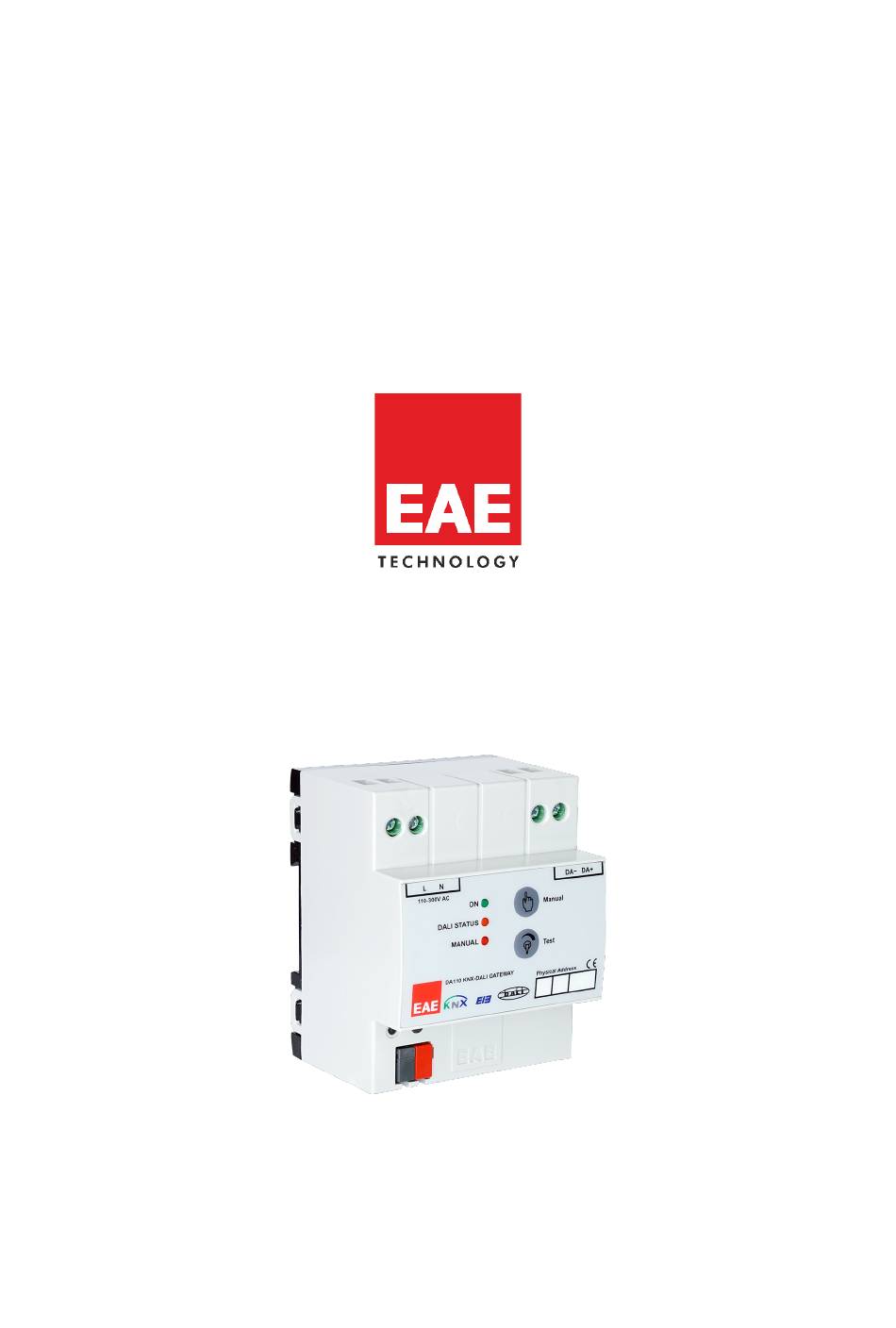

  • Page 1 EAE KNX DALI Gateway Product Manual DA110 Order Number: 48107...

  • Page 2: Table Of Contents

    Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 Contents 1. General ..............................2 1.1. Device Description ........................2 1.2. Technical Data ..........................3 1.3. Connection Example ........................4 1.4. Operation and Display ........................4 2. Communication Object Information ....................5 2.1.

  • Page 3: General

    KNX.  Bus voltage fail/return states can be selected on ETS parameters.  Addressing of DALI devices is made via EAE DALI Tool (PC Software). DALI Tool can be downloaded from website. www.eaetechnology.com. NOTE: Each channel is uniform. Device factory default physical address is “15.15.255”.

  • Page 4: Technical Data

    Product Manual DA110 EAE KNX DALI Gateway DA110 R3.0 1.2. Technical Data Type of protection IP 20 EN 60529 Safety class EN 61140 KNX supply Voltage 21 - 30V DC, SELV Current consumption < 10mA Mains supply Voltage 85 - 300V AC @ 50-60Hz Power consumption Max.

  • Page 5: Connection Example

    Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 1.3. Connection Example Connection Example of DA110 1.4. Operation and Display Power OK LED : KNX bus failure.  : KNX bus connected.  DALI Status LED : No problem. ...

  • Page 6: Communication Object Information

    Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 2. Communication Object Information 2.1. Communication Object Table Overview of all communication objects of the device application can be seen on the following table. Function Name Length Flags In operation General 1.002...

  • Page 7: Communication Object Descriptions

    1.010 1 bit This object is used to read and save all DALI devices to DA110 device which can be found by scan. Un- addressed devices will be addressed and conflicted addresses will be resolved. Please send “enable(1)” to this group object to start this function.
  • Page 8 Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 Function Name Length Flags Device status Feedback Non-DPT 3 bytes This communication object is used for getting all current faults and states of a DALI device in one comprehensive telegram. In order to make a read request, a write should be made to object with read/response bit is set.
  • Page 9 Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 Function Name Length Flags Coded status switch Feedback Non-DPT 2 byte This object is used to get switch status of a DALI group or an individual DALI ballast/driver. In order to make a read request, a write should be made to object with read/response bit is set.
  • Page 10 Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 Function Name Length Flags Coded status brightness value Feedback Non-DPT 2 byte This object is used to get brightness value of a DALI group or an individual DALI ballast/driver. In order to make a read request, a write should be made to object with read/response bit is set.
  • Page 11 Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 Function Name Length Flags Coded faults Feedback 237.600 2 byte This object is used to get fault data of a DALI group or an individual DALI device. In order to make a read request, a write should be made to object with read/response bit is set.
  • Page 12 Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 Function Name Length Flags DALI line fault Feedback 1.005 1 bit This object is used for reporting DALI gateway supply fault. Possible causes of the fault are no mains connection to gateway supply terminal, power supply malfunction or short circuiting DALI line more than 100ms.
  • Page 13 Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 Function Name Length Flags Mains power failure status Feedback 1.005 1 bit This object is used for reporting a misconnection of mains to the DALI line. - Object will be activated if “Enable “Fault mains connected” object” parameter in Feedback tab is selected as “enable”.
  • Page 14 Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 Function Name Length Flags 0=Scene 1, 1=Scene 2 Scene 1.022 1 bit This object is used for recalling scene 1 or scene 2. (value “0” = recall scene 1, value “1” = recall scene 2 16…22...
  • Page 15 Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 Function Name Length Flags Switch Switch/Status (after change) CWTU Dali Device 1…64 1.001 1 bit Switch/Status (after request) CRWU Switch/Status (after change or request) CRWTU This object is used to switch DALI device 1…64 ON or OFF.

  • Page 16: Parameters

    Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 3. Parameters “Parameters” chapter describes ETS parameters of the device. Please find detailed descriptions of objects in 2.2 Communication Object Descriptions. Default parameters are written in bold letters. 3.1. General *enable Enable manual Operation Parameter determines whether lightings can be controlled manually or not by push button on DALI Gateway.
  • Page 17 Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 *yes Allow switch on via brightness value *yes Allow switch off via brightness value *yes Allow switch on via relative dimming *yes Allow switch off via relative dimming “Switch on” and “Switch off” conditions can be defined for brightness value and relative dimming commands separately.

  • Page 18: Feedback

    Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 3.2. Feedback Enable “DALI line fault” object enable *disable Parameter enables “Fault gateway supply” object. This object is used for reporting DALI gateway supply fault. Possible causes of the fault are no mains connection to gateway supply terminal, power supply malfunction or short circuiting DALI line more than 100ms.
  • Page 19 Parameter enables “Main power failure status” object. This object is used for reporting a no mains connection applied to the mains line of DA110 device. Transmit mode description is the same for all parameters in Feedback tab. But selections can be made independently for each parameter.

  • Page 20: Fault Conditions

    Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 3.3. Fault Conditions Lamp values on power on 0 %(0)…100 %(255) *value before power off Parameter defines the brightness value of ballasts when power on. Lamp values on DALI voltage failure 0 %(0)…100 %(255)

  • Page 21: Dali Devices (1

    Product Manual DA110 EAE KNX DALI Gateway DA110 R2.0 3.4. DALI Devices (1…64) Dali devices must be enabled to control via switch, brightness or relative dim communication objects. Activate devices 1 – 16 Activate devices 17 – 32 Activate devices 33 – 48 Activate devices 49 –...

  • Page 22: Scenes

    3.5. Scenes DA110 KNX-DALI Gateway can store 16 different lighting scenes. All of 16 scenes can be recalled only via “Scene 8 bit” object. A maximum of 16 scenes can be recalled and store via “0=Scene x, 1=Scene y” 1 bit communication object as well.
