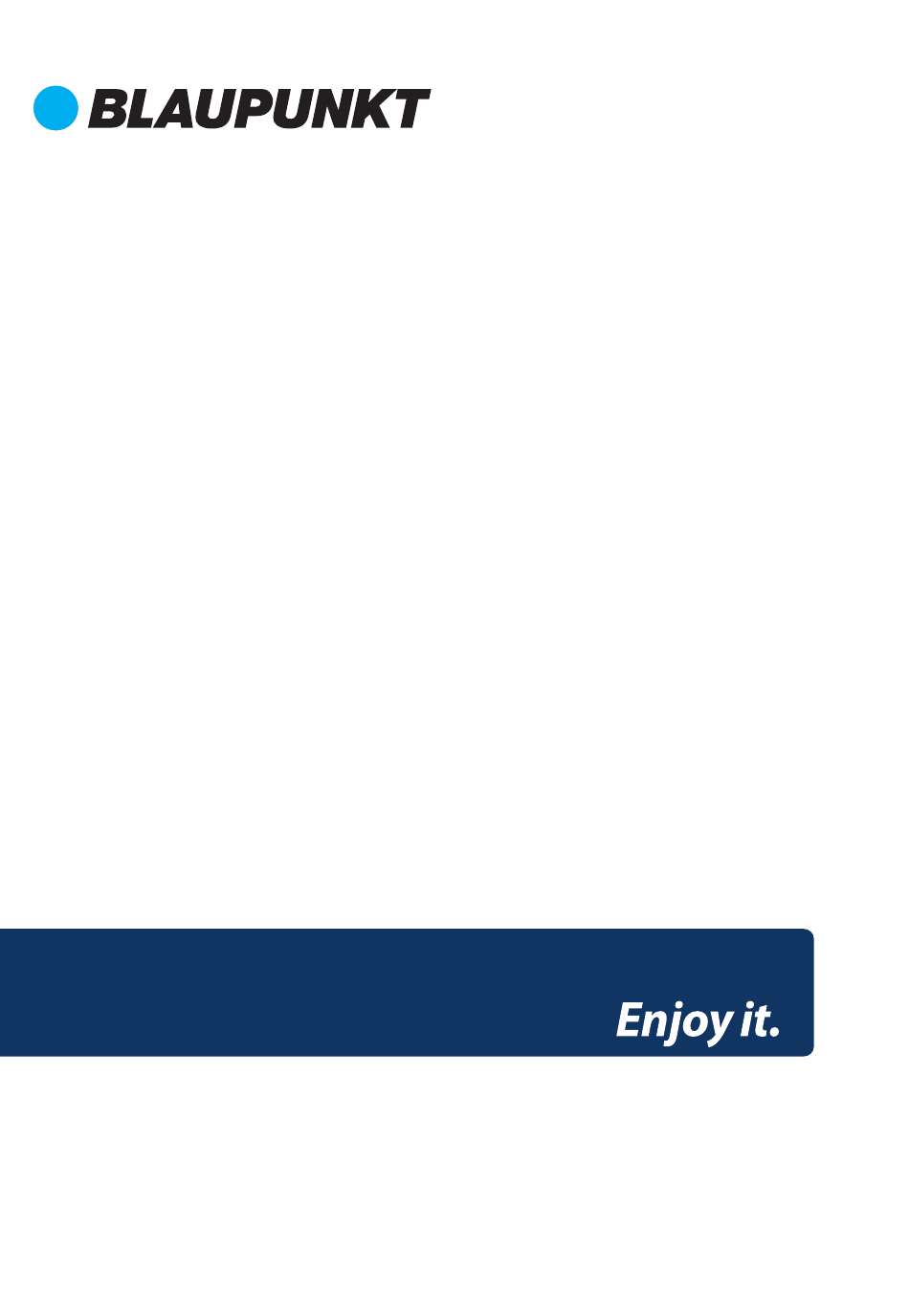

- Page 1 Instruction manual 5GB31150AU 5GB61151AU 5GB62191AU 5GB72290AU 5GB91250AU 5GB92290AU Gas hobs...
- Page 2 Preface Thank you for choosing our gas cooktop. To use this appliance correctly and prevent any potential risk, read these instructions before using the appliance. Keep these instructions in a place where you can find them easily. If you are unsure of any of the information contained in these instructions, please contact our customer care centre.
-
Page 3: Table Of Contents
contents Preface Safety Warning Safety Instructions Installation Child and People Safety During Use Cleaning and Service Environmental Information Instructions for use and maintenance Description of the appliance How to Use the appliance Safety and Energy saving advice Cleaning and Maintenance Technical instructions Using instructions Positioning... -
Page 4: Safety Instructions
Safety Instructions Please take the time to read this Instruction Manual before installing or using the appliance. If the appliance is sold or transferred to another person,ensure the booklet is passed on to the new user. accident caused by misuse in advance, and use the appliance more conveniently. Neglect of this mark may result in severe personal injury Danger/Warning or death. -
Page 5: Installation
Installation Warning This appliance shall be installed in Prior to installation,ensure that the accordance with regulations in force gas and electrical supply complies and only used in a well ventilated with the type stated on the rating space. plate. 220V-240V Where this appliance is installed in The gas pipe and electrical cable marine craft or in caravans, it should... -
Page 6: Child And People Safety
Child and People Safety Warning Do not allow children to play near or with the appliance. The appliance gets hot when it is in use. Children should be kept away until it has cooled. Caution from using the appliance safety without supervision or instruction by a responsible person to ensure that they can use the appliance safety. -
Page 7: During Use
During Use Warning Burner panel is not designed to operate from food. an external timer or separate remote control system. The use of a gas cooking appliance comes results in the production of heat and contact with water. Do not operate moisture in the room in which it is this appliance with wet hands. - Page 8 During Use materials in the storage drawer near this aerosols may be affected by heat and appliance. should not stored above or below the appliance. this appliance while it is in operaiton. ‘ ’ position when not in use. Caution This appliance is intended for domestic cooking only.It is not designed for commercial or industrial purposes.
-
Page 9: Cleaning And Service
Cleaning and Service Warning cleaning repaired agents. or serviced by an authorised Service Engineer and only genuine approved spare parts should be used. Caution and cooled. clean the appliance. Environmental Information with due regard to safety and the environment. unusable, by cutting off the cable. Correct Disposal of This Product (Waste Electrical &... -
Page 10: Description Of The Appliance
Description of the appliance Dimension Ignition Electric Burner Top Plate Model ΣQn (W*D*H) Connection supply Feature device Rapid(1), 15.1MJ/h Glass 5GB31150AU 520*300*90 Auxiliary(1) Stianless 5GB61151AU 590*510*90 Triple-Crown(1) Steel Semi-rapid(2), 30.4MJ/h 220-240Vac, Continuous Auxiliary(1) Ignition G1/2 thread 50Hz-60Hz, Glass 5GB62191AU 600*515*90... -
Page 11: How To Use The Appliance
How to Use the appliance Black circle: gas off Large flame: maximum setting Small flame: minimum setting The minimum setting is at the end of the anti-clockwise rotation of the control handle. All operation positions must be selected between the maximum and minimum position. The symbol on the control panel,next to the control handle will indicate which burner it operates. -
Page 12: Safety And Energy Saving Advice
Safety and Energy saving advice - The diameter of the bottom of the pan should correspond to that of the burner. PANS BURNERS max. min. Triple-Crown 200mm 240mm of the Rapid 200mm 240mm burner. Semi-Rapid 160mm 180mm Auxiliary 120mm 160mm Always use cookware that is Do not use small diameter cookware on large burners. -
Page 13: Cleaning And Maintenance
Cleaning and Maintenance completely cool. Metal Brush Nylon Brush Soft cloth Acidic/Alkali Edible Oil Detergent Neutral Detergent Abrasive Thinner/Benzene water. For stubbon soiling, soak beforehand. rung-out the risk of corrosion. normal because of the high temperatures. Each time the appliance is used these parts should be cleaned with a product that is suitable for stainless steel. - Page 14 Cleaning and Maintenance from the top plate. detergent or washing up liqui. cloth and wipe dry with a clean cloth. blocked. 1.Place the flame spreader ( 4 ) on to the burner cup ( 5 ) so that the ignition device and the flame supervision device extend through their respective holes in the flame spreader.The flame spreader must click into place correctly.
-
Page 15: Using Instructions
Using instructions Warnings be installed and connected in accordance with current appliance installation Grease cranes produced at the factory to meet the requirement of all life hob. -
Page 16: Positioning
Positioning CLEARANCES REQUIRED Modelo WHEN FITTING THE HOB WITH A COOKER HOOD ABOVE 5GB31150AU 5GB61151AU 5GB62191AU 5GB72290AU 700mm 5GB91250AU 400mm 5GB92290AU 400mm FO 0813 This appliance is to be built into a kitchen unit or 600mm worktop,providing the following mini um distances are allowed;... -
Page 17: Installing The Appliance
Installing the appliance 1. Remove the pan supports, the burner lid and flame spreader and carefully turn the appliance upside down and place it on a cushioned mat. Take care that the Ignition devices and flame supervision devices are not damaged in this operation. -
Page 18: Gas Connection
Gas Connection Turn off power for safety and appliance protection. Close middle valve to prevent gas leakage. Keep away from inflammable materials around appliance. Before work, put on gloves. CAUTION Cool off the appliance for a while right after using appliance for your safety because you can get burners by high temperature from the appliances. - Page 19 LpG ConVErSIon - rEGuLAtor Oncethesecheckshavebeencompleted,ifthe regulator still fails to perform in a satisfactory manner it should be replaced. 9. Onebyone,turntheknobstominimumandscrew this appliance is supplied set up for natural Gas in the bypass screw (accessible when the knob is usage. A conversion kit is included with the product for removed) until a small stable flame results.
- Page 20 Gas Connection Statutory requirements This installation must conform with the following: ■ Manufacturer’s Installation instructions ■ Local Gas Fitting Regulations ■ Municipal Building Codes ■ Refer to AS/NZS 5601.1 for Gas Installations ■ S.A.A. Wiring Code ■ Local Electrical Regulations ■...
- Page 21 Gas Connection ■ Flexible Hose: If installing with a hose assembly, it must comply with AS/NZS 1869,10mmID,class B or D,no more than m long and installed in accordance with AS/NZS 5601.1. ■ Ensure that the hose does not contact the hot surfaces of the hotplate,oven,dishwasher or any other appliance that may be installed underneath or next to the hotplate.The hose should not be subjected to abrasion, kinking or permanent deformation and should be able to be inspected along its...
-
Page 22: Gas Specifition
Heat input and orifice size marked(mm) Model No. pressure Wok burner Rapid burner Semi-rapid Auxiliary 10.8MJ/h 13.5MJ/h 6.3MJ/h 4.3MJ/h Universal LP Gas 0.90 0.58 2.75kPa 5GB31150AU Natural Gas 1.50 0.93 1.0kPa Universal LP Gas 1.00 0.68 0.58 5GB61151AU 2.75kPa 5GB62191AU Natural Gas 1.72 1.15 0.93... - Page 23 SWITCH 1 5GB31150AU SWITCH 2 IGNITION SWITCH 1 5GB61151AU 5GB62191AU SWITCH 2 SWITCH 3 SWITCH 4 IGNITION SWITCH 1 5GB72290AU 5GB91250AU 5GB92290AU SWITCH 2 SWITCH 3 SWITCH 4 SWITCH 5 IGNITION When the power cord is damaged it must be replaced by the manufacturer to produce,...
-
Page 24: Gas Adjustment
Gas adjustment Change the injector of the burners. Remove the pan support, Burner lid and Flame spreader. Unscrew the injector using a 7mm box spanner and replace it with the stipulated injector for new gas supply. Carefully reassemble the all components. After injectors are replaced, it is advisable to strongly tighten the injector in place. -
Page 25: Trouble Shooting
Trouble shooting Repairs should be performed by a licensed technician only.Improper repair may result in considerable danger to you and others. Probable cause Solution Problem No Spark. Check the electricity supply. Not ignited The burner lid is badly assembled. Assemble the lid correctly. Open the gas supply The gas supply is closed. - Page 28 Service 00 800 32 289 000 www.blaupunkt-einbaugeraete.com Deutschland/Germany Luxemburg/Luxembourg service.DE@blaupunkt-einbaugeraete.com service.LU@blaupunkt-einbaugeraete.com Österreich/Austria Schweiz/Switzerland service.AT@blaupunkt-einbaugeraete.com service.CH@blaupunkt-einbaugeraete.com Niederlande/Netherlands Italien/Italy service.NL@blaupunkt-einbaugeraete.com service.IT@blaupunkt-einbaugeraete.com Belgien/Belgium Spanien/Spain service.BE@blaupunkt-einbaugeraete.com service.ES@blaupunkt-einbaugeraete.com Schweden/Sweden Großbritannien/Great Britain service.SE@blaupunkt-einbaugeraete.com service.GB@blaupunkt-einbaugeraete.com Frankreich/France Malta/Malta service.FR@blaupunkt-einbaugeraete.com service.MT@blaupunkt-einbaugeraete.com 1800 252 878 658 1800 209 2096 Australien/Australia Indien/India CustomerCare@blaupunktAU.com...
