Not Used
USB 1
Not Used
RF_IN1

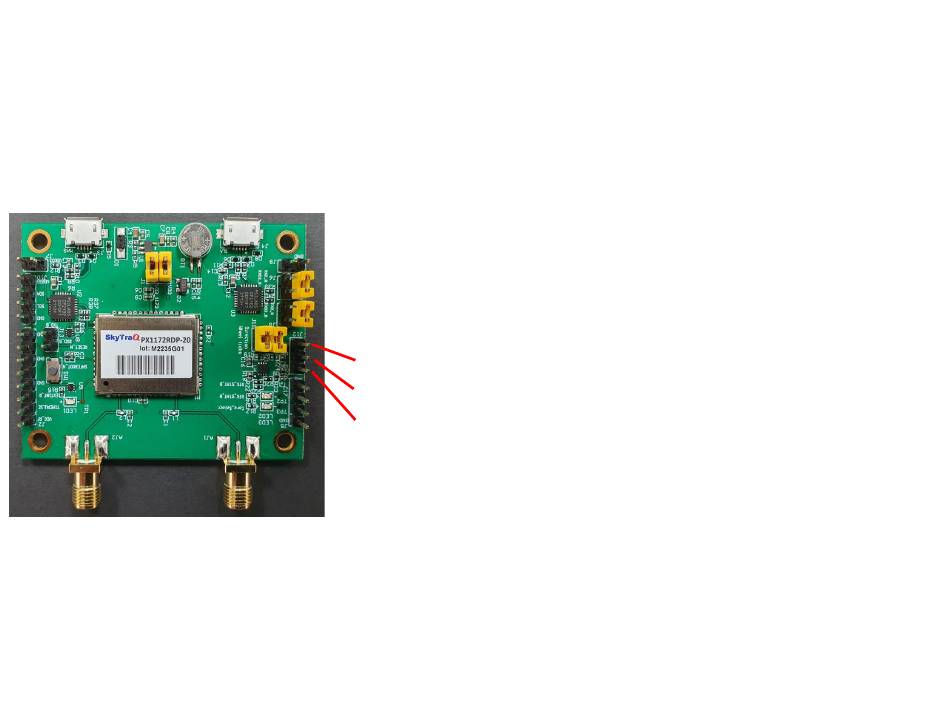

EVB Usage (1/3)
1. Connect RTK antennas to RF_IN1
2. Connect wheel-tick signal to SPD (optional*)
3. Connect direction signal to DIR (optional*)
4. Connect ground return for SPD/DIR
5. Run GNSS Viewer on Windows laptop
6. Connect USB cable to USB1 and Windows laptop
DIR
7. Connect GNSS Viewer to EVB at 115200 baud rate
SPD
GND
*: Connect vehicle wheel-tick signal for best dead-
reckoning performance.
