Summary of Contents for Creality UW-01

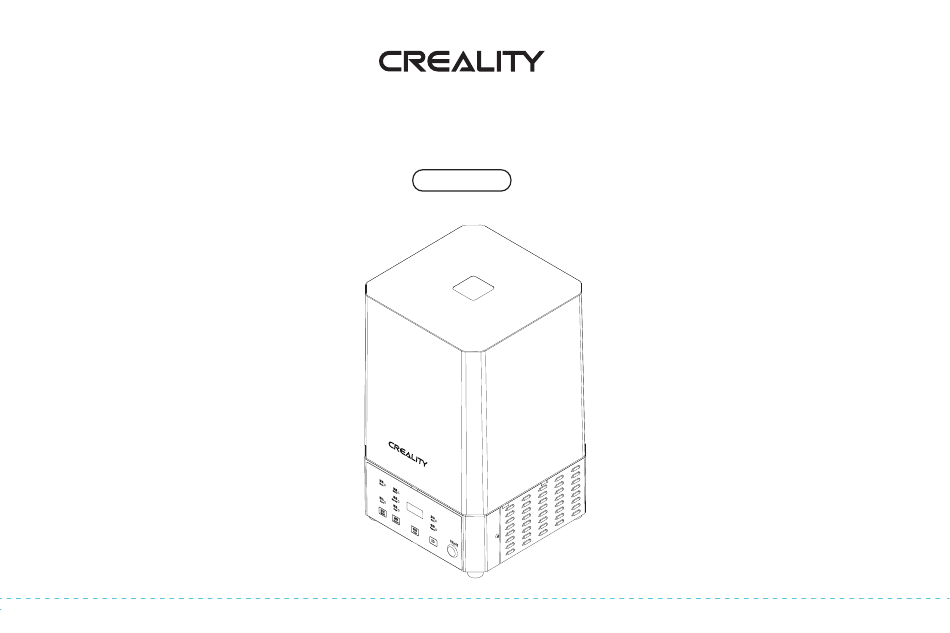

- Page 1 Washing and Curing Machine User Manual UW-01 V1.4...
-
Page 2: Lists Of Spare Parts
Content Dear Consumers, Notes Thank you for choosing to use the products of Creality 3D. For your convenience, please read the manual carefully before use, and strictly follow the instructions of the manual. The Creators 3D team is always ready to provide you with quality services. No matter what problems you encounter during use, please contact us according to the telephone and email provided at the end of the manual. - Page 3 NOTES 1. Do not try to use any other methods that not been described in the instruction to avoid personal injury or property damag 2. Do not place the machine near flammable and explosive materials or high heat sources. Please place the machine in a ventilated, cool and dust-less environment; 3.
-
Page 4: Equipment Introduction

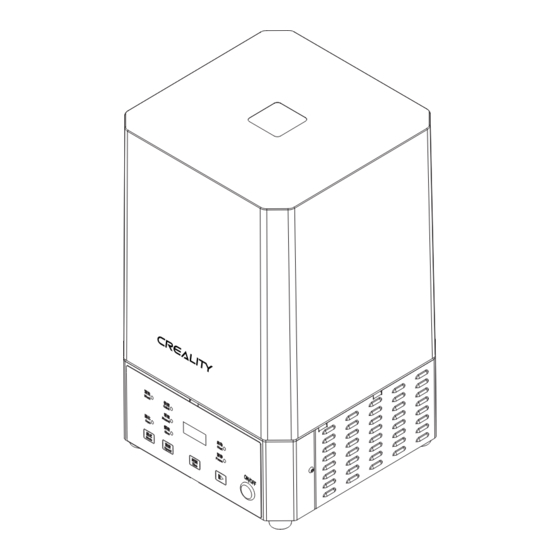

Equipment Introduction P P ower DC Interface Operation Panel rotective Cover Washing Container W W ashing Basket S S wi ... -
Page 5: Equipment Parameters
Equipment Parameters Basic Parameters 基本参数 Model Name | Control Method | Touchbutton,LEDindicator | Rated Voltage | DC 24V Rated Power | Mode | Washing and Curing | Time | 2min-90min | Speed | Quick/Normal/Slow | Washing Size | 170*120*160mm Curing Size | Φ165*200mm Machine Size | 225*225*360mm... - Page 6 Washing Container Installation Align the cleaning bucket with the groove of the bottom platform, put it firmly on the bottom platform, and place the cleaning basket assembly on the cleaning bucket, as shown below: Machine Main-Body ｜ Cleaning basket assembly｜ Washing Container｜...
- Page 7 Loading Pour the cleaning liquid into the washing container, the tank capacity is: 500ml/1000ml/1500ml/2000ml/2500ml/3000ml/3500ml/4000ml. MAX: Maximum Scale I Warning: The cleaning fluid cannot exceed the maximum scale of the Tips：The cleaning liquid can be alcohol, detergent solution and other liquids. washing container!
- Page 8 Daily Care Recycling of washing liquid: The following treatment method of washing liquid takes “alcohol" as an example. The filtered alcohol still has some resin dissolved in it, but it can still be used to clean the model. 1. After washing about 30 2.
-
Page 9: Troubleshooting Guide
Troubleshooting Guide 故障排除指南 1. The washing machine does not run ①The power connection is poor, unplug the power cord, and then plug it in again. ②The UV protection cover is not covered. Put the UV protection cover on and try again. 2. - Page 10 18F, JinXiuHongDu Building, Meilong Blvd., Longhua Dist., Shenzhen, China 518131 Official Website: www.creality.com Tel: +86 755-8523 4565 E-mail: info@creality.com cs@creality.com...
