Summary of Contents for Maidesite AX05
- Page 1 User Manual Please read all the contents of the manual carefully before use. AX05 - Floor Lift...
-
Page 2: Table Of Contents
CONTENTS Table of Contents I.Product Description �� II.Safety & Warning �� III.Assembly Instruction �� IV.Use Instruction �� V.Maintenance and Care �� VI.Storing and Moving the Device �� VII.After-Sale Service �� Ⅷ.Appendix ��... -
Page 3: I.product Description

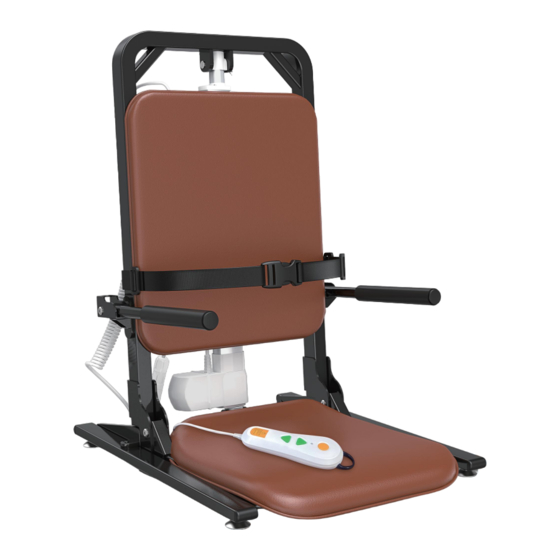

Your Family Rehabilitation Partner I.Product description The MAIDeSITe Electric Lift Chair - AX�� is tailored for the elderly, disabled, and fall-risk individuals, offering safety and convenience. This chair is especially beneficial for those with reduced lower limb mobility, fall risks, or difficulties in sitting or standing unaided. -
Page 4: Ii.safety & Warning
II.Safety & Warning Mandatory Operations Please read this manual thoroughly prior to the first use of the MAIDeSITe Electric Lift Chair - AX��. Familiarizing yourself with the product ensures safe and efficient operation. Keep this manual accessible for reference by anyone who might interact with or operate the lift chair. - Page 5 Operate the lift chair exclusively with the provided hand controller. Follow the Assembly Instructions meticulously when installing the MAIDeSITe Electric Lift Chair - AX��. Handle the Lift Chair - AX��, its charger, and hand controller with care to avoid drops. If you observe any visible or audible signs of damage, refrain from using the lift chair and contact us immediately.
- Page 6 Do not stand in front of the chair before the brackets are securely installed. Do not stand in front of the upright seat if the seat is not secure. Keep children and animals away from the Lift Chair. During use and maintenance, do not insert hands into moving parts or under the seat.
-
Page 7: Iii.assembly Instruction
Your Family Rehabilitation Partner The charger is equipped with a protection mechanism and will automati- cally stop charging when full For replacements or faults, you can purchase them on Amazon. If within the warranty period, or if there is any hardship, please contact us for a replacement (follow the instructions provided in the "After-Sales Service"... - Page 8 Two Connectors Two Brackets � Screws Hex Wrenches Charger Hand Controller ��...
- Page 9 When installing brackets, make sure to position yourself behind the lift chair. Retain the shipping box for potential future use. Assembly Instruction Please follow the steps below to assemble the MAIDeSITe Electric Lift Chair - AX��. STEP1 STEP2 Extract the main frame as shown.(Hold the Flip the chair sideways to the ground.
- Page 10 Your Family Rehabilitation Partner STEP5 STEP6 Install the left connector. Ensure the connector is facing upward. STEP7 STEP8 Align screws with all holes first, then secure. Repeat the same process for the right con- nector. STEP9 STEP10 Install brackets behind raised chair. Prohibit installing with people in front of the chair.
- Page 11 STEP11 STEP12 Install the right bracket. Fit right bracket into buckle and align holes. STEP13 STEP14 Press the right bracket against the main Repeat the same process for the left frame. brackets. STEP14 Complete. ��...
-
Page 12: Iv.use Instruction
Your Family Rehabilitation Partner IV.Use Instruction Pre-Use Instructions Before use, ensure the Lift Chair - AX�� is placed on a flat, hard surface in a dry area. Inspect the bottom of the lift chair for debris and remove any if found. Ensure the hand controller is properly connected before use. - Page 13 Emergency Stop If the Lift Chair fails to stop normally, press the emergency stop button to halt it immediately. Pressing the emergency stop during descent will lock the lowering func- tion. To resume normal operation, raise the seat to its highest position before attempting to lower again.
- Page 14 Your Family Rehabilitation Partner Using the AX�� in Suitable Environments SCENE1 SCENE2 1.Before use, flip up the armrests on both 2.The user should sit on the chair. If unable sides of the lift chair. to do so unassisted, seek help. SCENE3 SCENE4 3.Lean back against the chair, fasten the...
- Page 15 SCENE5 SCENE6 5.To lower the lift chair, press the down 6.When moving up or down, hold onto the button; to raise it, press the up button. armrests or place hands on knees. SCENE7 7.To stop at the desired height, release the up or down button, and the lift chair will stop moving ��...
-
Page 16: V.maintenance And Care
Your Family Rehabilitation Partner V.Maintenance and Care Maintenance of the Lift Chair - AX�� The Lift Chair - AX�� must undergo a regular maintenance check at least every �� months. This check includes a visual inspection of all parts, espe- cially load-bearing and assembly components, and all necessary function- al tests. -
Page 17: Vi.storing And Moving The Device
Your Family Rehabilitation Partner Connect the hand controller to its dedicated charger. Plug the charger into an outlet. The charger's indicator will show red while charging and turn green when fully charged. The hand controller's indica- tor will also light up, indicating the battery level (green: >��%, blue: ��%-��%, red: <��%). - Page 18 Moving the Device Grab the horizontal bar at the top of the folded chair. Tilt the folded chair. Move the chair using the small caster wheels. Note: The small wheels are for moving the chair only! ��...
-
Page 19: Vii.after-Sale Service
Reach out through Amazon's "Ask a Question" feature or by emailing us at [amzmaidesite@���.com] or [us- maidesite@gmail.com]. An exclusive offer: Contact us via email to receive an electronic warranty card, which extends your warranty by an additional six months. - Page 20 Your Family Rehabilitation Partner lf you have any questions,please contact us: amzmaidesite@163.com usmaidesite@gmail.com 800-620-6618...
