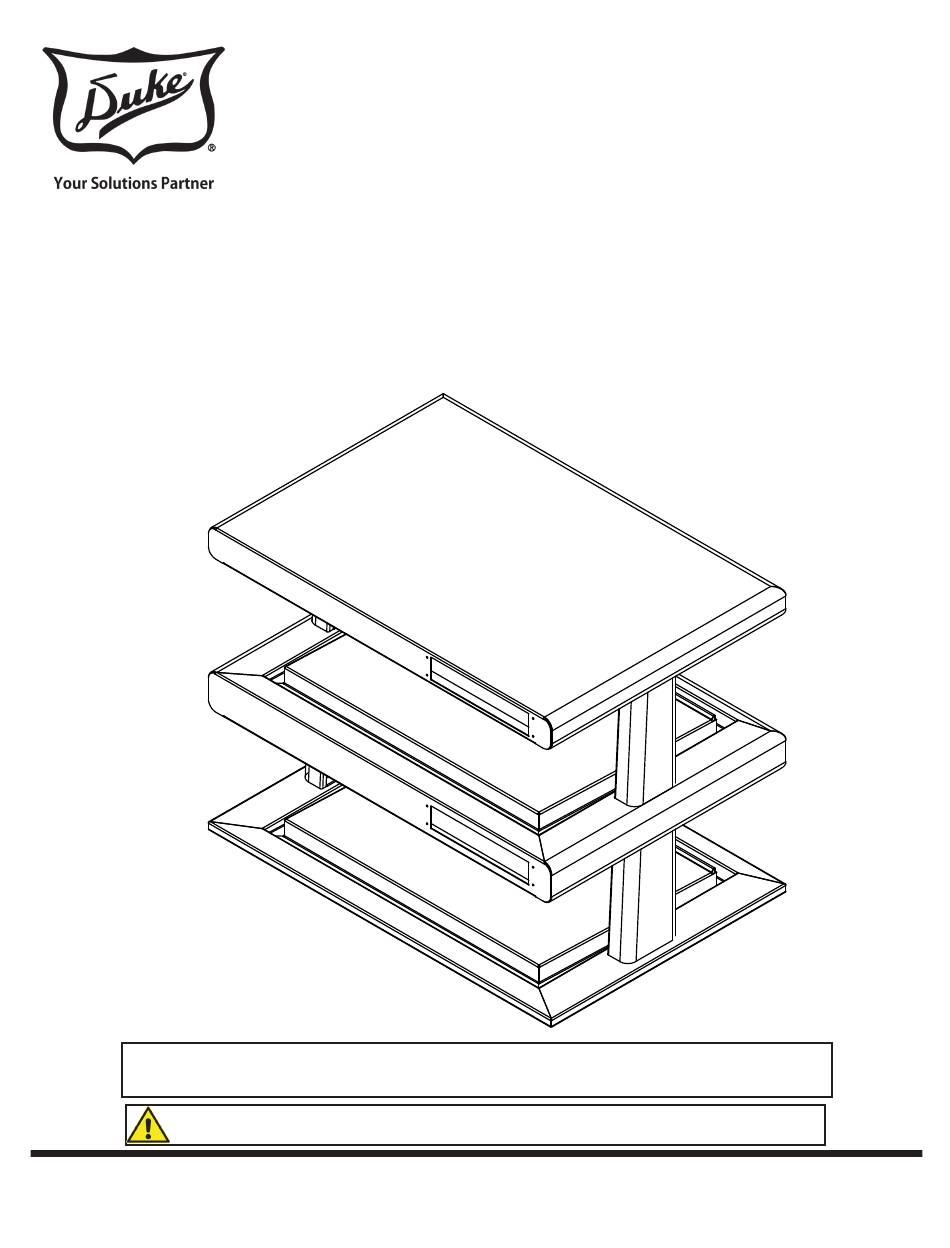

Hot Frost Light Kit
114194 - 35" Unit
114197 - 48" and 50" Unit
114201 - 64" Unit
114204 - 91" Unit
CAUTION:
WARNING for CA residents: go to www.dukemfg.com/prop65 for prop 65 warning
Please read these instructions completely before attempting
to install, operate or service this equipment.
This manual is Copyright © 2021 Duke Manufacturing Co. All rights reserved.
Reproduction without written permission is prohibited. Duke is a registered
trademark of the Duke Manufacturing Co.
Instruction Sheet
REV A 03/03/2021
P/N 529827
Advertisement
Table of Contents
Related Manuals for Duke 114194
Summary of Contents for Duke 114194
- Page 1 WARNING for CA residents: go to www.dukemfg.com/prop65 for prop 65 warning This manual is Copyright © 2021 Duke Manufacturing Co. All rights reserved. Reproduction without written permission is prohibited. Duke is a registered trademark of the Duke Manufacturing Co.
- Page 2 Installation and Operation of: Hot Frost Light Kits PARTS INCLUDED Part 114332 114333 114334 114335 Item Description Number 35” Unit 48” - 50” Units 64” Unit 91” Unit 114074 75W LED Power Supply 114179 LED Light 8” CW 2.4W 114058 LED Switch 114180 LED Power Cord...
- Page 3 Installation and Operation of: Hot Frost Light Kits Tools Needed Cordless Drill Straight Blade Screw Driver Philips Screw Driver INSTRUCTIONS Open box and verify you have all the parts for your size unit. DISCONNECT ALL POWER TO UNIT. Failure to complete could cause bodily injury. Remove light covers and remove existing lights from retainer clips.
- Page 4 Installation and Operation of: Hot Frost Light Kits INSTRUCTIONS Remove old light harness. Install new power cords. Using the screws provided install mounting plate using the hole location drill out in step 4, Install magnetic brackets onto the new plate installed in step 7 Install new LED lights.
- Page 5 Installation and Operation of: Hot Frost Light Kits WIRE DIAGRAMS Condenser Condenser Inte rlock Inte rlock Relay Relay COIL COIL COIL Inte rlock Inte rlock Relay Relay COIL COIL COIL...
- Page 6 Installation and Operation of: Hot Frost Light Kits WIRE DIAGRAMS Condenser Condenser COIL COIL COIL COIL N.C. N.C. N.C. N.C. N.0. N.0. N.0. N.0. Condenser Condenser Inte rlock Inte rlock Relay Relay COIL COIL COIL Inte rlock Inte rlock Relay Relay COIL COIL...
- Page 7 Installation and Operation of: Hot Frost Light Kits WIRE DIAGRAMS Condenser Condenser Inte rlock Inte rlock Relay Relay COIL COIL COIL Inte rlock Inte rlock Relay Relay COIL COIL COIL...
- Page 8 Installation and Operation of: Hot Frost Light Kits Phone: 314-231-1130 Duke Manufacturing Co. Toll Free: 1-800-735-3853 2305 N. Broadway www.dukemfg.com Fax: 314-231-5074 St. Louis, MO 63102...
