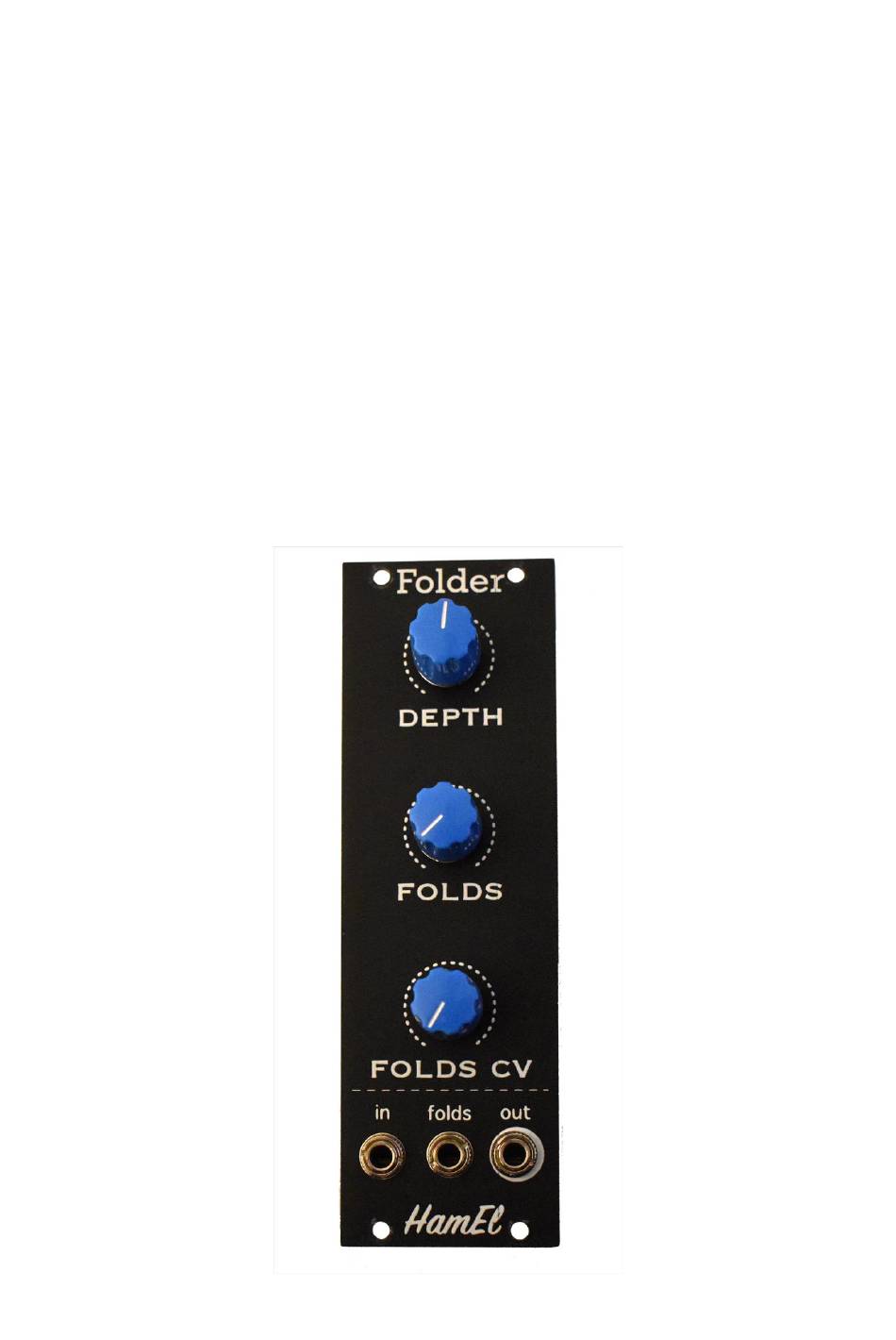

Page 1 Hampshire Electronics Wave Folder in Eurorack Format Instructions and Details...
Page 2 Overview ..................................3 Installation ..................................4 Power Availability..............................4 Connecting the Power ............................4 Fitment ..................................4 Using the Wave Folder Module ..........................5 Input ..................................5 Output ..................................5 Depth ..................................5 Folds ..................................6 Folds CV ................................... 7 Trimming the Wave Folder Module ........................

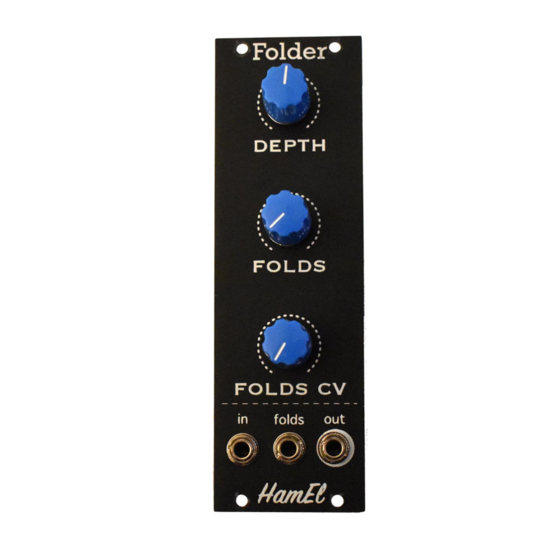

Page 3 The Hampshire Electronics Wave Folder Module is a 100% analogue wave folder in the popular Eurorack format. The wave folder limits the peaks of the input signal but rather than just clipping it actually inverts the signal and folds it back on itself. This leads to some amazing and interesting timbres, often generated with no more than a sine input wave.
Page 4 Installation Power Availability The Wave Folder module draws the following current from your power supply: 13ma @ +12v 13ma @ -12v You should first ensure that your power system has enough power capacity to drive the module before considering installation. If you are in doubt, please consult with your power supply manufacturer.
Page 5 The wave folder is definitely a module to be experimented with! Input The in jack socket should be used as the input into the wave folder. Any AC signal can be used in the range -5v to +5v.
Page 6 When the DEPTH knob is moved clockwise then the folded peaks increase in size, changing the timbre of the sound: Folds The FOLDS knob changes the number of folds. When the knob is moved counter-clockwise then there is only one fold. When the FOLDS knob is moved clockwise then the number of folds increases:...
Page 7 Input Trim The Wave Folder module has two trim pots. The first trim, simply labelled trim, is in the input trim. A -5v to +5v sine wave should be inserted into the in jack and the trim pot should be adjusted until the sine wave passes through cleanly.
Page 8 Shape Trim The second trim is for setting the shape of the fold. With the DEPTH and FOLDS knobs set so that there is noticeable folding, the shape trim can be adjusted to ensure symmetry of the wave fold.
