Summary of Contents for Takerers LB12

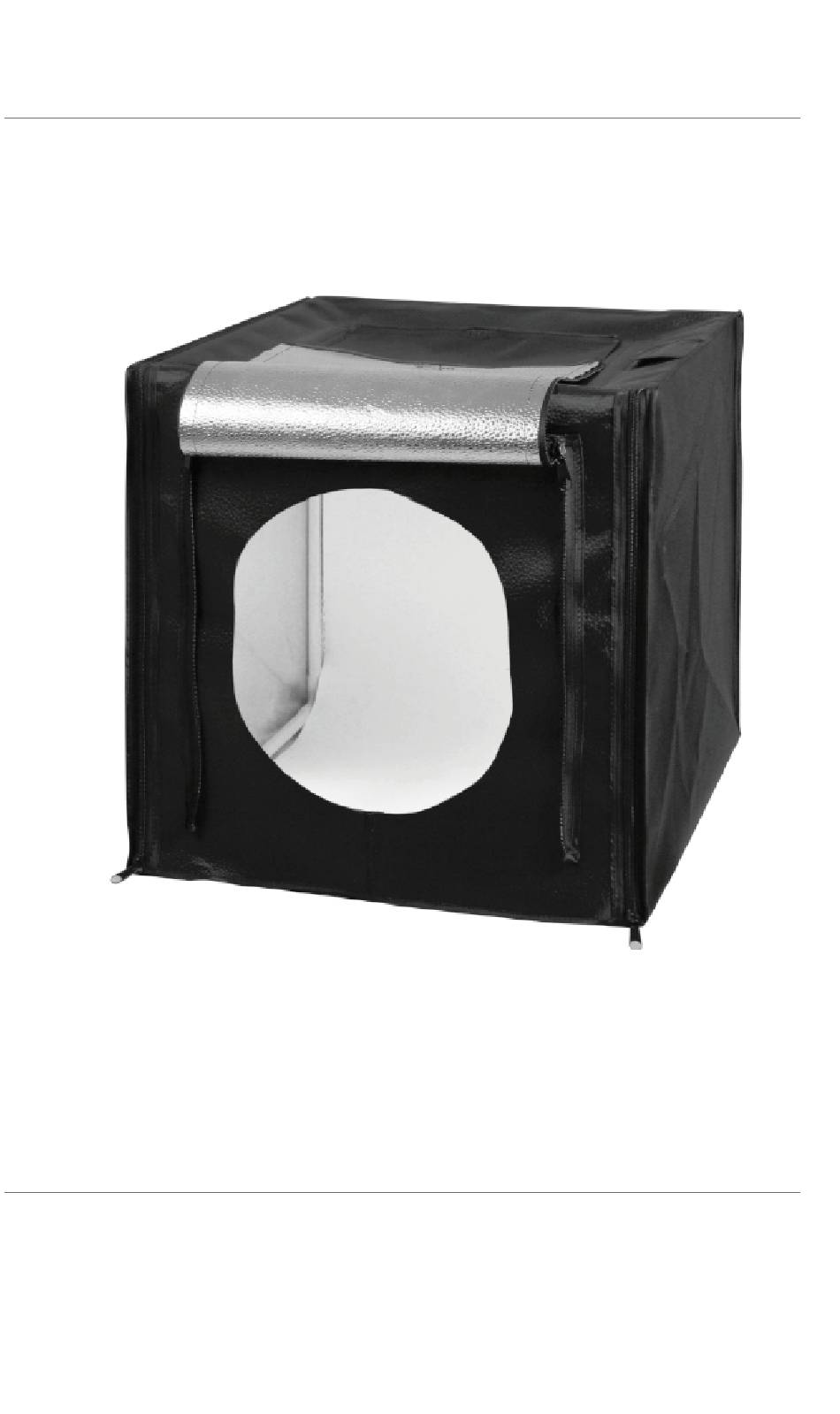

- Page 1 32x32 Inch Studio Box e r s T a k e r User Manual Thank you for purchasing from Takerers. For the best performance and safety purposes, please read this manual carefully before using the product. Please keep this manual for further reference.
-
Page 2: Package Contents
C. 10 × Corner Joints H. 1 × Soft Background D. 3 × LED Light Panels I. 1 × User Manual E. 1 × Power Adapter Specifications Model LB12 Input Voltage AC 110-240V 50/60Hz Output Voltage 2300mA Beams Quantity 210pcs... - Page 3 Studio Box Assembly A. Frame Assembly: Note: Frame tubes(F) must be installed in the innermost part of the corner joint(C). If the installation is not in place, the tent will not fit into the bracket when assem- bling. Assemble the studio box with 12pcs frame tubes(F) and 8pcs corner joints(C) as shown in Figure 1.
- Page 4 B. Studio Tent Assembly: Take the tent out of the bag, Distinguish the direction of the spread it out, then you can see bracket and place it in the middle of the tent cloth(figure 3). Notice and distinguish the front and back, left and right, as well as the that the bracket must be stuck in upper and lower parts of the...
- Page 5 C. LED Light Panel Assembly: Snap the three clamps of the LED light panel(D) to the proper position of the tubes(F), and then you can adjust its illumination angle randomly. The power cord of the LED light panel will be passed through the small hole on the right side of the tent.
- Page 6 Once the wires are routed through the tent's opening, it is time to connect with the power supply. Connect both LED light panels(D) to the power adapter(E). Ensure that the connectors are fully seated to ensure proper operation. You can now plug the power pack into the power outlet. The lights are controlled by the ON/OFF switch on the power cord.
- Page 7 D. Install the Backdrop: The bag contains 3 colors of Fit the backdrop under the frame backdrops(G). Select the appro- tube to hold it in place. priate backdrop, peel off the Velcro protective film. E. Using Your Studio Box Your studio box comes with a soft background that can be clipped to the frame tube and offer you soft background options;...
-
Page 8: Product Features
F. The studio box is now completely assembled and ready to start taking pictures! Product features 1. Professional photo shot booth has multiple open- ings so that you can choose any photo shooting po- sition to get a more perfect texture and beauty of your products. -
Page 9: Warranty
Tips2: Unfold the backdrop sheet, you need to use the curved side of the background to insert each end under the top and bottom flaps. If you install incorrectly, the background sheet will drop. Warranty All Takerers products come with a full 1-year limited warranty from purchase (Accessories excluded).
