Summary of Contents for Frosty HZB-18F/SB

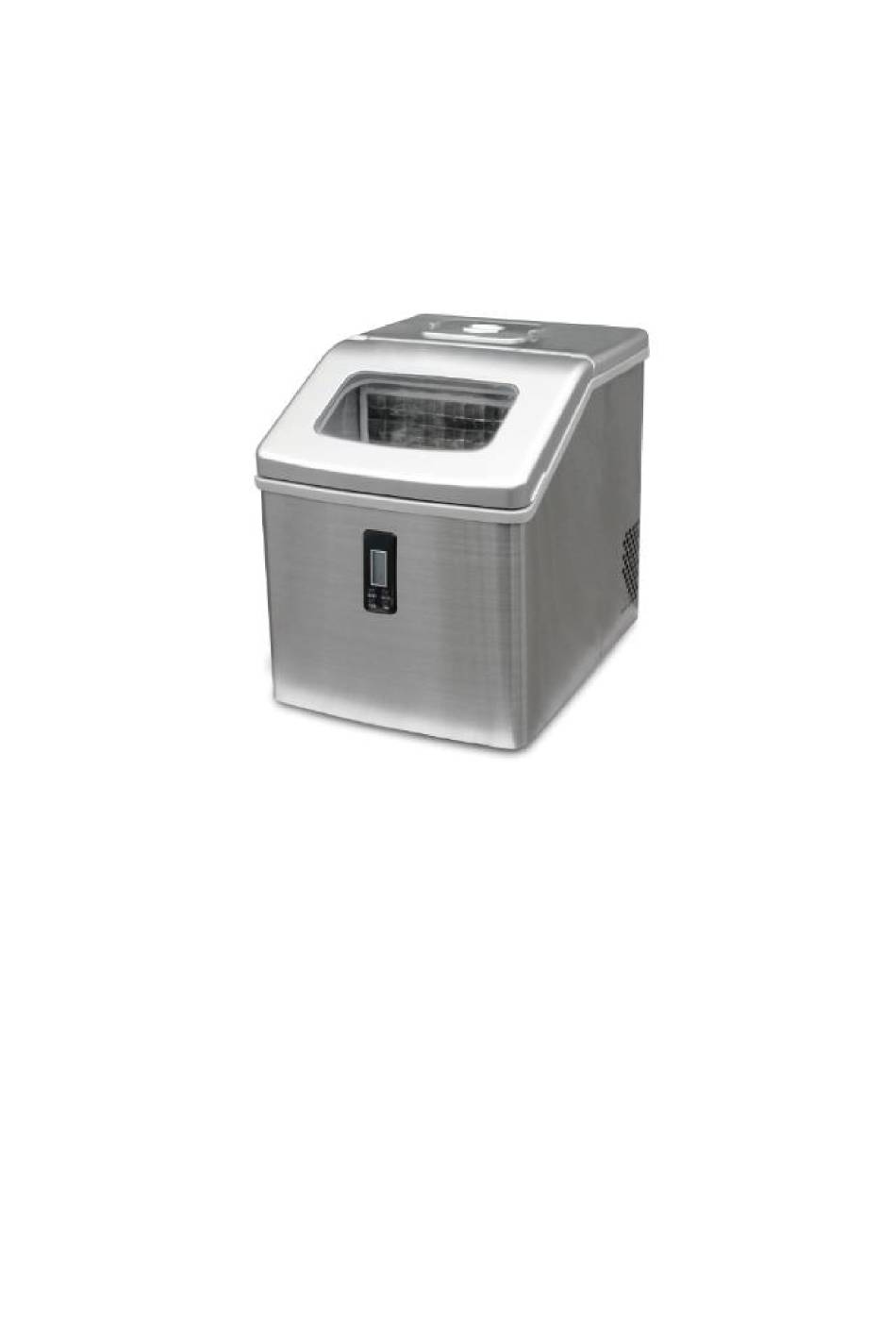

- Page 1 PORTABLE AUTOMATIC ICE MAKER Model No.: HZB-18F/SB INSTRUCTION MANUAL It is important that you read these instructions before using your portable ice maker and we strongly recommend that you keep them in a safe place for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS……………………………………………….…2 PREPARING YOUR ICE MAKER FOR USE ……………………………………………………………………..3 IMPORTANT SAFETY TIPS GETTING TO KNOW YOUR UNIT ………………………………………………………. ……………………………………………………… OPERATING PROCEDURES & MAINTENANCE ………………… ………………………………………… ..………………… ………………………………………… ..UNPACKING UNPACKING YOUR YOUR MAKER MAKER ……………… ………... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS PREPARING YOUR ICE MAKER FOR USE Your safety and the safety of others are important to us. We have provided many important safety messages manual and your appliance. Always read and obey all safety massages. This is the safety alert symbol: All safety messages will follow the safety alert symbol and the word “DANGER”... -
Page 4: Important Safety Tips
Do not use your ice-maker outdoors. Place the ice-maker away from direct sunlight and make sure that there is at least 4 inches of space between the back of your unit and wall. Keep a minimum distance of 4 inches on each side of your unit free. Do not use other liquid to make the ice-cube other than water. -
Page 5: Getting To Know Your Unit
GETTING TO KNOW YOUR UNIT General instrucion 1. Water tube connector 2. Cover 3. Water Pipe 4. Evaporator 5. Ice Basket 6. Control Panel 7. Ice Scoop 8. Viewing Window 9. Air Outlet: Please make sure there’s no object at least 20cm around the air outlet. 10. -
Page 6: Operating Procedures & Maintenance
OPERATING PROCEDURES & MAINTENANCE Postion of control panel & function A. LCD Display Area 1) Ambient Temperature 2) Time Indicator 3) Failure Indicator: Flash: Intake air temperature sensor malfunction Stay ON: Ice making malfunction 4) Ice making display area: Flash: the machine is dumping ice Zoom: the machine is making ice 5) Time and Timer Display Area: It refers to ice making time if there’s only number in it. -
Page 7: Unpacking Your Ice Maker
1. Remove the exterior and interior packaging. Check that ice basket and ice scoop is included. If any parts are missing, please contact our customer service. 2. Clean the interior with lukewarm water and a soft cloth. Take out the ice basket and clean it 3. - Page 8 To maintain maximum efficiency and to prevent bacterial growth, we suggest you clean your unit regularly, especially the water pipe and water filters. 1. If there is no water flowing down but you can still hear the compressor and water pump are working, the water pipe is probably blocked.
-
Page 9: Using Your Ice Maker
USING YOUR ICE MAKER 1. Connect with water tube PIC.1 PIC.2 CONNECTOR STEP 3:Insert the STEP 1:Peel off the tape STEP 2:Insert the long clear silicon tube, short white tube put the other end to the water bottle Put back the clip Take off the C clip First insert the short white tube at least 15mm... - Page 10 time you press "—", the duration decreases 1 minute, and the ice will be thinner. The maximum time can be reduced is 6 minutes. After the machine is powered on again, it returns to the default setting "0". Please note the time you set takes effect from the next ice making cycle.
- Page 11 silicone plug and drain nut after draining out the water. Good hygiene is important for staying healthy. Please change water every 24 hours and clean the water tank and inner tank every 3 days. WARNINGS A. Make sure the water tank, water filter and the water separator pipe are cleaned regularly. Blockage may lead to poor performance of the unit.
-
Page 12: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Turn machine, "E" Ambient temperature display The ambient temperature sensor disappears and the ambient “E” on standby mode damaged temperature will longer display. Too much ice cube in the basket Remove ice from the basket Ice Full Indicator Light is on Turn off the unit, change a new Insufficient water in tank... -
Page 13: Technical Parameters & Circuit Diagram
TECHNICAL PARAMETERS & CIRCUIT DIAGRAM TECHNICAL PARAMETERS Model HZB- 18F/SL Model HZB- 18F/SL Protection Protection Type Type Power Power Making Current Making Current Harvest Current Harvest Current Refrigerant 1.13 Refrigerant 1.13 Design Pressure Design Pressure High Side 0Psig High Side 0Psig Side 88Psig...
