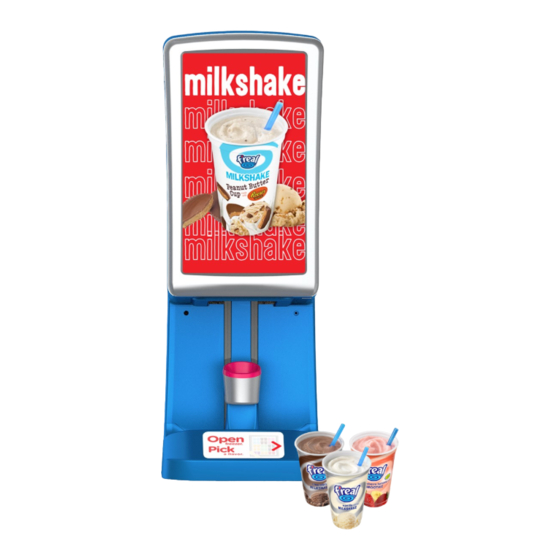

F'real FRLB6 Service Manual
  1. Manuals
  2. Brands
  3. F'real Manuals
  4. Kitchen Appliances
  5. FRLB6
  6. Service manual

F'real FRLB6 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Model: FRLB6
Rev. D
Service Manual
1

Advertisement

Table of Contents
loading

Summary of Contents for F'real FRLB6

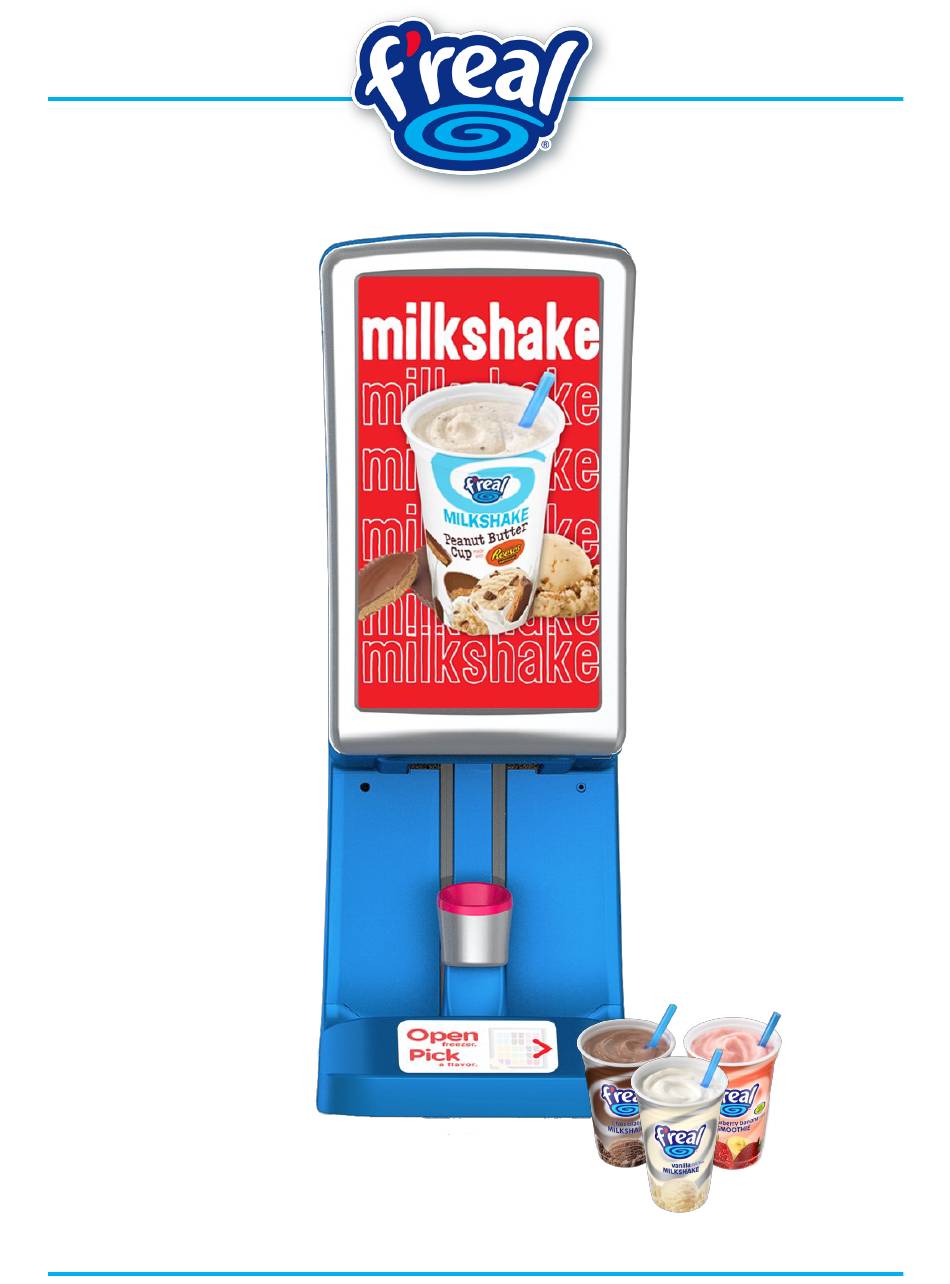

  • Page 1 Model: FRLB6 Rev. D Service Manual...

  • Page 3: Table Of Contents

    Table of Contents General Information Blender Maintenance ..............Main Menu .
  • Page 4 Daily Blender Maintenance Open the front door and perform a visual inspection to Wipe down the blender daily with a soft cloth and solution verify the surfaces are clean. or glass cleaner. Panels Screens Don’t spray solution directly onto the screens Wipe down the Cup Holder and underneath the Cup Holder Press upwards on the Flip-Up Door to clean off any product in the Drip Pan area with a damp cloth.

  • Page 5: Main Menu

    Main Menu Access the Main Menu Locate the lower screen and follow the instructions below to access the Main Menu: Step 1 Step 2 Press and hold the top left corner for 10 seconds until a keypad appears Input “461” on keypad Press “Enter”...

  • Page 6: Blender Error Codes

    Blender Error Codes Error 64: Mix Motor Peak Current Limit Exceeded TRIGGER: Mix Motor current exceeds 9.5 amps 1. Check the display freezer temperature. f’real products should be between 0-6°F. A. Perform the Squeeze Test by squeezing a chocolate milkshake in the middle of the cup. You should be able to squeeze a dime-size dent in the cup.

  • Page 7: Error 69

    C. If the encoder connections are correct/secure, Access the Main Menu and press the “Clear Errors” button. a. Blend a shake. If the error returns, replace the Position Motor (Parts Manual: Linear Motion System). Error 69: Flip-Up Door Misalignment During Blend on Travel Up TRIGGER: Flip-Up Door closed during blending while carriage position is sensed as holding it open on travel up 1.

  • Page 8: Error 74

    Error 74: Time-Out Occurred During Homing TRIGGER: Any homing time-out parameter exceeding 120 seconds 1. Ensure the blender has the latest Firmware Version. 2. Inspect all moving components of the Linear Motion System, checking for obstructions in the path of the Cup Holder. 3.

  • Page 9: Error 76

    Error 76: Sanitize Steamer Recharge Limit Exceeded TRIGGER: Steamer recharge timed-out after 60 seconds 1. Ensure water supply is on and regulated to 25 - 65 PSI. 2. Access the Main Menu and press the “Clear Errors” button. (continued on next page) 3.

  • Page 10: Error 85

    4. Run an Empty Cup Cycle to determine if the amount of water being dispensed matches what the blender counts: A. Locate an empty f’real cup or remove a shake from the freezer and wash/rinse out the shake. B. Access the Main Menu and select the “Service” tab. C.

  • Page 11: Error 8B

    B. Ensure the White Jumper cables between the HVCB and LVCB are secure. C. Measure the resistance through the Mix Motor wiring back to the motor. It should read 4-6 ohms. a. If in range, proceed to Step 2.D. b. If out of range, replace the Mix Motor (Parts Manual: Mixer System). D.

  • Page 12: Error 96

    Error 96: Extended Water Shot too Short in Duration TRIGGER: The target volume of 5,000mL was reached faster than 10 seconds 1. Ensure water supply is on and regulated to 25 - 65 PSI. 2. Access the Main Menu and press the “Clear Errors” button. 3.

  • Page 13: Error 9E

    5. Remove the panels behind and above the Cup Holder to expose the Pinch Board. Inspect for dust or water damage. 6. Remove the right side panel and measure DC voltages for the Position Motor on the LVCB at TB23. A.
  • Page 14 Consumer Errors “Please remove the cup lid completely” TRIGGER: The LVCB detects a spike in the Position Motor current around the time the blending disc would contact the foil lid 1. Ensure the customer is completely removing the foil lid before blending. Open the front door and check the blending chamber for debris.
  • Page 15 3. Access the Main Menu. Press the “LVCB Status Window” button and locate Line R: “CupInP” A. If Line R reads: “CupInP: 1” - replace the Pinch Guard Assembly (Parts Manual: Electrical System). B. If Line R reads: “CupInP: 0” - troubleshooting is complete. “The product is not cold enough to be blended”...
  • Page 16 Front Door Seal (Parts Manual: Water System). Mixer System Issues: Unusual Noises during Blending TRIGGER: Blender makes a grinding noise while mixing a f'real product 1. Open the front door and ensure the Blending Components are assembled/functioning correctly and are tight.
