QMB-5000N Audio Motherboard Card Cage
•
4 screws for the deadfront and 4 hex nuts for mounting into BBX-FXMNS/ MMX-BBX-FXMNS
The QMB-5000N Audio Motherboard Card Cage can be installed in one enclosure, the FleX-Net™/ MMX™ Mass
Notification System (BBX-FXMNS/ MMX-BBX-FXMNS) Enclosure.
See manual LT-894/ LT-894SEC for installation and wiring information.
4 Screws
Figure 1

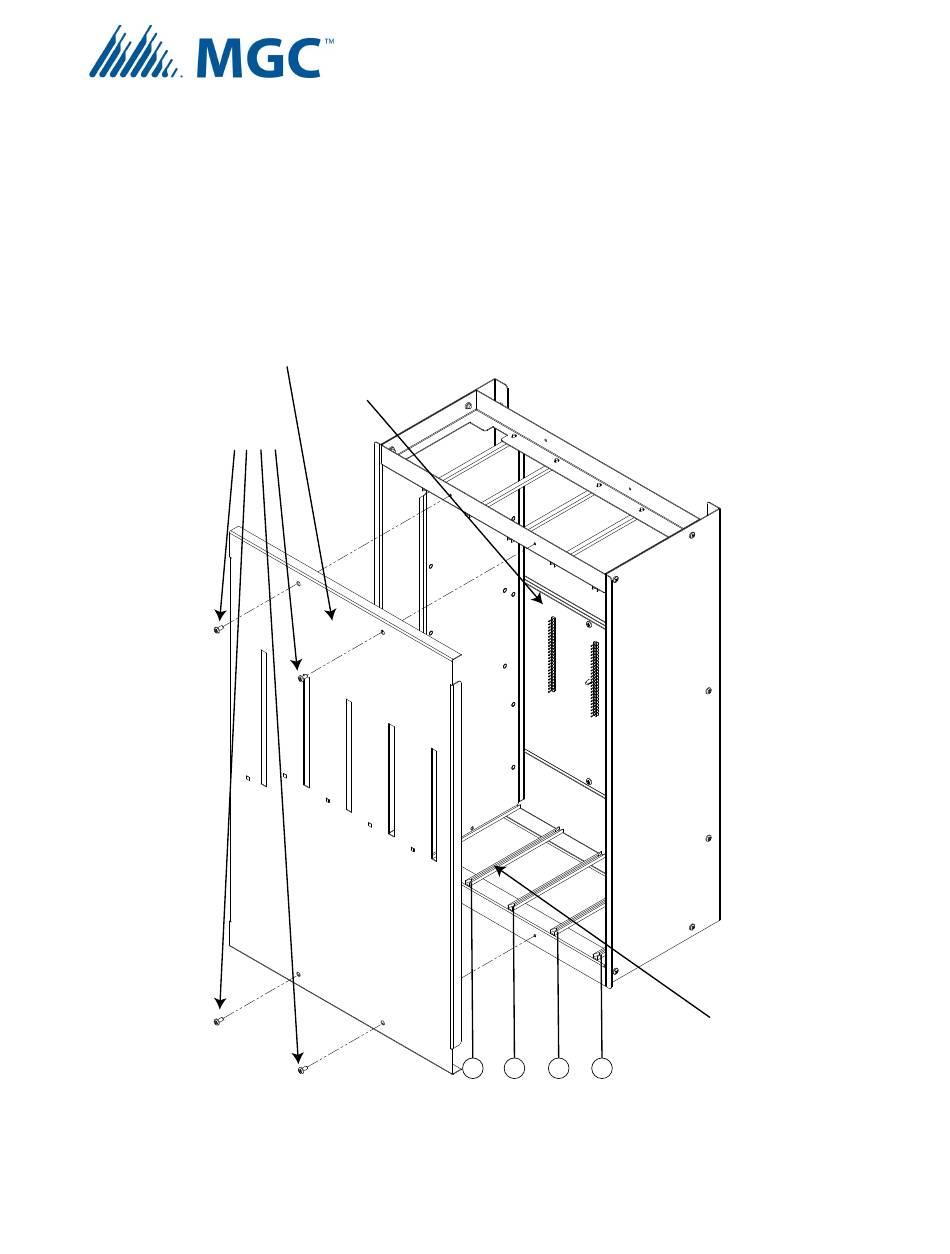

QMB-5000N Audio Motherboard and Card Cage
Deadfront
Backplane
Audio Motherboard and
Amplifier Guide Rails
1
2
3
4
Amplifier Slot Positions
LT-6752 Rev 0 August 2023 Page 1 of 3
QMB-5000N
Card Cage
