Stone Deaf FX RISE & SHINE Quick Start Manual

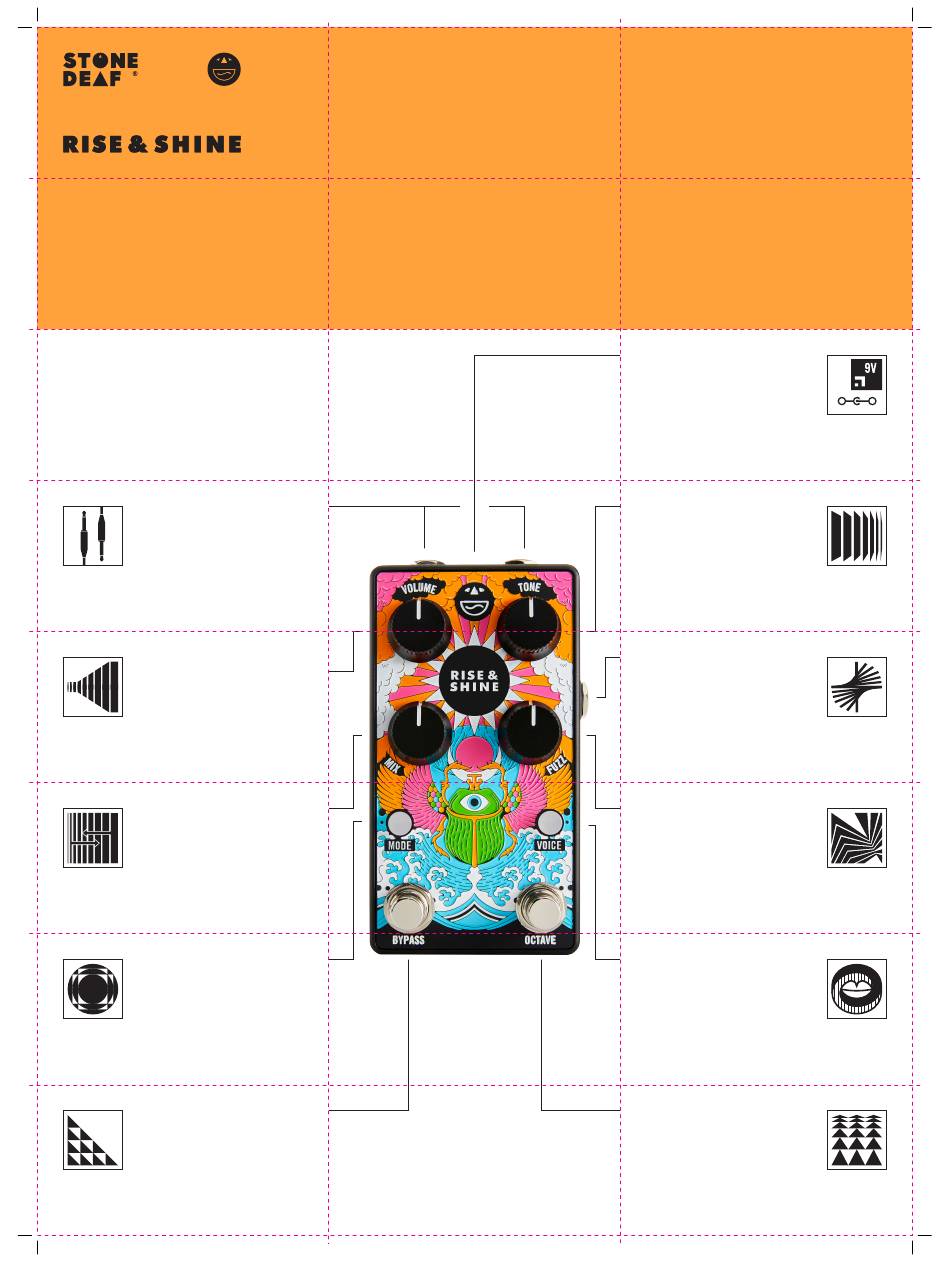

FUNCTION
OVERVIEW:
INPUTS: Mono Input and outputs
applicable for any instrument.
Recommended to use DI for Non Guitar
Inputs to reduce noise.
Input impedence: 470K
Output impedence: 150R
VOLUME: increases & decreases the master
volume of the pedal.
Interacts with the mix & fuzz knob.
MIX: increases clean bypass signal mix (Dry
signal) from 0-100%. Great for bass guitars
or reinforcing clean tones with fuzz / octave.
Tip: use this knob to mix in stacked pedals to
get different tones.
Please note when increasing the clean
bypassed signal there will be a volume drop
so compensate with the volume control.
MODE: Select from 5 modes
of operation by pressing mode:
Orange = Standard Mode
Green = Momentary Octave Mode
Cyan = Momentary Bypass Mode
Magenta = Standard Division Mode
White = Custom Division Mode
BYPASS: True bypass optical relay switching
for reliable switching with
soft touch function.
Good for 10 million switches.
Meet RISE & SHINE, the pedal that
marries vintage charm with
contemporary excitement. It
effortlessly blends classic octave
up fuzz and dynamic octapulse
tremolo vibrato to open up new
soundscapes. Its user-friendly
interface ensures you have
complete control to explore and
shape your unique sonic palette.
Rise & Shine is your gateway to a
world of musical possibilities,
where tradition meets innovation
in perfect harmony.
StoneDeafFX.com
POWER INPUT: 9V 100mA Minimum.
We only recommend isolated power
supplies. We do not recommend daisy chain
power supplies, these are non isolated.
TONE: changes the high-pass ratio of the
treble & the low-pass ratio of the bass
response.
Clockwise = Treble
Central = Middle
Counter-clockwise = Bass
Its a hybrid see saw type EQ section!
EXPRESSION / TAP: the expression input
controls the Rate of the octapulse tremolo
/vibrato effect. It also doubles as a remote
switch for tap tempo.
Please note polarities:
TAP SWITCH =
T= Switch / S = Ground
EXPRESSION =
T = Wiper / R = 3v3 / S = Ground
FUZZ: controls the amount of fuzz
saturation from distortion when minimum to
saturated fuzz tone.
User tip: roll off guitar volume for responsive
fuzz tones.
VOICE: voice changes two different tonal
voices of the fuzz and octave:
Bright tone = Orange
Fat tone = Blue
OCTAVE: analog octave up effect for
standard and momentary functions.
Tip: neck pickup allows for classic octave up
effect, think SRV, Jack White tones. Works
amazing with Tele's and Holobodies as well
as Strats and is perfect to cut through as a
lead guitar tone.
