Johnny Vac JVDHUM190 User Manual

Commercial dehumidifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

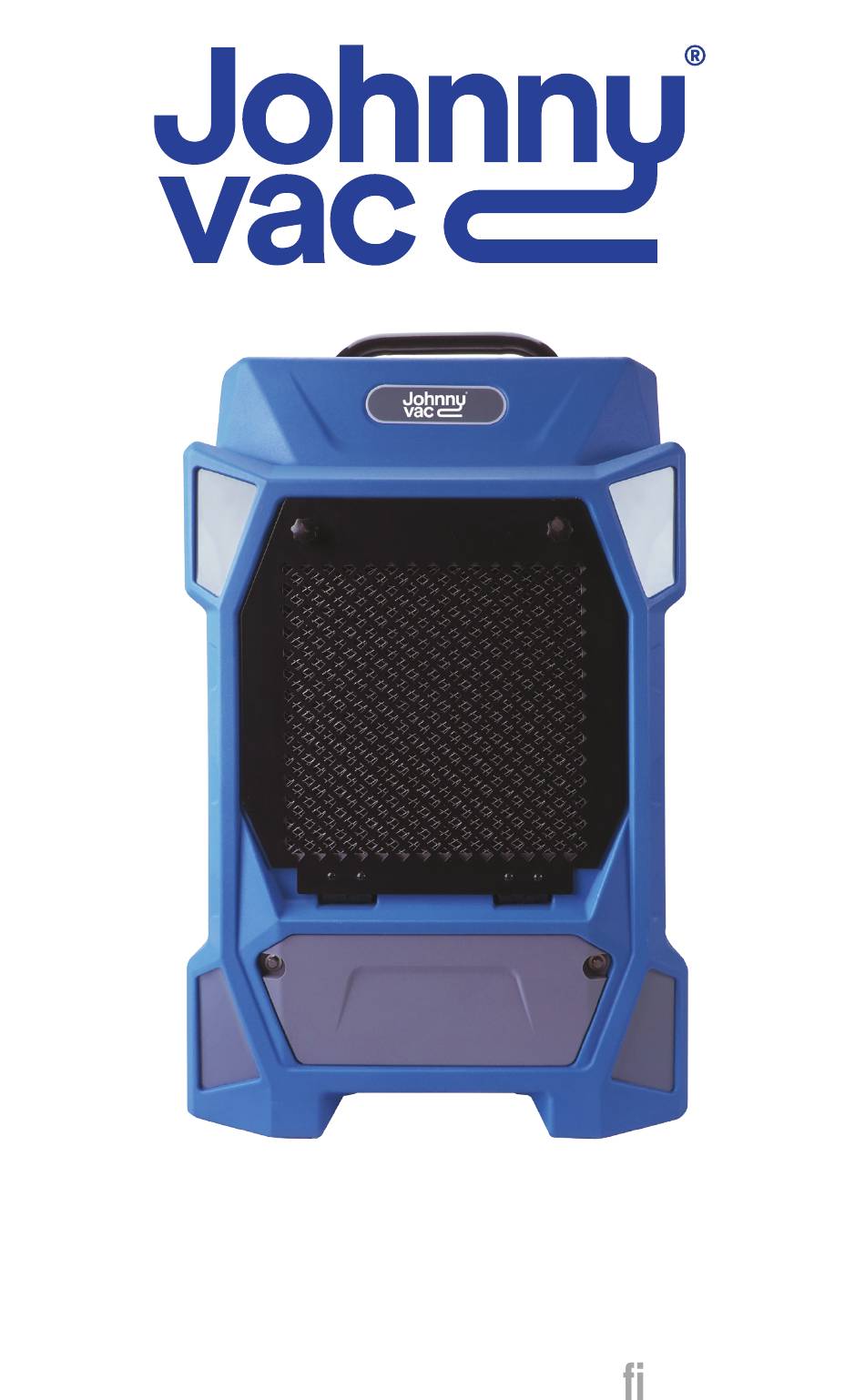

U S E R G U I D E
JVDHUM190
Commercial Dehumidi er

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JVDHUM190 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Johnny Vac JVDHUM190

  • Page 1 U S E R G U I D E JVDHUM190 Commercial Dehumidi er...
  • Page 2 All units sold by Johnny Vac have a user manual that is an integral part of the device sold. Please read this instruction manual carefully before using your device. Photos are included in this manual to help you visualize the informations.
  • Page 3 JVDHUM190 User Guide - 3 -...

  • Page 4: Before Starting

    For further information, refer to the USER MANUAL, SERVICE MANUAL, and similar resources. Service personnel are required to carefully read the USER MANUAL and SERVICE MANUAL before operating the dehumidifier. JVDHUM190 User Guide - 4 -...

  • Page 5: Safety Precautions

    • Component parts are designed for propane and are non-incendiary and non-sparking. Component parts should only be replaced with identical repair parts. • FAILURE TO ABIDE BY THIS WARNING COULD RESULT IN AN EXPLOSION, DEATH, INJURY, AND PROPERTY DAMAGE. JVDHUM190 User Guide - 5 -...
  • Page 6 • Only use the recommended methods for defrosting and cleaning the appliance, and avoid any other means. • Store the appliance in a room without any continuously operating sources, such as open flames, operating gas appliances, or operating electric heaters. JVDHUM190 User Guide - 6 -...
  • Page 7 Prior to performing any work on the refrigerating system, the following precautions should be taken: 2.2.2 Work Procedure All work should be carried out following a controlled procedure to minimize the presence of flammable gases or vapors. JVDHUM190 User Guide - 7 - - 7 -...
  • Page 8 When replacing electrical components, ensure that they are suitable for the intended purpose and meet the correct specifications. Always follow the manufacturer's maintenance and service guidelines. If there are any uncertainties, consult the manufacturer's technical department for assistance. JVDHUM190 User Guide - 8 -...
  • Page 9 Install the unit in rooms which exceed 4 m². Do not install the unit in a place where in ammable gas may leak. NOTE! The manufacture may provide other suitable example or may provide additional information about the refrigerant odour. JVDHUM190 User Guide - 9 -...

  • Page 10: Specifications

    S P E C I F I C A T I O N S DEHUMIDIFIER Model : JVDHUM190 Voltag e & Hertz: AC115V / 60Hz Rated Input Current: 6.8A @80°F, 60% RH MAX. Input Current: 8.5A Refrigerant Charge: R32/13.06oz Dehumidify Capacity: - 95 Pints/Day @80°F, 60% RH...
  • Page 11 C O M P O N E N T S F R O N T Foldable Handle Air-inlet grille Wheel Quick pump access JVDHUM190 User Guide - 11 -...
  • Page 12 C O M P O N E N T S B A C K Control Panel Latch Outlet Water Hose Connector Label Area Winder JVDHUM190 User Guide - 12 -...

  • Page 13: Control Panel

    C O N T R O L P A N E L ADD BUTTON TIMING BUTTON WATER FULL INDICATOR DEFROSTING INDICATOR PURGE BUTTON (MANUAL DRAINAGE) MINUS BUTTON POWER BUTTON DISPLAY SCREEN JVDHUM190 User Guide - 13 -...

  • Page 14: Device Operation

    1 to 24 hours, with each step being 1 hour. The cycle for timing settings is as follows: 01 - 02 - 03 - 04 - 05... - 23 - 24 - 00 - 01 - 02... JVDHUM190 User Guide...
  • Page 15 - When the humidity of the air inlet is equal to or lower than the setting humidity data -3%RH, the compressor will stop working immediately, and the fan will stop working 1 minute later. JVDHUM190 User Guide - 15 -...
  • Page 16 2. During transportation and storage, keep the machine in an upright position. 3. When storing multiple machines in a warehouse, stack them to save space while ensuring stability and preventing damage. JVDHUM190 User Guide - 16 -...

  • Page 17: Troubleshooting Guide

    Error Code : E5 Failure of the 4-way valve Replace the valve Cautions: If the unit malfunctions, immediately turn off the unit and unplug it. Please contact your distributor for service-related issues. JVDHUM190 User Guide - 17 -...
  • Page 20 Your specialist in vacuum cleaners and maintenance solutions PARTS, ACCESSORIES & VACUUM BAGS VISIT OUR WEBSITE AT WWW.JOHNNYVAC.COM CONGRATULATIONS & THANK YOU for having chosen one of our product. ATTENTION Do not return the unit to the retailer before having spoken with us. Our most precious wish is that you really love your vacuum cleaner! In case of problems, contact our experts at 1 800 361-2043...
